Quick Details
-
Model Number:
-
WP01, WP-01
-
Type:
-
wheelchair conversion kit
-
Product name:
-
Fast speed handcycle electric wheelchair trailer
-
Motor:
-
Brushless Hub Motor
-
Power:
-
350W
-
Speed:
-
25Km/H
-
Battery:
-
36V 12Ah Lithium battery
-
Warranty:
-
2 Years
-
Runnging range:
-
35KM
-
Wheel size:
-
16 inch
-
Certification:
-
CE
Quick Details
-
Properties:
-
wheelchair conversion kit
-
Place of Origin:
-
China
-
Brand Name:
-
MUNIU POWER
-
Model Number:
-
WP01, WP-01
-
Type:
-
wheelchair conversion kit
-
Product name:
-
Fast speed handcycle electric wheelchair trailer
-
Motor:
-
Brushless Hub Motor
-
Power:
-
350W
-
Speed:
-
25Km/H
-
Battery:
-
36V 12Ah Lithium battery
-
Warranty:
-
2 Years
-
Runnging range:
-
35KM
-
Wheel size:
-
16 inch
-
Certification:
-
CE

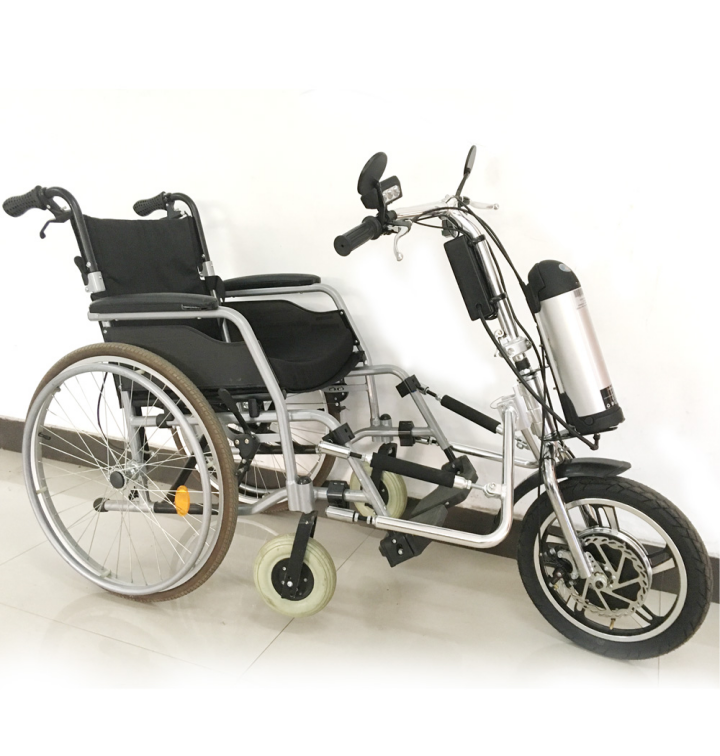

Electric handcycle wheelchair conversion kit
4 points -support provides more stability !
This electric handcycle is for manual wheelchairs converted to electric wheelchairs . It's detachable when you don't need a power assistance .
It is compatible with almost all wheelchairs without the need for any special adapters.
This handcycle can accommodate chairs of seat width 40 cm to 65 cm
The common frame tube diameter listed bellow :
1 inch(25.4mm)
1/8inch(28.6mm)
1.2 inch(30.5mm)
1.25 inch (32mm)
If your tubing is a different diameter, please order customized clamps from seller.
Before ordering, we just need to confirm :
1. Tube diameter of your wheelchair
2. Type of Charger plug
Parameter :
|
Item |
Electric wheelchair Handcycle |
|
Model Number |
WP-01 |
|
Brand |
WISDOM POWER |
|
Motor |
36V 350W gearless brushless Aluminum-alloy hub motor |
|
Tire |
16" x 2.125" pneunatic tire |
|
Fork |
16" Steel |
|
Brake |
Eletronic and Disc brake |
|
Handle bar |
6061 Aluminum alloy |
|
Frame |
6061 Aluminum alloy |
|
Max Speed |
25km/h |
|
Max Reverse speed |
8km/h |
|
Battery |
36V 12 Ah Lithium battery (weight 4.4 Kg) |
|
Range |
≥ 35 km ( 10% hills, 70kg carry ), bigger battery offers longer range. |
|
Charger |
AC 85V-240V 50Hz/60Hz 2A (CE Rohs Cert. ) |
|
Charging time |
5 -6 Hours |
|
Max loading weight |
100KG |
|
Hill-holding |
15° |
|
Obstacle crossing |
≥80mm |
|
Cross bumps ability |
80mm |
|
Climbing ability |
≤8° |
|
Min turning radius |
1200mm |
|
Net weight |
13KG without battery (17kg with battery ) |
|
Packing weight |
17 KG without battery ( 21 kg with battery) |
|
Packing size |
92x52*30 CM Carton (80% CKD ) |
|
20FT Container Qty |
200 |
|
40HQ Container Qty |
450 |
3. Model
1. Foldable with quick-release .
2. Easily attach or detach to wheelchair .
3. All the accessories are from brand factories . LED headlight displays Current Speed ,Battery power , Distance .
4. All the wires are well protected . Two in one brake cable connected to disc brake ,both left and right hand could brake the bike.
5. The front casters could be lift higher by rotating the upper wing .
44r4
ils
| 4.Our factory& Lab |
| 5.Certificate |
WP-01 , WP-02 with CE/EMC/ROHS certificates and patents .
