Quick Details
-
Model Number:
-
SD16
-
Dimension(Long * Breadth * High):
-
4990*3440*3110
Quick Details
-
Machine Weight:
-
16400 KG
-
Dozing Capacity:
-
7.5m³, 5m³, 7.8m³, 5.4m³, 4.3m³, 4m³, 8.6m³, 6.5m³, 6m³, 10m³, 4.5m³
-
Place of Origin:
-
Shandong,China
-
Model Number:
-
SD16
-
Dimension(Long * Breadth * High):
-
4990*3440*3110
-
Overview Key attributes
SD16 STANDARD BULLDOZER MAIN TECHNICAI PARAMETERS Model number SD16 Length × width × height (mm)
(without ripper)4990×3440×3110 Service weight (kg)
(without ripper)16400 Engine type WD10G178E25
WP10G178E355Power/rated revolutions
(kw/rpm)131/1850 Grounding length and specific grounding pressure
(MPa)2430 0.067 Climbing performance
(° )30 Number of track plates
(each side)37 Track plate width
(mm)510(560,610) Track center distance
(mm)1880 Chain track pitch
(mm)203.2 Number of supporting wheels
(each side)2 Number of wheels supported
(each side)6 Blade type Straight tilting shovel Blade length x height
(mm)3440×1135 Blade capacity (m3) 4.5 Blade lift height
(mm)1095 Blade depth
(mm)540 Ripper type tridentate Depth of soil loosening
(mm)570 The ripper raises the height
(mm)600 Forward gear speed (km/h) F1:0~3.29 F2:0~5.82 F3:0~9.63 Reverse all gears (km/h) R1:0~4.28 R2:0~7.59 R3:0~12.53 -

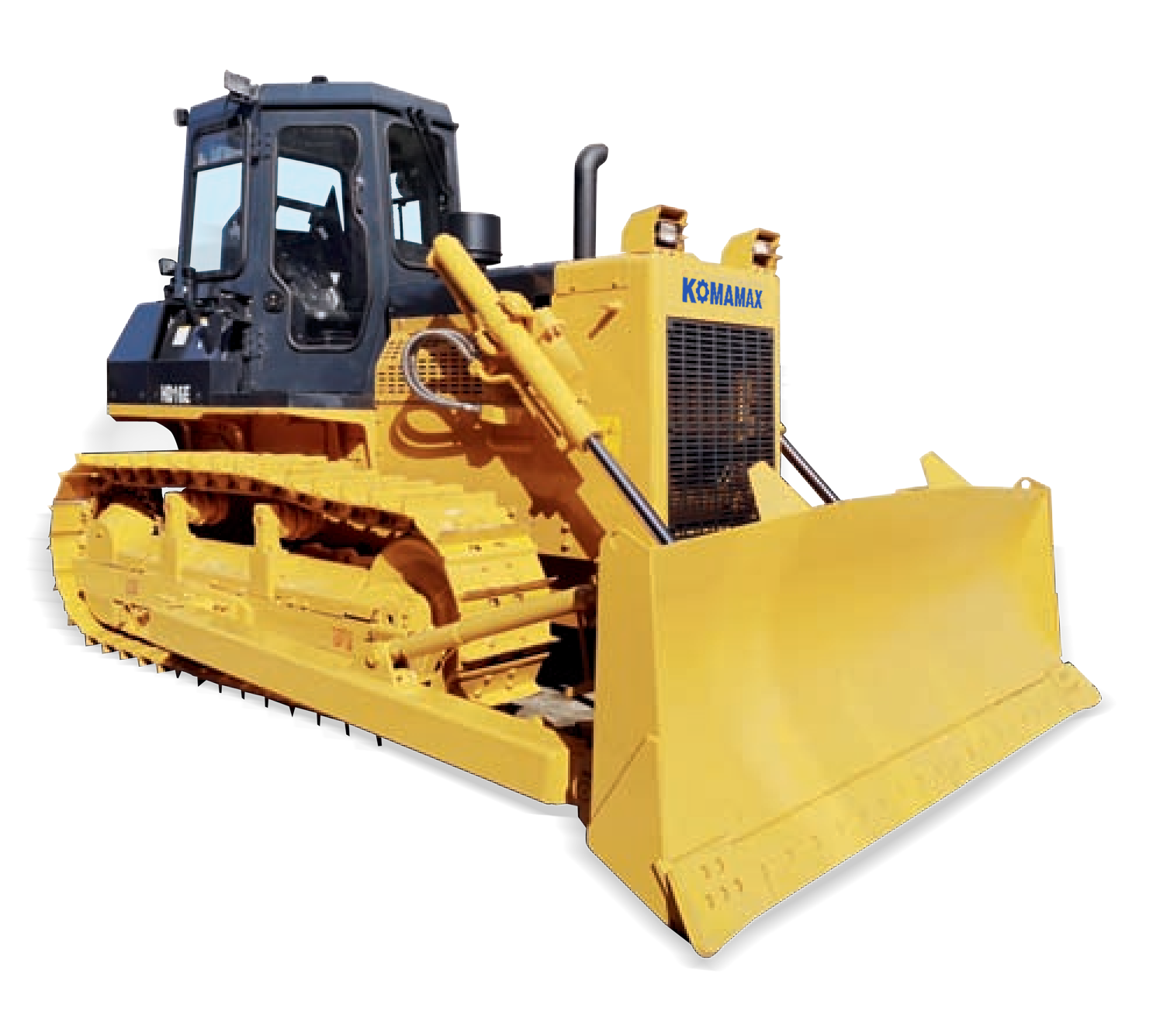

SD16 hydraulic drive series bulldozer, with high scientific and technological content, advanced and reasonable design, strong power, high production efficiency, can adapt to more harsh working environment, easy maintenance.
Suitable for road, railway, mine, airport and other ground pushing, excavation, backfill earth and stone and other bulk material operations, is national defense engineering, mine construction, urban and rural roads and other construction and water conservancy construction indispensable construction machinery. -
