Quick Details
-
Application:
-
Outdoor
-
Design Style:
-
Industrial
-
Type:
-
scaffolding
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
N/A
-
Model Number:
-
Frame
-
Material:
-
Q345 or Q235
-
Diameter:
-
42.7 mm
-
Thickness:
-
2.4 mm
-
Surface finish:
-
HDG, powder coated
-
Experience:
-
20+ Years
-
Packing:
-
Pallet
-
Advantage:
-
Stable
-
Certificate:
-
ISO
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design, 3D model design
-
Application:
-
Outdoor
-
Design Style:
-
Industrial
-
Type:
-
scaffolding
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
N/A
-
Model Number:
-
Frame
-
Material:
-
Q345 or Q235
-
Diameter:
-
42.7 mm
-
Thickness:
-
2.4 mm
-
Surface finish:
-
HDG, powder coated
-
Experience:
-
20+ Years
-
Packing:
-
Pallet
-
Advantage:
-
Stable
-
Certificate:
-
ISO
Product Description

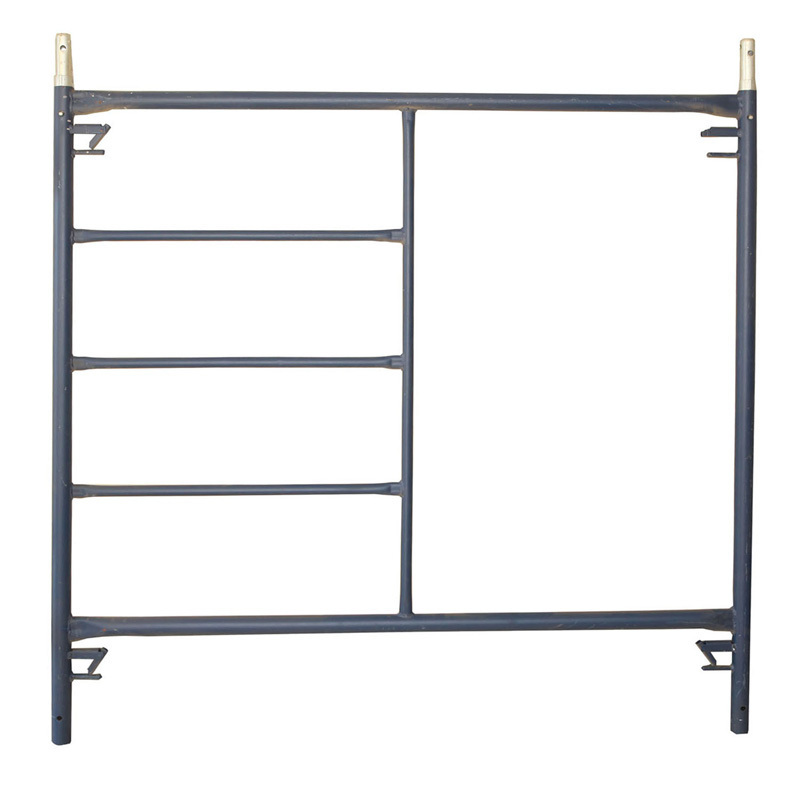

Frame Scaffolding is a type of light-duty scaffolding that is easy to move. A standard set of frames typically consists of two welded main frames, two pairs of cross braces, and four joint pins. Caster wheels can be installed at the bottom of the frame, making it a type of mobile scaffolding that can be moved with ease.
As all components are galvanized and built for increased safety, service life, and resistance to damage, they are perfect for all types of applications and industries.
The Ringlock system can accommodate up to eight connections of combined ledger and braces. Each of these connections can safely carry a load of 11.12kN (2500LBS).
The Ringlock system can accommodate up to eight connections of combined ledger and braces. Each of these connections can safely carry a load of 11.12kN (2500LBS).
However, the total sum of the ledger loads must not exceed the recommended leg load for the given bracing situation.
Due to our standards and ledgers are fully welded by machine, the products are clean, flat and seamless. In addition, Our welders are well trained by AWSD1.1 to standardize Butt Joint welding, Semi-Auto Fillet Welding and Auto Fillet Welding.
The full production followed purchased material, cutting tubes, welding, hot-dip galvanized, cleaning and packing. Each step had procedures or guidance for them.
Due to our standards and ledgers are fully welded by machine, the products are clean, flat and seamless. In addition, Our welders are well trained by AWSD1.1 to standardize Butt Joint welding, Semi-Auto Fillet Welding and Auto Fillet Welding.
The full production followed purchased material, cutting tubes, welding, hot-dip galvanized, cleaning and packing. Each step had procedures or guidance for them.
Metec can supply a full set of Ringlock scaffold accessories, and your customized products are also welcomed.
Specification
|
Diameter:
|
42.7 mm
|
|
Thickness:
|
2.4 mm
|
|
Material:
|
Q345 or Q235
|
|
Finished:
|
HDG, Power Coated
|
