1.Superior wear resistance, impact resistance and corrosion resistance
2.Excellent flatness and temperature resistance up to 1380℃
3. Excellent oxidation resistance
4. Good dimensional control of complex shapes
5.Easy installation
6.Longer service life ( about 5 times more than that of alumina ceramic and 6 times more than that of polyurethane)
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ZHIJING
-
Product name:
-
Silicon carbide ceramic wear-resistant bottom flow port
-
Color:
-
Black
-
Size:
-
Customized Size
-
Bulk Density(g/cm3):
-
3.02g/cm3
-
Temperature:
-
≤1380℃
-
Porocity:
-
<0.1%
-
Raw material:
-
Silicon Carbide
-
New Mohs hardness:
-
13
-
Certificate:
-
ISO9001
Quick Details
-
Material:
-
Silicon Carbide
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
Silicon carbide bottom flow port
-
Brand Name:
-
ZHIJING
-
Product name:
-
Silicon carbide ceramic wear-resistant bottom flow port
-
Color:
-
Black
-
Size:
-
Customized Size
-
Bulk Density(g/cm3):
-
3.02g/cm3
-
Temperature:
-
≤1380℃
-
Porocity:
-
<0.1%
-
Raw material:
-
Silicon Carbide
-
New Mohs hardness:
-
13
-
Certificate:
-
ISO9001
Products Description
Silicon Carbide SISIC Ceramic Cone Nozzle
The service life of silicon carbide product is 7-10 times that of alumina poduct. Silicon carbide ceramics are the industrial ceramics with the highest hardness which can be matured and applied at present. Alumina ceramics and zirconia ceramics have been gradually replaced in many working conditions. Silicon carbide ceramics have strong plasticity and can produce many kinds of special-shaped parts and large size parts.
RBSC (SiSiC) has high strength, high hardness, high temperature resistance, wear resistance, corrosion resistance, oxidation resistance, thermal shock resistance, good thermal shock resistance, good thermal conductivity, high thermal efficiency, etc. Our Products are widely applied in the Mining industry, power plant, desulfurization dust removal equipment, high temperature ceramic kiln, steel quenching furnace, mine material grading cyclone, etc., silicon carbide cone liner, silicon carbide elbow, silicon carbide cyclone liner, silicon carbide tube, silicon carbide spigot, silicon carbide vortex liner, silicon carbide inlet, silicon carbide hydrocyclone liner,large size hydrocyclone liner, (SiSiC) product categories include Desulfurization spray nozzle, RBSiC (SiSiC) burner nozzles, RBSic(SiSiC) radiation pipe, RBSiC (SiSiC) heat exchanger, RBSiC (SiSiC) beams, RBSiC (SiSiC) rollers, RBSiC (SiSiC) lining ect.
Material Performance
|
Item
|
Unit
|
Data
|
|
|
|
|||
|
|
|
RBSIC（SISIC）
|
NBSIC
|
SSIC
|
RSIC
|
|||
|
SiC content
|
%
|
85
|
80
|
99
|
98.5
|
|||
|
Free Silicon content
|
%
|
15
|
0
|
0
|
0
|
|||
|
Max service temperature
|
℃
|
1380
|
1550
|
1600
|
1650
|
|||
|
Density
|
g/cm3
|
3.02
|
2.72
|
3.10
|
2.60-2.74
|
|||
|
Open porosity
|
%
|
0
|
12
|
0
|
15
|
|||
|
Bending strength 20℃
|
Mpa
|
250
|
160
|
380
|
100
|
|||
|
1200°C
|
Mpa
|
280
|
180
|
400
|
120
|
|||
|
Modulus of elasticity 20°C
|
Gpa
|
330
|
220
|
420
|
240
|
|||
|
1200°C
|
Gpa
|
300
|
/
|
/
|
200
|
|||
|
Thermal conductivity 1200℃
|
W/m.k
|
45
|
15
|
74
|
10
|
|||
|
Coefficient of thermal expansion
|
K-1x10-6
|
4.5
|
5.0
|
4.1
|
4.8
|
|||
|
HV
|
kg/mm2
|
2500
|
2500
|
2800
|
/
|
|||
Details Images

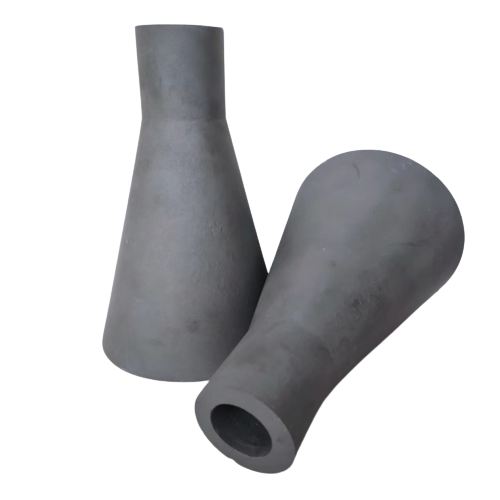

Silicon Carbide SISIC Ceramic Cone Nozzle
is a type of component that protects equipment. The use of silicon carbide liner reduces equipment wear, vibration and noise, and has an anti-corrosion effect.
The use of
Silicon Carbide SISIC Ceramic Cone Nozzle
can also facilitate the maintenance of mechanical equipment, simplify the structure of equipment and manufacturing process. The wear – resistant silicon carbide bushing plays an important role in practical work.
We provide
Silicon Carbide SISIC Ceramic Cone Nozzle
to form cyclone liners to many customers in the power generation industry. We also provide wear plates to many industrial customers for their high abrasion applications. Our Reaction bonded silicon carbide is a staple to providing long service lives to our customers.
