The machine made up of main engine, auxility engine and electric-box, featuring winnowing without sieve or mesh, ever granule size, continuous operation, etc. The machine reaches advanced world-level and is widely used for material grinding in chemical and foodstuff industries, etc.
- Product Details
- {{item.text}}
Quick Details
-
Range of Spindle Speed(r.p.m):
-
2900 - 4500 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Wantong
-
Voltage:
-
220V OR 380V
-
Dimension(L*W*H):
-
1000*800*1600(mm)
-
Weight (KG):
-
550 KG
-
Marketing Type:
-
IN STOCK
-
Weight:
-
Different type have different weigh
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
machine:
-
herbal powder grinding
-
material:
-
steel wire
-
spindle speed:
-
4200(r/min)
-
feed size:
-
<10(mm)
-
crusher size:
-
80-600(mesh)
-
discharging motor:
-
0.75(kw)
-
draught fan:
-
11(kw)
-
Power(W):
-
22(kw)
Quick Details
-
Output (kg/h):
-
20 - 150 kg/h
-
Feeding Size (mm):
-
5 - 10 mm
-
Output Size (mesh):
-
80 - 600 mesh
-
Range of Spindle Speed(r.p.m):
-
2900 - 4500 r.p.m
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Wantong
-
Voltage:
-
220V OR 380V
-
Dimension(L*W*H):
-
1000*800*1600(mm)
-
Weight (KG):
-
550 KG
-
Marketing Type:
-
IN STOCK
-
Weight:
-
Different type have different weigh
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
machine:
-
herbal powder grinding
-
material:
-
steel wire
-
spindle speed:
-
4200(r/min)
-
feed size:
-
<10(mm)
-
crusher size:
-
80-600(mesh)
-
discharging motor:
-
0.75(kw)
-
draught fan:
-
11(kw)
-
Power(W):
-
22(kw)

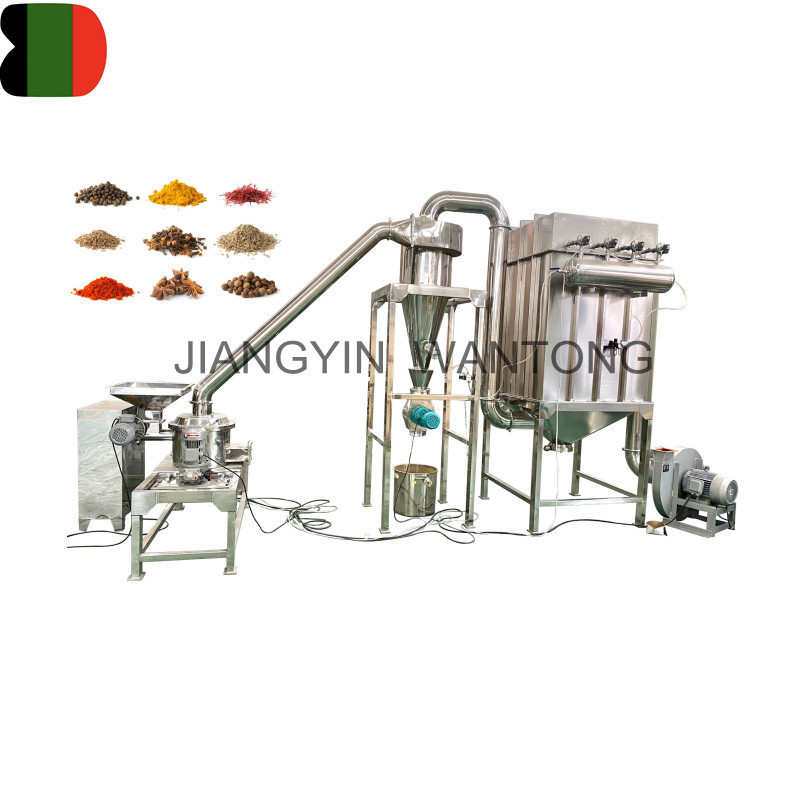

WFJ Air classifier herb mill pulverizer flour grinder machine black pepper grinding machine
WFJ SERIES SUPER PULVERIZER
Features
Materials are transported into smashing mesh via screw conveyor, then crushed by the high-speed revolving razor blade. With the negative pressure, materials will be transported into cyclone separator, ejected by pass-breezing machine. Without the powder float in whole producion line the powder float in the sky.
Machine Pics
Technical Parameters:
|
Model
|
WFJ-10
|
WFJ-15
|
WFJ-20
|
WFJ-30
|
WFJ-60
|
WFJ-80
|
WFJ-100
|
||||||
|
Production Capacity (kg)
|
10~50
|
50~100
|
80~200
|
200~400
|
400~800
|
500~1000
|
600~1200
|
||||||
|
Feeding size (mm)
|
<5
|
<10
|
<10
|
<12
|
<12
|
<12
|
<12
|
||||||
|
Crushing fineness (mesh)
|
80-600
|
|
|
|
|
|
|
||||||
|
Motor power (kw)
|
12
|
18.37
|
35.8
|
54
|
77.5
|
96
|
138
|
||||||
|
Spindle speed (rpm)
|
4000
|
5800
|
4200
|
3800
|
3200
|
2800
|
2000
|
||||||
|
Weight (kg)
|
500
|
1000
|
1200
|
1800
|
2500
|
3000
|
4000
|
||||||
|
Overall dimension
(L*W*H)(mm) |
1700x1800x2200
|
4500x1250x2700
|
6000x1250x2900
|
7100x1300x3650
|
8000x2300x4500
|
8500x2500x4600
|
10000x2800x5000
|
||||||
