Quick Details
-
Measurement Range:
-
1.3000-1.7000(nD)
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Drawell
-
Model Number:
-
DigiPol-R Series
-
Min. Div.:
-
-
-
Brix Range:
-
0-100%(Brix)
-
Range:
-
1.3000-1.7000(nD)
-
Fine degrees:
-
±0.0001(nD)
-
Precision:
-
±0.0002
-
Brix range:
-
0-100%(Brix)
-
Brix accuracy:
-
±0.1%/ 0.05%/ 0.01%(Brix)
-
Temperature control mode:
-
avaible Built-in Peltier
-
Temperature control range:
-
RT/ 5~65℃/ 5~90℃
-
Light source:
-
LED light source
-
Wave length:
-
589nm
-
Test method:
-
High-resolution linear CCD
Quick Details
-
Size:
-
-
-
Weight:
-
-
-
Measurement Accuracy:
-
-
-
Measurement Range:
-
1.3000-1.7000(nD)
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Drawell
-
Model Number:
-
DigiPol-R Series
-
Min. Div.:
-
-
-
Brix Range:
-
0-100%(Brix)
-
Range:
-
1.3000-1.7000(nD)
-
Fine degrees:
-
±0.0001(nD)
-
Precision:
-
±0.0002
-
Brix range:
-
0-100%(Brix)
-
Brix accuracy:
-
±0.1%/ 0.05%/ 0.01%(Brix)
-
Temperature control mode:
-
avaible Built-in Peltier
-
Temperature control range:
-
RT/ 5~65℃/ 5~90℃
-
Light source:
-
LED light source
-
Wave length:
-
589nm
-
Test method:
-
High-resolution linear CCD

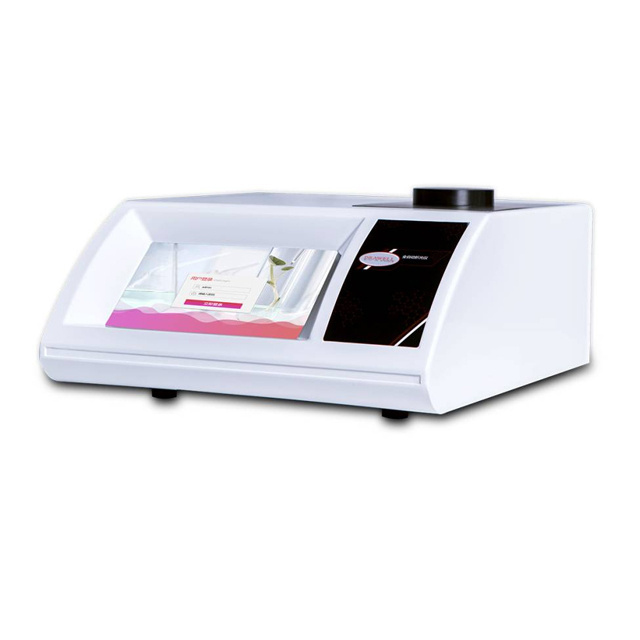

Automatic Refractometer
-Digipol-R Series
Brief Introduction
Digipol-R is equipped with a high performance linear CCD sensor. Through high-speed and high precision signal acquisition, analysis and processing technology, the Digipol-R is equipped with a semiconductor Parte super temperature control system. It can measure the refractive index (Nd) and the mass fraction of sugar solution (Brix) of transparent, translucent, dark and viscous liquid with high accuracy and efficiency.
Fields of Use
* Automatic refractometer is widely used in petroleum industry, oil industry, pharmaceutical industry, food industry, daily chemical industry, sugar industry, etc. It is also one of the commonly used equipment in schools and related scientific research units.
* Food industry: quality control of raw materials, intermediates and final products; The concentration of dry matter, solids, and sugars; Purity control for products of sugar, dessert, beverage, dairy, chocolate and coffee, oil and fat industries.
* Cosmetics industry: determination of refractive index of essential oils and spices; Determine the fatty acid content of soap and fragrance ingredients.
* Chemical and petrochemical industries: determination of refractive index of raw materials and analytical reagents; Purity control;
* Determination of refractive index of petroleum products; Determine the concentration of the cooled lubricating oil.
Main Features
1: Built-in Parpaste temperature control, improve accuracy and stability;
2: China's first double temperature control, sapphire prism;
3: LED cold light source instead of the traditional sodium light lamp and halogen tungsten lamp;
4: Compliance with 21CFR Part 1 audit trail, pharmacopoeia and electronic signature;
5: Support network printing, support data statistical retrieval;
6: Multi-level authority management, authority can be freely configured;
7: 7 "touch color screen, user-friendly operation interface;
8: The whole machine has passed TART and CE certification.
|
Model
|
DigiPol-R200
|
DigiPol-R300
|
DigiPol-R500
|
DigiPol-R600
|
|
Range
|
1.3000-1.7000(nD)
|
1.3000-1.7000(nD)
|
1.30000-1.70000(nD)
|
1.30000-1.70000(nD)
|
|
Resolution
|
0.0001(nD)
|
0.0001(nD)
|
0.00001(nD)
|
0.00001(nD)
|
|
Precision
|
±0.0002
|
±0.0002
|
±0.00003
|
±0.00002
|
|
Brix range
|
0-100%(Brix)
|
0-100%(Brix)
|
0-100%(Brix)
|
0-100%(Brix)
|
|
Brix accuracy
|
±0.1%(Brix)
|
±0.1%(Brix)
|
±0.05%(Brix)
|
±0.01%(Brix)
|
|
Test mode
|
Refractive index / sugar content or customized
|
Refractive index / sugar content or customized
|
Refractive index / sugar content / honey moisture / salinity or customized
|
Refractive index / sugar content / honey moisture / salinity or customized
|
|
Temperature control method
|
No
|
Built-in Peltier
|
Built-in Peltier
|
Built-in Peltier
|
|
Temperature control range
|
Room temperature
|
5℃-65℃
|
5℃-65℃
|
5℃-90℃
|
|
Temperature control stability
|
Room temperature
|
±0.03℃
|
±0.02℃
|
±0.01℃
|
|
light source
|
LED
|
LED
|
LED
|
LED
|
|
wavelength
|
589nm
|
589nm
|
589nm
|
589nm
|
|
Prism
|
sapphire
|
sapphire
|
sapphire
|
sapphire
|
|
Sample cell
|
stainless steel
|
stainless steel
|
Hastelloy
|
Hastelloy
|
|
Detection method
|
High-resolution linear CCD
|
High-resolution linear CCD
|
High-resolution linear CCD
|
High-resolution linear CCD
|
|
Display method
|
7 inch FTF color touch screen
|
7 inch FTF color touch screen
|
7 inch FTF color touch screen
|
7 inch FTF color touch screen
|
|
data storage
|
32G
|
32G
|
32G
|
64G
|
|
Output method
|
USB, RS232, RJ45, SD card, U disk
|
USB, RS232, RJ45, SD card, U disk
|
USB, RS232, RJ45, SD card, U disk
|
USB, RS232, RJ45, SD card, U disk
|
|
User Management
|
Yes/four-level authority management
|
Yes/four-level authority management
|
Yes/four-level authority management
|
Yes/four-level authority management
|
|
Audit trail
|
YES
|
YES
|
YES
|
YES
|
|
Electronic signature
|
YES
|
YES
|
YES
|
YES
|
|
Custom method library
|
YES
|
YES
|
YES
|
YES
|
|
Export file to verify high-level protection MD5
|
YES
|
YES
|
YES
|
YES
|
|
WIFI printing
|
YES
|
YES
|
YES
|
YES
|
|
Export in multiple file formats
|
PDF & Excel
|
PDF & Excel
|
PDF & Excel
|
PDF & Excel
|
|
Size
|
360*300*155mm
|
360*300*155mm
|
360*300*155mm
|
360*300*155mm
|
|
Power supply
|
220V / 50Hz
|
220V / 50Hz
|
220V / 50Hz
|
220V / 50Hz
|
|
Weight
|
5kg
|
5kg
|
5kg
|
5kg
|
Details Images
