Quick Details
-
Model Number:
-
RTD-PW-006
-
Product name:
-

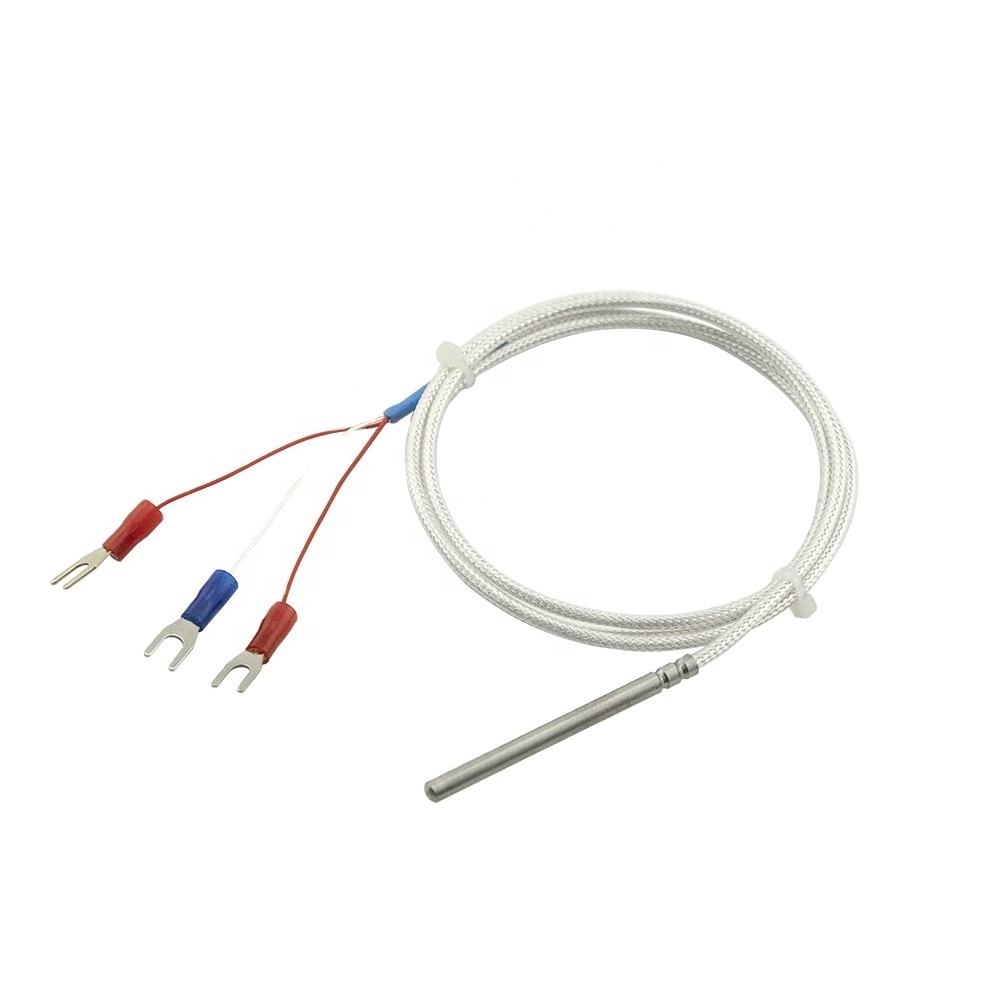

PT100 temperature sensor
-
Accuracy grade:
-
Class B, A, 1/3 DIN
-
Type:
-
PT100 / PT1000 (Customized Available)
-
Probe size:
-
4*30mm(Customized Available)
-
Lead material:
-
three-core silver-plated FEP shield wire
-
Temperature coefficient:
-
TCR=3850ppm/k
-
Thin Film size:
-
2.3mm* 2.1mm*0.9mm (length * width * height) line length 10mm
-
Long-term stability:
-
max. Ro-drift 0.04% after 1000 h at 500°C
-
Environmental conditions:
-
unhoused for dry environments only
-
Measuring current:
-
100Ω: 0.3 to 1.0 mA 500Ω: 0.1 to 0.7 mA 1000Ω: 0.1 bis 0.3 mA
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
MICC
-
Model Number:
-
RTD-PW-006
-
Product name:
-
PT100 temperature sensor
-
Accuracy grade:
-
Class B, A, 1/3 DIN
-
Type:
-
PT100 / PT1000 (Customized Available)
-
Probe size:
-
4*30mm(Customized Available)
-
Lead material:
-
three-core silver-plated FEP shield wire
-
Temperature coefficient:
-
TCR=3850ppm/k
-
Thin Film size:
-
2.3mm* 2.1mm*0.9mm (length * width * height) line length 10mm
-
Long-term stability:
-
max. Ro-drift 0.04% after 1000 h at 500°C
-
Environmental conditions:
-
unhoused for dry environments only
-
Measuring current:
-
100Ω: 0.3 to 1.0 mA 500Ω: 0.1 to 0.7 mA 1000Ω: 0.1 bis 0.3 mA
|
Product model |
RTD-PW-006 |
|
Type |
PT100 / PT1000 (Customized Available) |
|
Accuracy grade |
Class B, A, 1/3 DIN |
|
Product name |
PT100 temperature sensor |
|
Lead material |
three-core silver-plated FEP shield wire |
|
Probe size |
4*30mm (Customized Available) |
|
Temperature range |
-70 °C to +500 °C (continuous operation) (temporary use to 550 °C possible) Tolerance class B:- 70 °C to + 500 °C Tolerance class A:-50°C to + 300 °C Tolerance class 1/3 DIN:0 °C to+ 150 "C |
|
RTD Thin Film origin |
Heraeus - Germany (Jumo/IST Availabe) |
|
Temperature coefficient |
TCR=3850ppm/k |
|
Thin Film size |
2.3mm* 2.1mm*0.9mm (length * width * height) line length 10mm |
|
Long-term stability |
max. Ro-drift 0.04% after 1000 h at 500°C |
|
vibration resistance |
at least 40g acceleration (10-2000HZ) depends on installation |
|
Insulation resistance |
> 100MQ at 20°C> 2MQ at 500°C |
|
Shock resistance |
at least 100g acceleration with 8ms half sine wave, depends on installation |
|
Self heating |
0.4KW/m W (at 0°C) |
|
Response time |
water current(v = 0.4 m/s): t 0.5 = 0.05s,t 0.9 = 0.15s . air stream (V= 2 m/s): t 0.5 =3.0s; t 0.9 = 10.0 s |
|
Environmental conditions |
unhoused for dry environments only |
|
Measuring current |
100Ω: 0.3 to 1.0 mA 500Ω: 0.1 to 0.7 mA 1000Ω: 0.1 bis 0.3 mA (self heating has to be considered) |
