Quick Details
-
Design Printing:
-
No printing
-
Material:
-
Acrylic Foam
-
Feature:
-
Heat-Resistant
-
Use:
-
Bag Sealing
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
3M
-
Model Number:
-
5952
-
Color:
-
Black
Quick Details
-
Adhesive:
-
Acrylic
-
Adhesive Side:
-
Double Sided
-
Adhesive Type:
-
Pressure Sensitive
-
Design Printing:
-
No printing
-
Material:
-
Acrylic Foam
-
Feature:
-
Heat-Resistant
-
Use:
-
Bag Sealing
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
3M
-
Model Number:
-
5952
-
Color:
-
Black

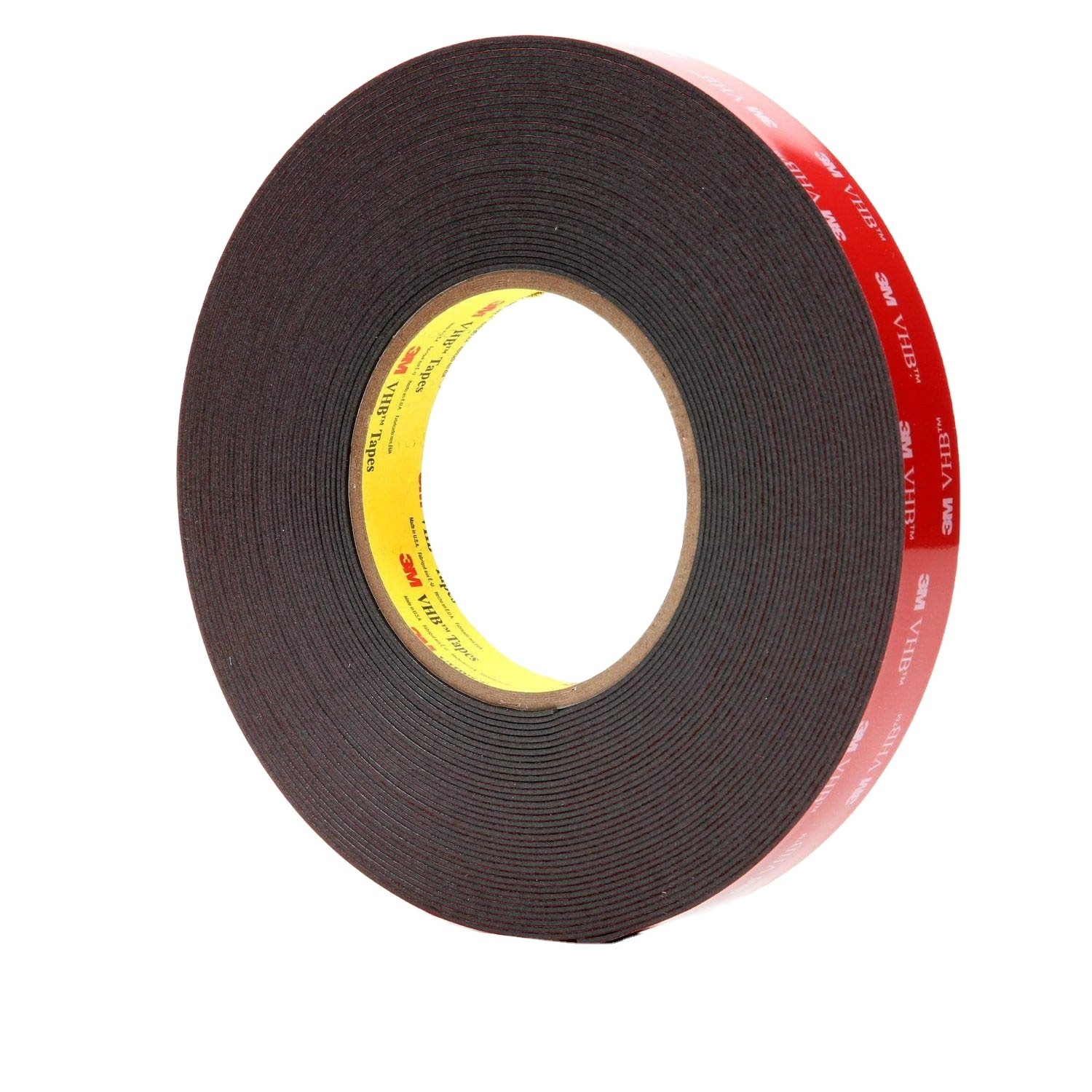

3M™ VHB™ Tape 5952 is a 0.045 inch (1.1 mm) thick black double coated acrylic foam tape with PE film liner. The modified acrylic adhesive on both sides bonds to a broad range of high, medium and medium/low surface energy substrates including metals, glass and a wide variety of plastics and paints, including many powder coated paints. The very conformable foam provides good contact between substrates even when they are slightly mismatched. 3M™ VHB™ Tape 5952 is part of the 5952 tape family. Each product in this family has modified acrylic adhesive and very conformable foam but varies in thickness, color and liner type.
- Fast and easy-to-use permanent bonding method provides high strength and long-term durability
- Virtually invisible fastening keeps surfaces smooth
- Can replace mechanical fasteners (rivets, welding, screws) or liquid adhesives
- Black or white, 0.045 in (1.1 mm), modified acrylic adhesive and very conformable acrylic foam core bonds to a wide variety of substrates including powder coated paints and irregular surfaces
- Eliminate drilling, grinding, refinishing, screwing, welding and clean-up
- Creates a permanent seal against water, moisture and more by offering better gap filling capabilities
- Pressure sensitive adhesive bonds on contact to provide immediate handling strength
- Allows the use of thinner, lighter weight and dissimilar materials
- Decorative material and trim
- Nameplates and logos
- Electronic displays
- Panel to frame
- Stiffener to panel
Typical Physical Properties
| Property | Values | Method | Notes | Test Name | |
|---|---|---|---|---|---|
| Thickness Tolerance | ±10 % | ||||
| Density | 590 kg/m³ | 37 lb/ft³ | ASTM D3574 | Foam with adhesive | |
| Color | Black | ||||
| Adhesive Type | Modified Acrylic | ||||
| Foam Type | Very Conformable Acrylic Foam | ||||
| Liner | PE Film | ||||
| Liner Color | Red (printed) | Primary |
