● Both supply fan and exhaust fan are built inside to bring in fresh air and exhaust out the stale indoor air as well, thus to keep indoor space in natural comfort.
● Built-in heat exchanger (rotary heat exchanger or
plate heat exchanger) transfers energy contained in
the outgoing indoor air to the coming fresh air, thus fresh air is precooled or preheated.
● Various functional sections such as filter section, cooling/heating section, humidifying section etc. can be combined together to meet different air treatment requirements.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Holtop
-
Dimension(L*W*H):
-
customized size
-
Weight (KG):
-
755 KG
-
AHU type:
-
DX Inverter Air Handling Unit
-
Nominal Cooling Capacity:
-
25.5 Kw
-
Nominal Heating Capacity:
-
28.3 Kw
-
Refrigerant:
-
R410A
-
Indoor unit External pressure:
-
150Pa
-
Indoor unit Fan Type:
-
High efficient DC fan
-
Indoor unit Fan power:
-
1.5 KW
-
Compressor type:
-
DC inverter compressor
-
Outdoor Unit size L*W*H:
-
990x850x1810mm
Quick Details
-
Type:
-
Air Handling Unit
-
Mounting:
-
Floor Standing
-
Airflow:
-
5500m3/h, 5500 m3/h
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
Holtop
-
Dimension(L*W*H):
-
customized size
-
Weight (KG):
-
755 KG
-
AHU type:
-
DX Inverter Air Handling Unit
-
Nominal Cooling Capacity:
-
25.5 Kw
-
Nominal Heating Capacity:
-
28.3 Kw
-
Refrigerant:
-
R410A
-
Indoor unit External pressure:
-
150Pa
-
Indoor unit Fan Type:
-
High efficient DC fan
-
Indoor unit Fan power:
-
1.5 KW
-
Compressor type:
-
DC inverter compressor
-
Outdoor Unit size L*W*H:
-
990x850x1810mm

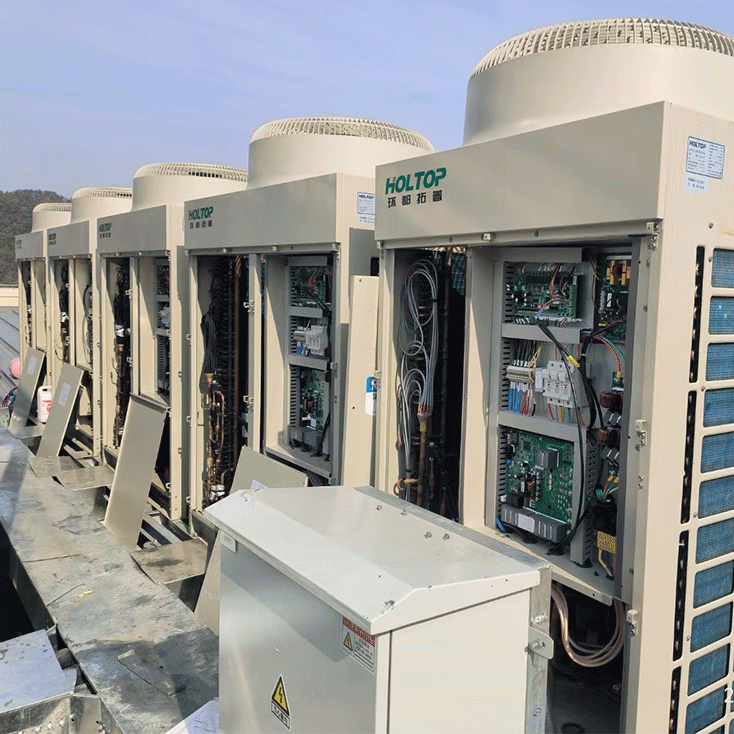

Projects Cases
Product description
We are BAQ (Building Air Quality)Integrated Solutioner Specialist
Mainly cover below sectors:
Turn-Key Engineering Project
Building HVAC solution (residential & commercial)
Manufacturing Process HVAC Solution
Clean Room Solution (pharmaceutical, electric, food process, laboratory, etc.)
VOCs Solution (volatile organic compounds)
Modern Agriculture (Mushroom, Hatchery, etc.)
|
Product name
|
Air handling unit
|
|
|
||
|
Material
|
Steel
|
|
|
||
|
Function
|
Heat recovery,adjust cold/heat/humidity
|
|
|
||
|
Application
|
Home,office,factory,plaza,toilets and other house
|
|
|
||
|
Filter class
|
G4+F7+H10
|
|
|
||
|
Place of origin
|
Beijing,China
|
|
|
||
STRUCTURAL FEATURES OF THE TOP DISCHARGE OUTDOOR UNIT
Air Handling Units AHU
Air handling units’ condition and distribute air within a building. They take fresh ambient air from outside, clean it, heat it or cool it, maybe humidify it and then force it through some ductwork around to the designed areas within a building.
We preserve increasing and perfecting our solutions and service. At the same time, we function actively to do research and growth for OEM Customized Air Handling Unit Ventilation. ahu recuperator. ahu air handling unit
Working principle:
Main Combination:
Combination mode 1: Wheel + Coarse filter (medium filter) + Cooling coil (heating coil+ Humidification + Fan)
Main Combination:
Combination mode 2: Plate heat exchanger + Coarse filter (medium filter) + Mixed air +Cooling coil (heating coil + Fan )
Air handling units
with
heat recovery core
Air handling units
with heat recovery rotary wheel
FAN SECTION
We offer different types of fans such as direct driven centrifugal fan, belt driven DIDW forward centrifugal fan, and belt driven DIDW backward centrifugal fan etc..
Air filter
In order to ensure heat exchanging efficiency and cleanness, combination of G3 coarse filter and F5 medium filter is selected as standard configuration in HJK AHU.
Heat Exchangers
Crossflow total heat exchanger, cross-flow plate heat exchanger, or rotary heat exchanger to meet different demands.
Our service
What we can do for you?
1) We produce high quality AHU based on clients' need and help clients doing project design.
2) We offer a package(turn-key) service including engineering, design, installation, aftersale service,etc.
3) We are especially professionl and strong in cleanroom HVAC engineering.
What kind of HVAC job that we can do?
1) Medical, Pharmaceutical, Hygienic, Food, Eectronic, Textile, Tobacco Industry, Hotels, Office, Sports Center, Exhibition center, etc.
Industrial air handling units project reference
