Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
PBM
-
Model Number:
-
PK3N225B24-TG0
-
Voltage:
-
24VDC
-
Product Name:
-

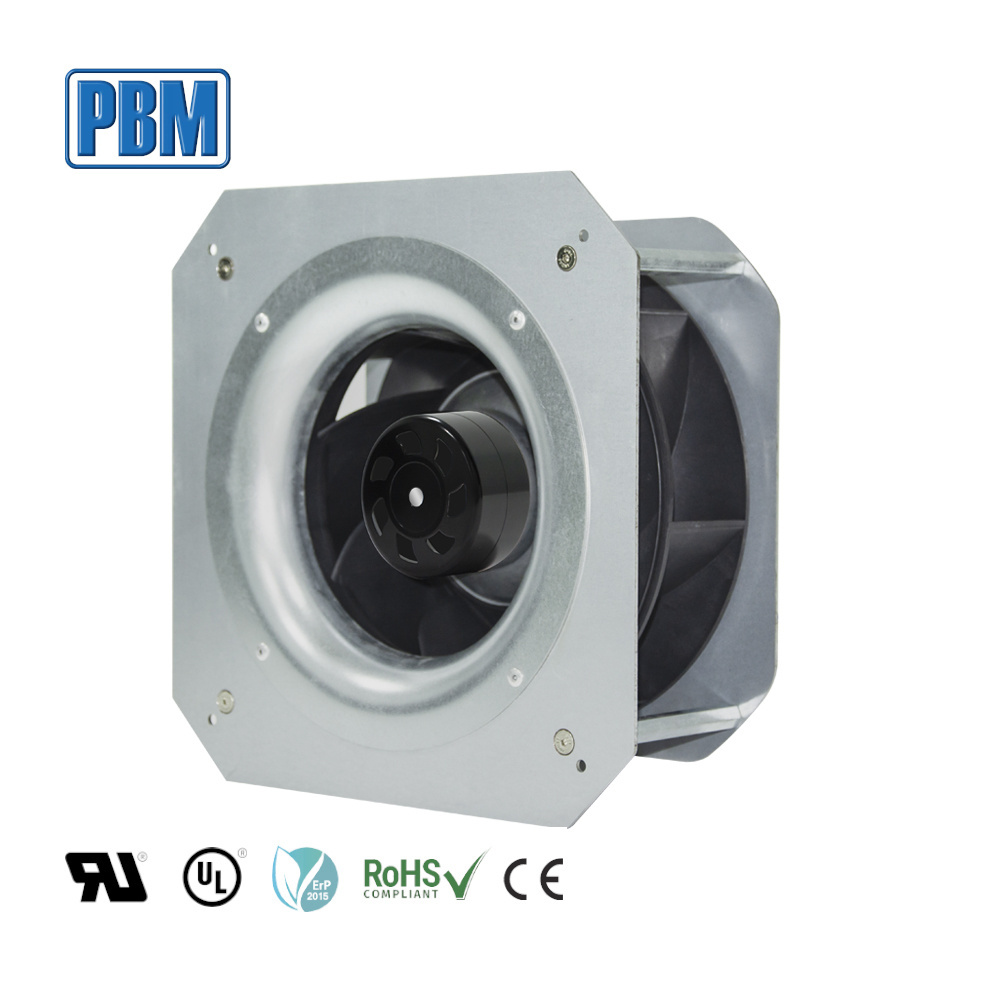

225mm EC-DC Centrifugal Fan with Bracket
-
Motor:
-
EC Brushless External Rotor Motor
-
Air Pressure:
-
960 Pa
-
Sound Level:
-
72 dB(A)
-
Speed Control:
-
0-10VDC/PWM
-
Weight:
-
2.4kg
-
Insulation Class:
-
IP55
-
Bearing Type:
-
NMB Ball Bearing
-
Life Span:
-
50,000hours
-
Certification:
-
CE RoHS ErP
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Restaurant, Home Use, Food Shop, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company, Other
-
Electric Current Type:
-
DC
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
PBM
-
Model Number:
-
PK3N225B24-TG0
-
Voltage:
-
24VDC
-
Product Name:
-
225mm EC-DC Centrifugal Fan with Bracket
-
Motor:
-
EC Brushless External Rotor Motor
-
Air Pressure:
-
960 Pa
-
Sound Level:
-
72 dB(A)
-
Speed Control:
-
0-10VDC/PWM
-
Weight:
-
2.4kg
-
Insulation Class:
-
IP55
-
Bearing Type:
-
NMB Ball Bearing
-
Life Span:
-
50,000hours
-
Certification:
-
CE RoHS ErP
Products Description
One-plug Easy-mounting with Higher Efficiency
PBM centrifugal fans with support bracket, adopt both metal rivetstructure or welding and single-piece plastic with glass fiber reinforcement aerodynamic impeller, compact energy-saving smart EC motor drives it with maintenance free ball bearing, installed into easy-mounting, anti-vibration, robust support bracket design to guarantee stable, quiet fan operation with maximum “η” up to 55% efficiency at ErP Directive satisfaction of customers in their ventilation, heating, refrigeration product or system.
Product Specification
General Characters
|
Model
|
PK3N225B24-TG0
|
|
Rated Voltage
|
24VDC
|
|
Operating Voltage
|
16~28VDC
|
|
Rated Speed
|
3000 RPM
|
|
Input Current
|
7A
|
|
Input Power
|
168 W
|
|
Air Flow
|
1280 m3/H
|
|
Static Pressure
|
960 Pa
|
|
Sound Level
|
72 dB(A)
|
|
Protection Type
|
IP55
|
Mechanical
|
Dimension
|
270x270x115.3mm (see dimension drawing)
|
|
Material of Impeller
|
Propylene with glass-fiber reinforced
|
|
Mounting Position
|
Any
|
|
Surface of Rotor
|
Coated in black
|
|
Bearing System
|
NMB ball bearing
|
|
Lead Wire
|
AC(AWG20#)，DC(AWG24 #)
|
|
Weight
|
2.4kg
|
|
Package
|
Standard
|
Outline Drawing
Application
