Quick Details
-
Warranty:
-
1year
-
Brand Name:
-
Huiyu fluid
-
Model Number:
-
BT300J-1A
-
Place of Origin:
-
Beijing, China
-
Horsepower:
-
0.05
-
Outlet Size:
-
6.4mm
-
Power:
-
40w
-
motor:
-
stepper motor
-
product:
-
Tumescent Peristaltic Pump with Foot Pedal Switch
-
Brand:
-
Huiyu fluid
-
flow rate:
-
0.07-1140ml/min
-
power supply:
-
AC 220V ±20%
-
motor speed:
-
0.1-300rpm
-
dimension(LxWxH):
-
276x184x175 (mm)
-
Drive weight:
-
3.5 kg
-
Usage:
-
water,fluid,reagent,oil,detergent
-
Fuel:
-
electricity
-
pressure:
-
0.2mpa 2bar 30psi
Quick Details
-
Application:
-
Food and Beverage Industry, Pharmaceutical industry, wastewater treatment
-
Pressure:
-
Low Pressure
-
Voltage:
-
110v 220v
-
Warranty:
-
1year
-
Brand Name:
-
Huiyu fluid
-
Model Number:
-
BT300J-1A
-
Place of Origin:
-
Beijing, China
-
Horsepower:
-
0.05
-
Outlet Size:
-
6.4mm
-
Power:
-
40w
-
motor:
-
stepper motor
-
product:
-
Tumescent Peristaltic Pump with Foot Pedal Switch
-
Brand:
-
Huiyu fluid
-
flow rate:
-
0.07-1140ml/min
-
power supply:
-
AC 220V ±20%
-
motor speed:
-
0.1-300rpm
-
dimension(LxWxH):
-
276x184x175 (mm)
-
Drive weight:
-
3.5 kg
-
Usage:
-
water,fluid,reagent,oil,detergent
-
Fuel:
-
electricity
-
pressure:
-
0.2mpa 2bar 30psi

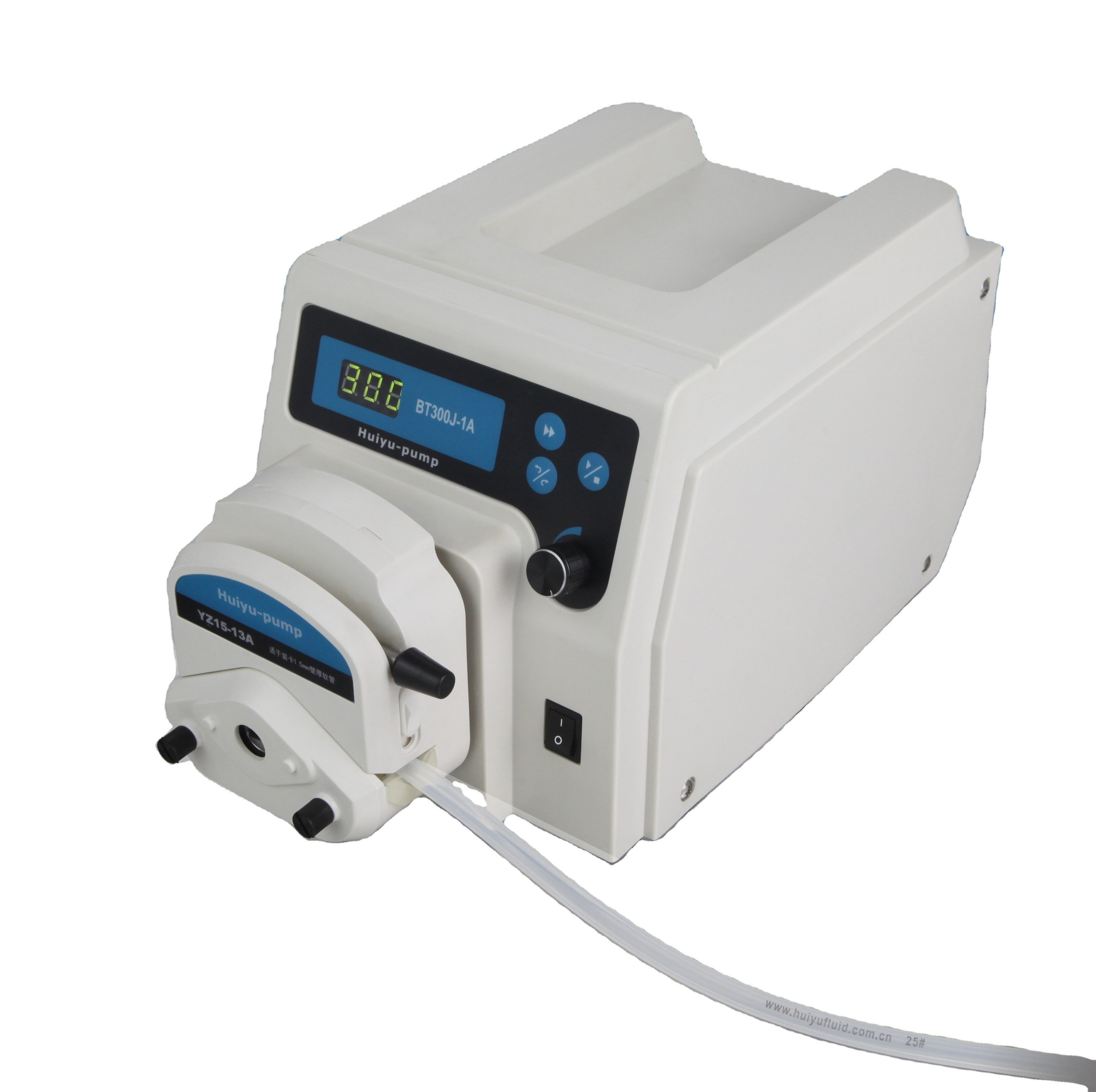

Tumescent Peristaltic Pump with Foot Pedal Switch
Technical parameter
Speed: 1 to 300 rpm, reversible
Speed resolution: 1 rpm
Running direction: cw/ccw
Display: 3-digit LED displays current speed
Analog interface: Start/stop and cw/ccw control, 0 to 5V, 0 to 10V, 4 to 20 mA and 0 to 10 KHz speed control
Communication interface: RS485
Power supply: AC 90 - 260V 50/60 Hz
Power consumption: < 50W
Operating condition: Temperature 0 to 40℃ Relative humidity < 80%
Drive weight: 3.5 kg
Dimensions (L×W×H): 276×184×175 (mm)
IP rating: IP 31
Technical Data Sheet
| Pump head | model | Available tubing | flow rate range (ml/min) |
| YZ15-l3A | 13#, 14#, 19#, 16#, 25#, 17#, 18# wall thickness:1.5mm | 0.07-1140ml/min | |
| YZ25-l3A | 15#, 24# wall thickness:2.5mm | 1.7-810ml/min | |
| BZ25-lA | 24# wall thickness:2.5mm | 0.26-780ml/min |
Special designed carton and foam plastic cushion
Professional bundling machine ensure safe delivery to customers directly .
These precise instruments are mainly delivered by Express like DHL FedEx etc.
