Quick Details
-
Warranty:
-
12 Months
-
Loading Capacity:
-
10000pcs(Extendible)
-
Name:
-
RFID Intelligent car parking system SEWO-X6
-
Dimension:
-
612x610x1710mm
-
Housing Material:
-
steel & tempered glass
-
Housing Color:
-
black
-
Support Built-in Reader:
-
IC/ID/Barcode
-
Mode of Communication:
-
base RS485,rear TCP/IP
-
Communication transmission distance:
-
1200m(RS485)
-
Offline Storage Capacity:
-
10000 pcs (extendible)
-
Working Temperature:
-
-30℃~70℃
-
Relative Humidity:
-
≤90%, no condensation
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SEWO
-
Model Number:
-
SEWO-APM3000
-
Warranty:
-
12 Months
-
Loading Capacity:
-
10000pcs(Extendible)
-
Name:
-
RFID Intelligent car parking system SEWO-X6
-
Dimension:
-
612x610x1710mm
-
Housing Material:
-
steel & tempered glass
-
Housing Color:
-
black
-
Support Built-in Reader:
-
IC/ID/Barcode
-
Mode of Communication:
-
base RS485,rear TCP/IP
-
Communication transmission distance:
-
1200m(RS485)
-
Offline Storage Capacity:
-
10000 pcs (extendible)
-
Working Temperature:
-
-30℃~70℃
-
Relative Humidity:
-
≤90%, no condensation
Product Description

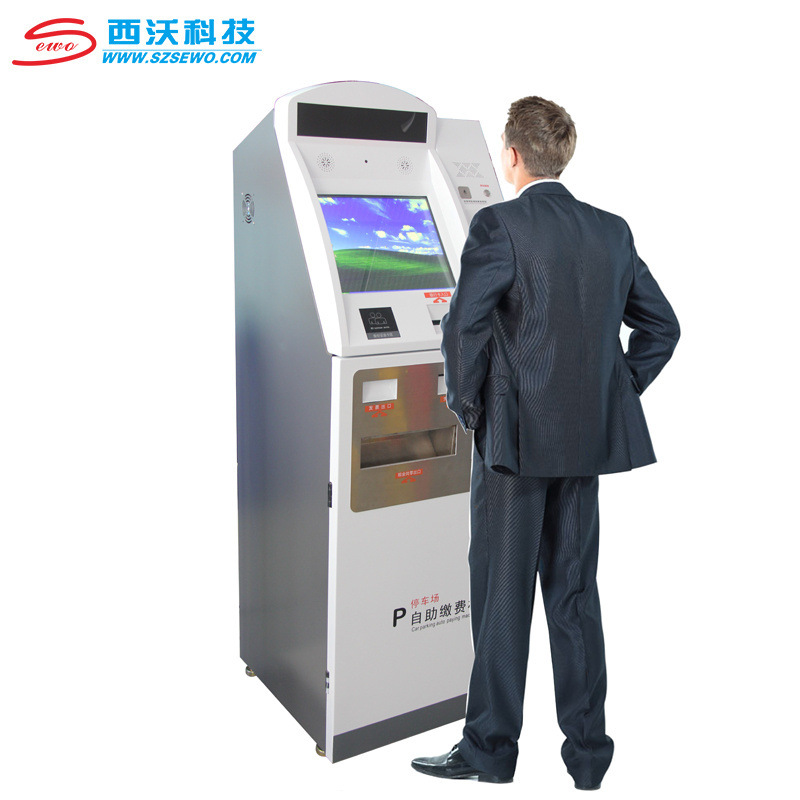

SEWO Car Parking System Parking Management Automatic Pay Station Machine
Brief Introduce
SEWO developed and launched the "IP" Parking Management System program is to SEWO-rich parts of the integration of resources from the parking lots, which is based on our "IP Control Software Platform", a typical application, greatly simplifying the development of parking and design. System architecture is fully using TCP'IP protocol, the system WEB server, computer terminal and boxes controller from the U form a backbone dedicated local network equipment, network device independent, so the system is completely simplified the maintenance of local network （to ensure smooth network）.
Advantage of SEWO Automatic Payment Machine
1.LCD with 19" high width main operating window makes people easy to see the things on it.
2.This machine accept paper,coin,and give change back to the driver,paper scanning,ticket printing,and LCD show the Sum..It looks better and more integrated.
3.Instead of manual payment,it works with humanization.
4.The machine save the coin and paper in different places,classification management makes the system easy to be used.
5.There is safety opening procedure,it will alarm if there is a abnormal operation.
6.Every terminal automatic paying machine has its unique identity.
7.The system is designed with module,strong integrated performance,lower maintenance cost.
8.With powerful report function,more convenient for income and expense.
Main Functions (some functions to optional, also support customized)
1, LCD Touch Screen
2, Advertising Lamp-boxes
3，Paper Money Dispenser
4，Coin Dispenser
5，Receipt Pinter
6，IC/ID Card Reader
7，Bank Card Reader
8，RFID Card Reader
9，Barcode Scanner
10，Thermal printer
Specifications
|
SEWO APM Series Automatic Payment Machine
|
|
|
|
Model No
|
SEWO-APM3000
|
|
|
LED Display
|
|
|
|
Touch screen
|
19 inch
|
|
|
Light transmittance
|
92%
|
|
|
Distinguish ability
|
4096*4096
|
|
|
Thickness
|
3MM
|
|
|
Response speed
|
< 10ms
|
|
|
Surface hardness
|
7 grade
|
|
|
Operating voltage
|
DC 12V
|
|
|
Operating temperature
|
-20℃ ~ 50℃
|
|
|
Operating current
|
85MA
|
|
|
Communication control
|
232/USB
|
|
|
Display
|
19 inch
|
|
|
Screen ratio
|
4:3
|
|
|
Distinguish ability
|
1280*1024
|
|
|
Refresh rate
|
75HZ
|
|
|
Contrast ratio
|
500:1
|
|
|
Brightness
|
450cd/m2
|
|
|
Response time
|
7ms
|
|
|
Housing
|
|
|
|
Surface treatment
|
imported auto metal paint, metal smooth paint.
|
|
|
Control board
|
power switch, sound and volume
|
|
|
Connector
|
RJ45 network port
|
|
|
Voltage
|
AC220V±10% 50Hz±1Hz
|
|
|
Power consumption
|
<200W
|
|
|
Starting current
|
3A
|
|
|
Working temperature
|
0℃ ~ +35℃
|
|
|
Humidity
|
40% ~ 80%
|
|
|
Amplifier power
|
2*2W
|
|
|
Speaker power
|
5W
|
|
|
Frequency response
|
100Hz~20KHz
|
|
