Quick Details
-
Warranty(Year):
-
2-Year
-
Lamp Luminous Efficiency(lm/w):
-
22.5
-
Input Voltage(V):
-
12
-
Lamp Luminous Flux(lm):
-
3500
-
CRI (Ra>):
-
85
-
Working Temperature(℃):
-
-20 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ledcolourlight, LCL
-
Emitting Color:
-
RGBW
-
IP:
-
IP65
-
Warranty:
-
2 Years
-
Size:
-
500*500*66MM
-
Housing material:
-
plastics plus import toughened glass
-
LED QTY:
-
48pcs
-
Control:
-
DMX/DVI/ARTNET
-
Net weight:
-
14.5Kg
-
Universe:
-
10Pcs/Universe
Quick Details
-
Color Temperature(CCT):
-
RGB
-
Type:
-
LED Matrix Light
-
Application:
-
LANDSCAPE
-
Warranty(Year):
-
2-Year
-
Lamp Luminous Efficiency(lm/w):
-
22.5
-
Input Voltage(V):
-
12
-
Lamp Luminous Flux(lm):
-
3500
-
CRI (Ra>):
-
85
-
Working Temperature(℃):
-
-20 - 50
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ledcolourlight, LCL
-
Emitting Color:
-
RGBW
-
IP:
-
IP65
-
Warranty:
-
2 Years
-
Size:
-
500*500*66MM
-
Housing material:
-
plastics plus import toughened glass
-
LED QTY:
-
48pcs
-
Control:
-
DMX/DVI/ARTNET
-
Net weight:
-
14.5Kg
-
Universe:
-
10Pcs/Universe

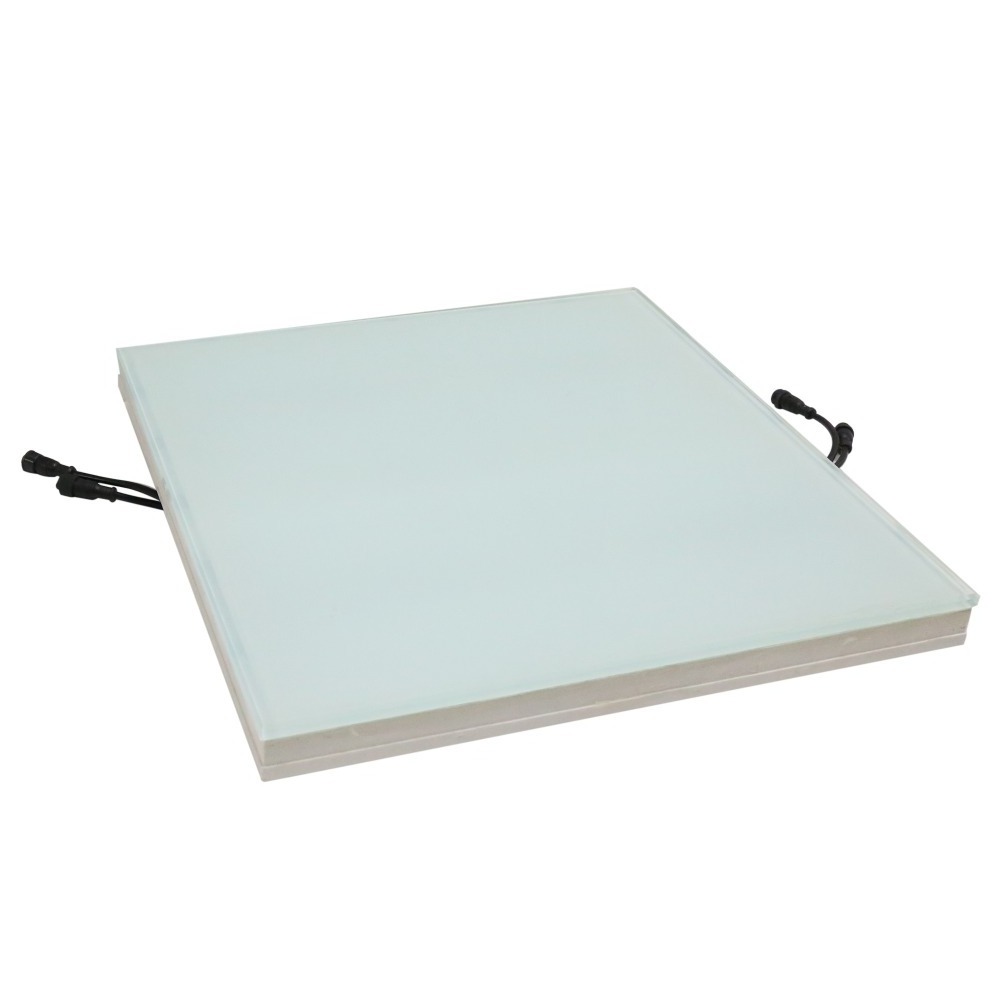

Full Color Disco DMX Led Video Dance Floor Tile
Parameter:
| Model No. | LCL-DF500-RGB-D4816 |
| Dimension | 500×500×66mm |
| Pixel QTY | 16 Pixels |
| LED QYT |
48 pcs SMD RGB 5050
|
| Pixel Pitch | 125mm |
| View Angle | 120° |
| Voltage | DC12V |
| Max Power | 8W |
| Working Current | 670mA |
| Color | RGB Full color |
| Protocol | DMX512 |
| LED Source Life | 50'000hours based on LED manufactures' test data |
| Housing | clear |
| Protection | IP65 |
| Working Tem. | -20°c to 50°c |
| Net Weight | 10KG |
| Gross Weight | 11KG |
Features
1. SMD RGB 5050 3 in 1 LEDs.
2. Constant current driver contributes to the protecting of LEDS’ lifespan.
3. DMX512 Protocol, sharing long-distance of transmission and high ability of anti-interference.
4. Madrix Software compatible, Madrix DMX led light control solution.
5. Light and audio controlled synchronously, music controllable.
6. Environment friendly, no harsh glare and buzzing noise, no flicker.
7. Also compatible with software likes Vixen, Light Show Pro, HLS, Light-O-Rama, Light Jams, Light Factory, ArKaos, Madrix, Madmapper and others
Pictures
|
|
|
|
Applications
DJ, night club , Ceiling decoration, building facade, led backstage. television studio, theater and so on .
Accessory
-Cables( T-444 cable for lamps, T542/T432 cable for lamp, power supply and controller, power supply cable, extension wire etc. )
-Power supply
-Software
-Controller
Packaging Details: Usually packaging is case or according to your requirements.
Delivery Detail: 7 to 15 days after receipt payment.
