Quick Details
-
Model Number:
-
NeoDen4
-
Number of Heads:
-
4
-
Placement Rate:
-
5000PCS/H (vision off) 4000PCS/H (vision on)
-
Feeder Capacity:
-
Tape feeder:48(all 8mm)
-
Tape width:
-
8mm,12mm,16mm,24mm
-
Smallest Component size:
-
0201
-
Largest Component size:
-
TQFP240
-
Resolution:
-
X/Y axis:0.01mm Z axis:0.1mm
-
Applicable PCB area:
-
310mm*1500mm
-
Item:
-
SMT 4 Heads Pick and Place Machine Vision System Auto Rails
-
Application:
-
SMT Production Line/PCB Assembly Line
Quick Details
-
Weight (KG):
-
80
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NeoDen
-
Model Number:
-
NeoDen4
-
Number of Heads:
-
4
-
Placement Rate:
-
5000PCS/H (vision off) 4000PCS/H (vision on)
-
Feeder Capacity:
-
Tape feeder:48(all 8mm)
-
Tape width:
-
8mm,12mm,16mm,24mm
-
Smallest Component size:
-
0201
-
Largest Component size:
-
TQFP240
-
Resolution:
-
X/Y axis:0.01mm Z axis:0.1mm
-
Applicable PCB area:
-
310mm*1500mm
-
Item:
-
SMT 4 Heads Pick and Place Machine Vision System Auto Rails
-
Application:
-
SMT Production Line/PCB Assembly Line

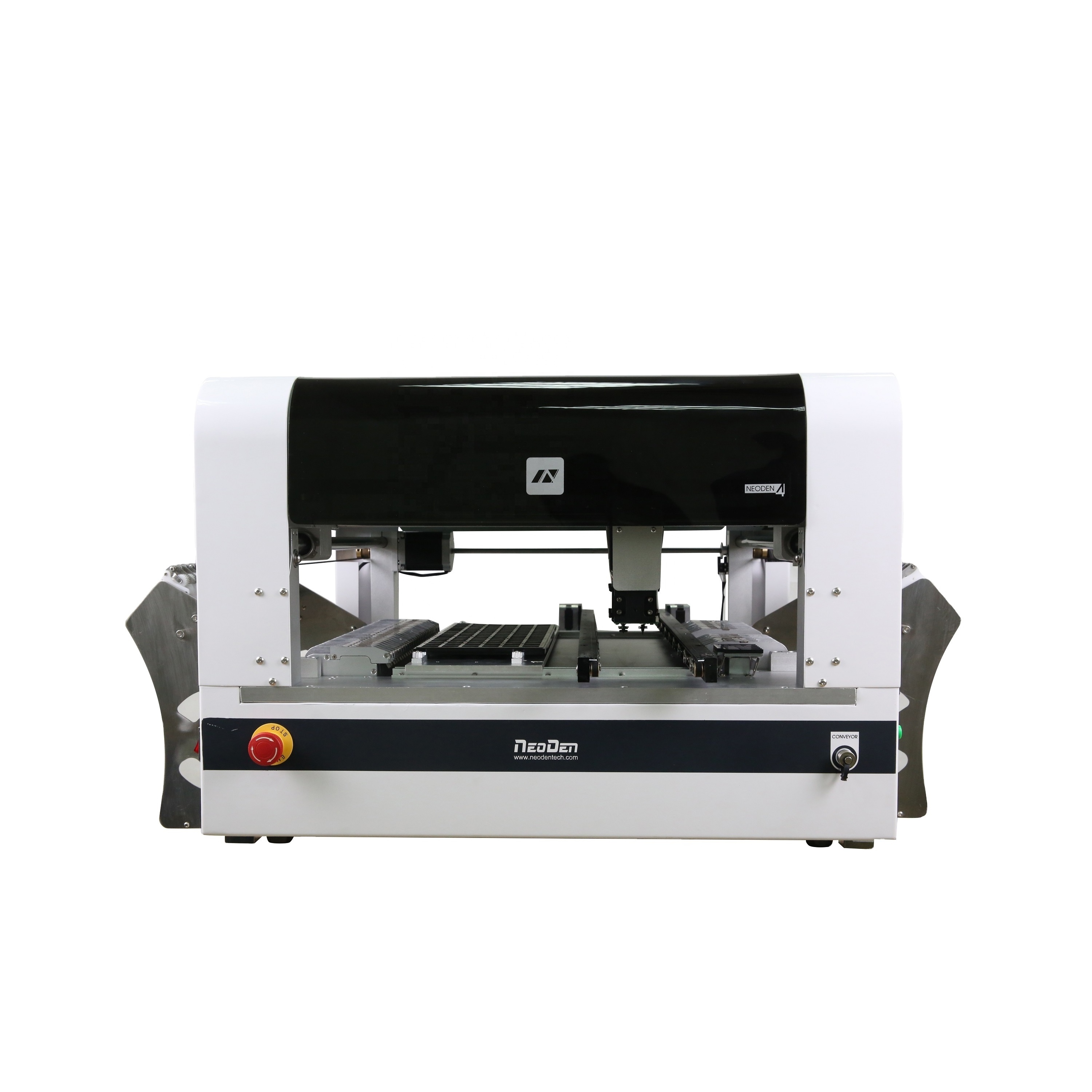

NeoDen 4 SMT 4 Heads Pick and Place Machine Vision System Auto Rails high accuracy for 0201 BGA PCB Prototype
Product Description
NeoDen4
is a flexible pick and place machine for all types of products.
With placement rates of 10,000 cph, up to 48 feeder slots, auto rails and electronic feeders, users can move from prototype into production on the same machine, saving programming and job setup time. It is a compact placing machine that offers the flexibility (component flexibility, PCB flexibility and production flexibility) and high speed to meet the demands of an ever-changing market.
smt pick and place machine manufacturers pick and place machine for sale pick n place machine smd machine pric
With placement rates of 10,000 cph, up to 48 feeder slots, auto rails and electronic feeders, users can move from prototype into production on the same machine, saving programming and job setup time. It is a compact placing machine that offers the flexibility (component flexibility, PCB flexibility and production flexibility) and high speed to meet the demands of an ever-changing market.
smt pick and place machine manufacturers pick and place machine for sale pick n place machine smd machine pric
pik and place smt machine
pcb pick and place machine
smt placement machine
automatic pick and place machine
Note:
There are two versions of NeoDen4, with rails and without rails . The main difference between these two models is fixation method.
The version without rails will use magnetic pins and bars to fix board , the version with rails could use auto rails to advance
board automatically .
The maximum PCB size of with rails version is 310*1, 500mm , without rails version is 350*400mm .
The advantage for with rails version is that it could help to handle max 1.5m long board and connect with a conveyor to achieve a continuous SMT line, if you board is not that long, both versions will be workable.
There are two versions of NeoDen4, with rails and without rails . The main difference between these two models is fixation method.
The version without rails will use magnetic pins and bars to fix board , the version with rails could use auto rails to advance
board automatically .
The maximum PCB size of with rails version is 310*1, 500mm , without rails version is 350*400mm .
The advantage for with rails version is that it could help to handle max 1.5m long board and connect with a conveyor to achieve a continuous SMT line, if you board is not that long, both versions will be workable.
pick and place robot project
pick and place equipment
smt pick and place equipment
pnp machine
smt assembly machine
If You Need More Details About The
NeoDen4 pick and place machine
, Please
Click Here.
Specification
|
Model
|
|
NeoDen4
|
|
|
|||
|
Machine style
|
|
Single gantry with 4 heads
|
|
|
|||
|
Alignment
|
|
Stage Vision
|
|
|
|||
|
Placement Rate
|
|
Vision on: 4,000CPH
Vision off: 5,000CPH
|
|
|
|||
|
Feeder Capacity
|
|
Tape feeder: 48 (all 8mm)
Vibration feeder: 5
Tray feeder: 5
|
|
|
|||
|
Component Range
|
|
Smallest Size: 0201
Largest Size: 32x32mm (Lead Pitch 0.5mm)
Largest Size: 5mm |
|
|
|||
|
Rotation
|
|
±180°
|
|
|
|||
|
Placement Accuracy
|
|
±0.02mm
|
|
|
|||
|
X-Y Repeatability
|
|
±0.02mm
|
|
|
|||
|
Board Dimension(mm)
|
|
Maximum: 310 x 1500mm(Without waffle Tray), 140 x1500mm(With 1 waffle Tray), 350 x 400mm(Without rails)
|
|
|
|||
|
Main Control
|
|
GUI
|
|
|
|||
|
Electricity Supply
|
|
110V/220V
|
|
|
|||
|
Power
|
|
180W
|
|
|
|||
|
External Dimensions(mm)
|
|
Machine size: 870(L)x680(W)x480(H)
Packing size: 940(L)x740(W)x600(H)
|
|
|
|||
|
Weight
|
|
Net Weight: 60kgs
Gross weight: 80kgs
|
|
|
|||
Rails and Feeders
Please kindly note auto rails & feeders are selectable , they will be charged separately.
Please kindly note auto rails & feeders are selectable , they will be charged separately.
Features
1.
Dual vision system
(up-looking and down-looking cameras), identify and calibrate the different components at one time, improves
the accuracy of placement from 0201 to BGA;
2. Automatic electric feeders , reduce the feeding deviation;
3. General conveyor is supported, so a SMT production line can be setup, which is more time-saving and labor-saving
4. Four placement heads can pick up and calibrate components at one time.
5. The device supports remote system upgrade , NeoDen provides a life long system upgrade service for free to you.
the accuracy of placement from 0201 to BGA;
2. Automatic electric feeders , reduce the feeding deviation;
3. General conveyor is supported, so a SMT production line can be setup, which is more time-saving and labor-saving
4. Four placement heads can pick up and calibrate components at one time.
5. The device supports remote system upgrade , NeoDen provides a life long system upgrade service for free to you.
Nozzle Information
