Quick Details
-
Model Number:
-
Pvc Pipe
-
Specification:
-
1-12 inch
-
Thickness:
-
1.8-3.5mm
-
Standard:
-
ISO
-
Application:
-
water supply, irrigation, drainage
-
Visit factory:
-
Available
-
Other services:
-
OEM/ODM
-
Product name:
-
agricultural irrigation 4 inch flexible PVC lay flat pipe
-
Color:
-
Blue,orange,red or at request
-
Life time:
-
30 years
-
Certification:
-
ISO series, CE
-
Feature:
-
Easy installation
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
China
-
Brand Name:
-
Amazonpipe
-
Model Number:
-
Pvc Pipe
-
Specification:
-
1-12 inch
-
Thickness:
-
1.8-3.5mm
-
Standard:
-
ISO
-
Application:
-
water supply, irrigation, drainage
-
Visit factory:
-
Available
-
Other services:
-
OEM/ODM
-
Product name:
-
agricultural irrigation 4 inch flexible PVC lay flat pipe
-
Color:
-
Blue,orange,red or at request
-
Life time:
-
30 years
-
Certification:
-
ISO series, CE
-
Feature:
-
Easy installation

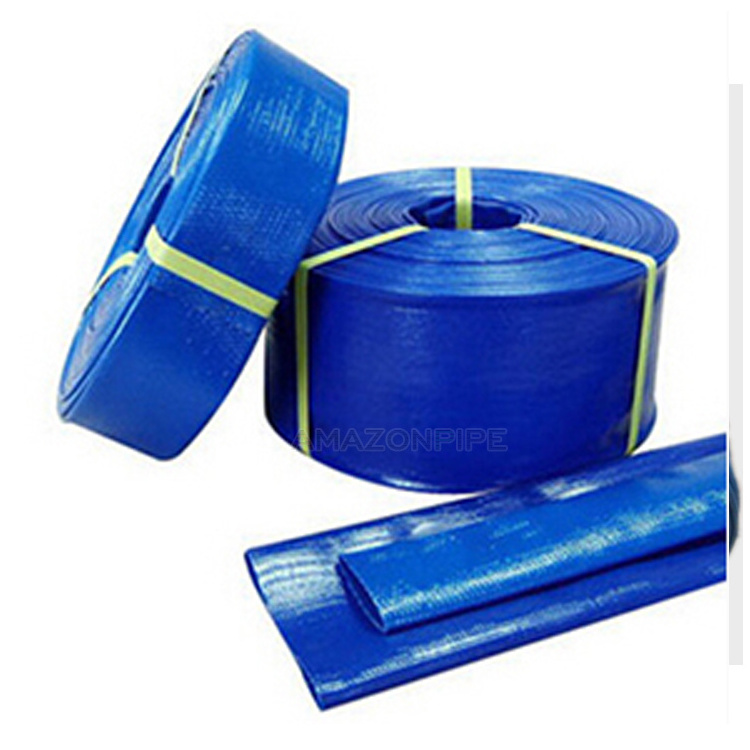

Heavy Duty PVC Lay Flat Discharge Water Pump Hose
PVC layflat pipe is designed as a standard duty hose for water discharge in Agricultural Irrigation, industrial and construction applications, kinking and twisting is prohibited.
Diameter from 1'' to 12''
Working pressure: 2bar 4bar 6bar 8bar 10bar
Burst pressure: 3 times working pressure
Tube: PVC compound
Cover:PVC compound
Reinforcement: High strength polyester yarn jacket
Temperature: -20 to +80 degree
Size information:
| Inch | Diameter(mm) | Thickness(mm) | W.P.(bar) | B.P.(bar) |
| 1 | 25.4 | 1.4-2.2 | 2-10 | 6-30 |
| 1 1/2 | 38.1 | 1.4-2.2 | 2-10 | 6-30 |
| 2 | 50.8 | 1.4-2.4 | 2-10 | 6-30 |
| 2 1/2 | 63.5 | 1.5-2.4 | 2-10 | 6-30 |
| 3 | 76.2 | 1.5-2.5 | 2-10 | 6-30 |
| 4 | 102 | 1.5-2.6 | 2-10 | 6-30 |
| 5 | 127 | 1.5-2.6 | 2-10 | 6-30 |
| 6 | 152 | 1.6-2.8 | 2-10 | 6-30 |
| 8 | 203 | 1.8-3.0 | 2-6 | 6-30 |
| 10 | 254 | 2.0-3.2 | 2-6 | 6-30 |
| 12 | 304 | 2.4-3.4 | 2-6 | 6-30 |
production line:
