Quick Details
-
Model Number:
-
TW-12
-
Dimension:
-
(W*H*D): 628*334*450 mm
-
Power Supply Mode:
-
Power Amolifer / AC / Other
-
Storage:
-
Other
-
SNR:
-
Other
-
Output Power:
-
1100W
-
Shell Material:
-
Plywood
-
Format:
-
Other
-
The body material:
-
Plywood Wood Cabinet
-
Product Name:
-

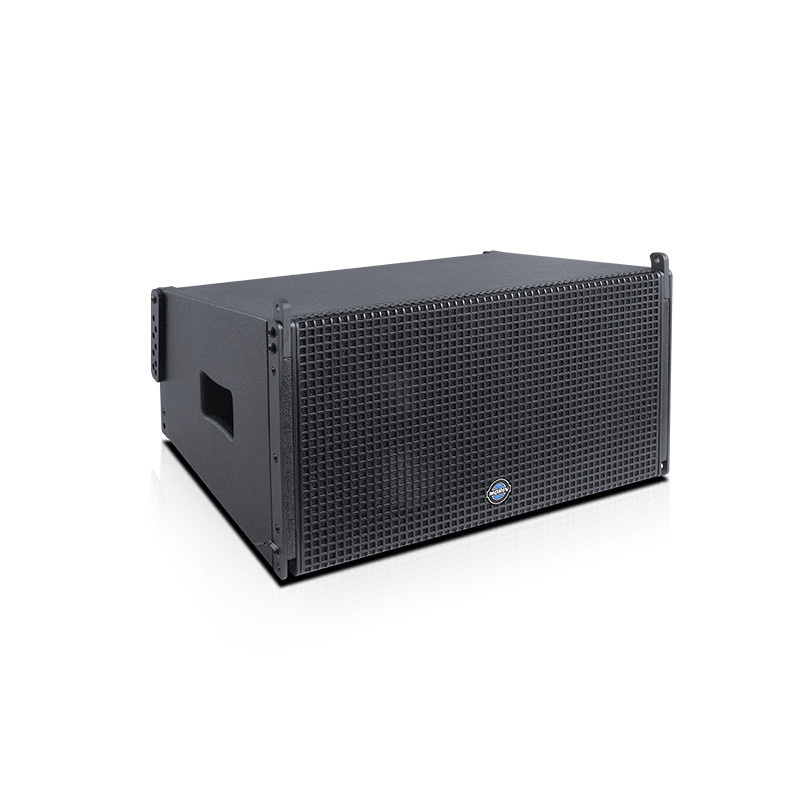

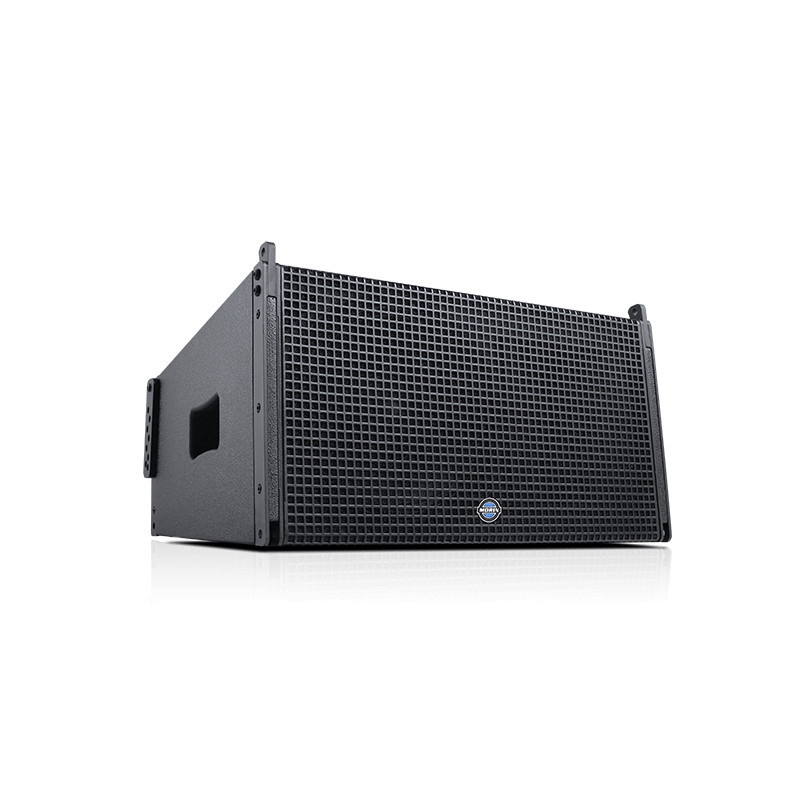

Professional Passive 12" Line Array
-
Type:
-
Passive
-
Components:
-
12"MF and Dual 1.75"HF
-
Speaker Unit:
-
12 Inch Mid-Volume/Baritone * 1 , Dual 17.5 Inch Tweeter
-
Frequency Response:
-
:70Hz~20KHz (±3dB)
-
MF RMS/Peak Power:
-
450W/1100W - Mid-Volume/Baritone
-
HF RMS/Peak Power:
-
150W/300W HF - Tweeter/Treble
-
Sensitivity (1 W/m):
-
MF:104dB / HF:116dB
-
Maximum Peak SPL:
-
137dB( peak@1m)
-
Impedance:
-
16 Ohm
Quick Details
-
Warranty:
-
3years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MORIN
-
Model Number:
-
TW-12
-
Dimension:
-
(W*H*D): 628*334*450 mm
-
Power Supply Mode:
-
Power Amolifer / AC / Other
-
Storage:
-
Other
-
SNR:
-
Other
-
Output Power:
-
1100W
-
Shell Material:
-
Plywood
-
Format:
-
Other
-
The body material:
-
Plywood Wood Cabinet
-
Product Name:
-
Professional Passive 12" Line Array
-
Type:
-
Passive
-
Components:
-
12"MF and Dual 1.75"HF
-
Speaker Unit:
-
12 Inch Mid-Volume/Baritone * 1 , Dual 17.5 Inch Tweeter
-
Frequency Response:
-
:70Hz~20KHz (±3dB)
-
MF RMS/Peak Power:
-
450W/1100W - Mid-Volume/Baritone
-
HF RMS/Peak Power:
-
150W/300W HF - Tweeter/Treble
-
Sensitivity (1 W/m):
-
MF:104dB / HF:116dB
-
Maximum Peak SPL:
-
137dB( peak@1m)
-
Impedance:
-
16 Ohm
Products Description
|
Product Name
|
Professional Passive 12" Line Array
|
|
|
|
|||
|
Model Name
|
TW-12
|
|
|
|
|||
|
Type
|
Passive
|
|
|
|
|||
|
Components
|
12"MF and Dual 1.75"HF
|
|
|
|
|||
|
Speaker Unit
|
12 Inch Mid-Volume/Baritone * 1 , Dual 17.5 Inch Tweeter
|
|
|
|
|||
|
Frequency Response
|
70Hz～20KHz (±3dB)
|
|
|
|
|||
|
MF RMS/Peak Power
|
450W/1100W - Mid-Volume/Baritone
|
|
|
|
|||
|
HF RMS/Peak Power
|
150W/300W HF - Tweeter/Treble
|
|
|
|
|||
|
MF Sensitivity (1 W/m)
|
104dB
|
|
|
|
|||
|
HF Sensitivity (1 W/m)
|
116dB
|
|
|
|
|||
|
Maximum Peak SPL
|
137dB( peak@1m)
|
|
|
|
|||
|
Impedance
|
16 Ohm
|
|
|
|
|||
|
Coverage Angle
|
120°H× 20°V
|
|
|
|
|||
|
Dimension(W*H*D)
|
628*334*450 mm
|
|
|
|
|||
|
Packing Size(W*H*D)
|
515*420*700 mm
|
|
|
|
|||
|
Net Weight
|
24 kg
|
|
|
|
|||
|
Gross Weight
|
27 kg
|
|
|
|
|||
