Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Source&peak
-
Model Number:
-
YQ01-5C
-
Insulation resistance:
-
100MΩ 500VDC
-
Contact resistance:
-
≤50MΩ Initial
-
Withstand voltage:
-
AC1500V,50/60Hz,1min
-
Electric life:
-
10000times
-
Certification:
-
CQC, TUV, CB, CE, CQC, TUV, CB, CE
-
Others:
-
Can be customized
-
Working current:
-
1(1)A
Quick Details
-
Protection Level:
-
Class I
-
Max. Current:
-
1(1)A
-
Max. Voltage:
-
AC125V/250V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Source&peak
-
Model Number:
-
YQ01-5C
-
Insulation resistance:
-
100MΩ 500VDC
-
Contact resistance:
-
≤50MΩ Initial
-
Withstand voltage:
-
AC1500V,50/60Hz,1min
-
Electric life:
-
10000times
-
Certification:
-
CQC, TUV, CB, CE, CQC, TUV, CB, CE
-
Others:
-
Can be customized
-
Working current:
-
1(1)A

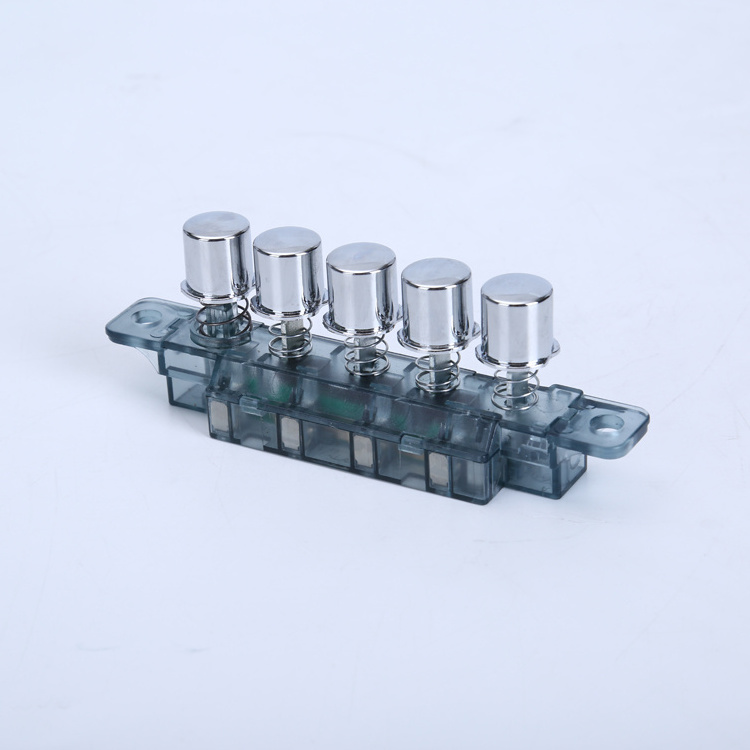

Push button keyboard switch Features and Application
1, Button switch, novel structure, convenient installation and fast motion
2, R eliable contact , gear shift clear and crisp
3, Multi- stage function, different shape, key cover ’ s color can be customized
4, New PC with the performance of good steel ,strength ,and frame retardant is used for the body
5, F atigue and high precision phosphor copper material is used for the leaf spring , and long service life
6, Apply to electric fans, lampblack machine, juicer, mixer and other household appliances
more about keyboard switch series
| Items | Specification |
| Product Name |
High quality kitchen hood sensor piano switch of kitchen chimney parts switch |
| Working frequency |
machinery 60times/min, electric 25times/min |
| Working current | 1(1)A,4(1)A,6(2)A |
| Working voltage | AC125V/250V |
| Contact resistance | ≤50MΩ Initial |
| Insulation resistance | ≥100MΩ 500VDC |
|
Withstand voltage |
Between homopolar disjoint terminals |
AC1500V,50/60Hz,1min |
|
Between Electrical Metal Parts And Earth(enclosure) |
AC3750V,50/60Hz,1min |
|
|
Between Terminals And De-energized Metal Parts |
AC3750V,50/60Hz,1min |
| Vibration resistance |
10 ~ 55Hz,1.5mm Double-amplitude |
| Electric life | 10000times |
| Protective structure | IEC IP40 |
| Electric shock proof protection grade | class I |
| PTI | 175V |
| Working temperature and humidity |
-25 ℃~+ 85℃ |
|
Materials |
PC |
