Quick Details
-
Mounting Type:
-
adhesive tape for mounting, adhesive tape for mounting
-
Description:
-
touch On/Off Light sensor switch
-
Model Number:
-
BS014
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BESTER
-
Theory:
-
Touch sensor switch
-
Output:
-
DC12V/DC24V
-
Brand:
-
touch switch
-
Voltage - Supply:
-
12v 24v
-
Output Type:
-
12V 24V
-
Current - Supply:
-
3A
-
Operating Temperature:
-
-20℃~+55℃
-
Current - Supply (Max):
-
3A
-
Frequency:
-
50/60
-
Current:
-
3A
-
Voltage Rating:
-
12V/24V
-
Sensing Range:
-
<15cm
-
Current - Output (Max):
-
3A
-
Sensing Distance:
-
<15cm
-
Current - Output:
-
3A
-
Sensing Object:
-
touch switch
-
sensor type:
-
Dimmable Touch On/Off Switch
-
Dimension:
-
38*32*9mm
-
Input Voltage:
-
DC 12v /DC 24v
-
Output Voltage:
-
DC 12v /DC 24v
-
Input current:
-
3A
-
Cable:
-
input 5.5*DC2.1 input cable 100mm output cable 200mm
-
Warranty:
-
3 yeas
-
Widely Used:
-
Compatible with a wide range of LED lights
-
Certificate:
-
CE RoHS
Quick Details
-
Usage:
-
LED Cabinet Light sensor switch
-
Series:
-
LED Cabinet Light sensor switch
-
Features:
-
On/Off Dimmer Sensor Switch, Touch ON/OFF Dimming
-
Mounting Type:
-
adhesive tape for mounting, adhesive tape for mounting
-
Description:
-
touch On/Off Light sensor switch
-
Model Number:
-
BS014
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BESTER
-
Theory:
-
Touch sensor switch
-
Output:
-
DC12V/DC24V
-
Brand:
-
touch switch
-
Voltage - Supply:
-
12v 24v
-
Output Type:
-
12V 24V
-
Current - Supply:
-
3A
-
Operating Temperature:
-
-20℃~+55℃
-
Current - Supply (Max):
-
3A
-
Frequency:
-
50/60
-
Current:
-
3A
-
Voltage Rating:
-
12V/24V
-
Sensing Range:
-
<15cm
-
Current - Output (Max):
-
3A
-
Sensing Distance:
-
<15cm
-
Current - Output:
-
3A
-
Sensing Object:
-
touch switch
-
sensor type:
-
Dimmable Touch On/Off Switch
-
Dimension:
-
38*32*9mm
-
Input Voltage:
-
DC 12v /DC 24v
-
Output Voltage:
-
DC 12v /DC 24v
-
Input current:
-
3A
-
Cable:
-
input 5.5*DC2.1 input cable 100mm output cable 200mm
-
Warranty:
-
3 yeas
-
Widely Used:
-
Compatible with a wide range of LED lights
-
Certificate:
-
CE RoHS
Specification

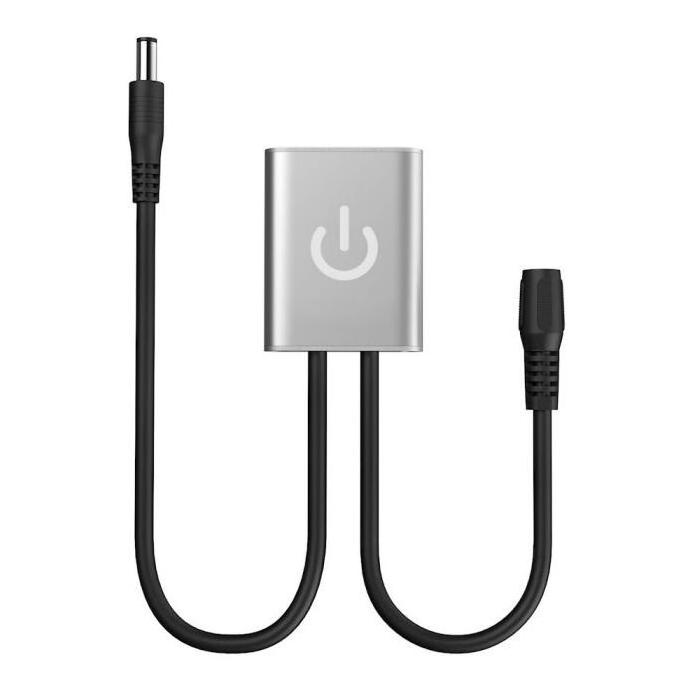

Touch On/Off Dimmer Sensor Switch Brightness Adjustment LED Cabinet Light sensor switch
The BS014 touch dimmable sensor can work with any DC 12V/24V LED lights, such as LED strip lights and cabinet lights. Simply touch the sensor to turn on/off the light. Press the touch switch for more than 5 seconds to dim the light and adjust the brightness to your demand.
|
Features
|
Input Voltage
|
DC12V/DC24V
|
|
|
||
|
|
Max Load Current
|
3A
|
|
|
||
|
|
Output Voltage
|
DC 12V /DC 24V
|
|
|
||
|
|
Dimension
|
38*32*9mm
|
|
|
||
|
|
Cable Length
|
Input cable 100mm, output cable 200mm
|
|
|
||
|
|
Switch Type
|
Dimmable Touch On/Off Switch
|
|
|
||
|
|
Connector
|
5.5*2.1mm
|
|
|
||
* Super Easy to Use
* Touch to turn on and off
* Press for 5 seconds to dim the light
Features & Benefits
* Touch ON/OFF: Slightly touch the switch. It works as a regular on/off switch for your LED lights.
* Dimming: To dim the light, press the touch switch for 5 seconds to adjust brightness freely.
* Easy to Install: The touch dimmer switch comes with adhesive tape for mounting to any clean, flat surface.
* Widely Used: Compatible with a wide range of LED lights, such as cabinet lights, rigid bars, strips, and panel lights.
