Brand: GX series,
•Overhead valve (OHV) design, lower operation temperature, powerful drive and reliability and durability, and it save more oil.
• Cast iron casing does not only effectively improve lubrication, but also makes engine more wear-resistant and prolongs engine life.
• Automatic alarm and stop at low oil level, which prevents the engine to work at low oil level and gives more protection to engine.
• Metal cam and forged crankshaft makes engine more reliable and durable.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
Gasoline engine Generator
-
Rated Voltage:
-
120V to 440V
-
Rated Current:
-
2A to 55A
-
Speed:
-
3000/3600RPM
-
Frequency:
-
50HZ/60HZ
-
Product name:
-
Generator
-
Starting system:
-
Recoil Start/Electric Start optional
-
Certificate:
-
ISO CE
-
Function:
-
Small Generator Provide Electric Power
-
Color:
-
Customer Required
-
Type:
-
Open Frame
-
Output Power:
-
2kw to 10kw generator
-
Exporting countries:
-
all over the world
-
PACKING:
-
Carton Packing 1set/1carton
-
Certification:
-
CE/ISO
Quick Details
-
Warranty:
-
1 year, One Year
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
JET POWER
-
Model Number:
-
Gasoline engine Generator
-
Rated Voltage:
-
120V to 440V
-
Rated Current:
-
2A to 55A
-
Speed:
-
3000/3600RPM
-
Frequency:
-
50HZ/60HZ
-
Product name:
-
Generator
-
Starting system:
-
Recoil Start/Electric Start optional
-
Certificate:
-
ISO CE
-
Function:
-
Small Generator Provide Electric Power
-
Color:
-
Customer Required
-
Type:
-
Open Frame
-
Output Power:
-
2kw to 10kw generator
-
Exporting countries:
-
all over the world
-
PACKING:
-
Carton Packing 1set/1carton
-
Certification:
-
CE/ISO
Specification
The following list is one of ur choice . If you want to see the other brand , please contact us .
|
Model
|

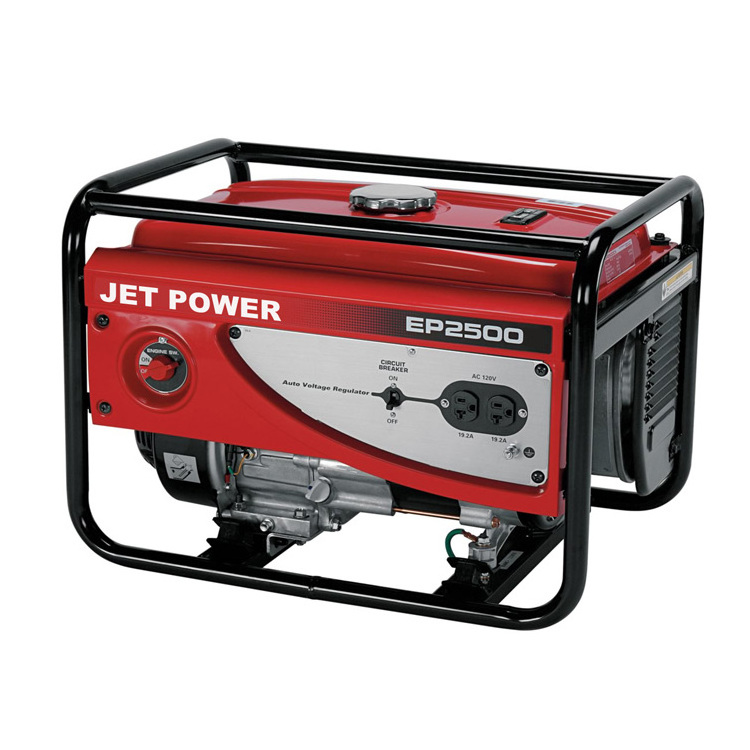

EP2500
|
EP2600
|
EP4000
|
EP4500
|
EP6500
|
EP15000E
|
|
AC Frequency (Hz)
|
50Hz/60Hz
|
50Hz/60Hz
|
50Hz/60Hz
|
50Hz/60Hz
|
50Hz/60Hz
|
50Hz/60Hz
|
|
AC Output voltage(V)
|
110;120;220;230;240 optional
|
110;120;220;230;240
optional
|
110;120;220;230;240, optional
|
110;120;220; 230;240 ,optional
|
110;120;220;230;240; optional
|
110;120;220;230;240; optional
|
|
Rated AC Output
|
2000W
|
2000W
|
2800W
|
3500W
|
5000W
|
10000
|
|
Max.AC Output
|
2200W
|
2200W
|
3000W
|
4000W
|
5500W
|
11000
|
|
Power Factor
|
1.0
|
1.0
|
1.0
|
1.0
|
1.0
|
1.0
|
|
DC Output
|
12V/8.3A
|
12V/8.3A
|
12V/8.3A
|
12V/8.3A
|
12V/8.3A
|
12V/8.3A
|
|
Engine
|
GP160
|
GX160
|
GP200
|
GX270
|
GX390
|
GX690
|
|
Type
|
Air-Cooled, Four-Stroke, OHV Single Cylinder
|
Air-Cooled, Four-Stroke, OHV Single Cylinder
|
Air-Cooled, Four-Stroke, OHV Single Cylinder
|
Air-Cooled, Four-Stroke, OHV Single Cylinder
|
Air-Cooled, Four-Stroke, OHV Single Cylinder
|
V-2* Cylinder Air-cooled 4-stroke OHV
|
|
Displacement(cc)
|
163
|
163
|
196
|
270
|
389
|
688
|
|
Starting System
|
Recoil
|
Recoil
|
Recoil
|
Recoil
|
Recoil
|
Electric with battery
|
|
Lubrication oil
|
SAE 10W/30
|
SAE 10W/30
|
SAE 10W/30
|
SAE 10W/30
|
SAE 10W/30
|
SAE 10W/30
|
|
Fuel Tank Capacity(l)
|
12
|
12
|
12
|
25
|
25
|
25
|
|
Continuous Work(h)
|
13
|
13
|
12
|
7.4
|
7.4
|
4.6
|
|
Noise Level LwA dB(A)
|
73
|
73
|
73
|
73
|
73
|
73
|
|
Dim(mm)
|
590X445X435
|
590X445X435
|
590X445X435
|
695 x 530 x 570
|
695 x 530 x 570
|
913 x 541 x 570
|
|
Gross Weight(kg)
|
42
|
42
|
43
|
73
|
73
|
161
|
|
20ft Container Qty
|
235
|
235
|
235
|
136
|
136
|
72
|
|
40ft Container Qty
|
480
|
480
|
480
|
280
|
280
|
150
|
|
Warranty
|
1 Years Limited Warranty
|
1 Years Limited Warranty
|
1 Years Limited Warranty
|
1 Years Limited Warranty
|
1 Years Limited Warranty
|
1 Years Limited Warranty
|
Photos
Main Features
• With GX series, original strong commercial engine.
• Generator set with AVR, Voltage adjust.
• Low Oil sensor protection.
• Cradle, Overall protection, easy move and storage.
• Widely option for control panel, EU, US and AU receptacle for choice.
• Self-start and remoter start as an optional.
• Frequency, 50/60 Hz. Voltage, including, 110/150/120/220/230/240V to be optional.
• Wheels and handle optional
• Start, Recoil or E-start.
• Single Phase or Three Phase, （380/400/415V）optional.
Detail pictures
Type 1
Type 2
Type 3
Type 4 Astra Korea
Our main products gasoline generator set
Detailed Image
Engine Parts
Alternator Features
Alternator full power design
• Alternator brushless type design, free maintenance cost
• Alternator IP23 protect
• Alternator F class insulation
• Alternator single bearing design
• Alternator with aluminums cooled fan
• multiform voltage choose including, 110/150/120/220/230/240V
Certifications
Packing & Delivery
|
JETPOWER Air-cooled gasoline Generator,Packaging
|
|
|
|
Size
|
Depend on the gasoline generator
|
|
|
Weight
|
Depend on the gasoline generator
|
|
|
Packaging Details
|
1.Carton packing, optional color carton and pallet.
2.according to customers special request.
|
|
Our Company
FUZHOU JET ELECTRIC MACHINERY CO., LTD
It is a leadind manufacturer focus on Gasonline Generators, Diesel Generators, Motor for 12 years, The factory is located in Fuan City Fujian provice, which is a well-known electrical and machine city in China. For more convenient and efficient business, we set up company in HONGKONG and FUZHO CITY.
