Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CMP metal push button switch
-
Model Number:
-
MP019S/F11Z-EX
-
The Crust Material:
-
stainless steel (Very Thick and heavy)
-
Thread diameter:
-
19mm
-
The Front Shape:
-
high Flat
-
Operation Type:
-
Momentary
-
Contact material:
-
Silver plated gold
-
Contact Configuration:
-
1NO 1NC OR 2N0 2NC
-
Panel thickness:
-
1-10mm
-
Dielectric Intensity:
-
2000VAC
-
Terminal Type:
-
Pin Terminal(2.8mm*0.5mm)
Quick Details
-
Protection Level:
-
IP68,IK10
-
Max. Current:
-
5Amper
-
Max. Voltage:
-
250VoltAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CMP metal push button switch
-
Model Number:
-
MP019S/F11Z-EX
-
The Crust Material:
-
stainless steel (Very Thick and heavy)
-
Thread diameter:
-
19mm
-
The Front Shape:
-
high Flat
-
Operation Type:
-
Momentary
-
Contact material:
-
Silver plated gold
-
Contact Configuration:
-
1NO 1NC OR 2N0 2NC
-
Panel thickness:
-
1-10mm
-
Dielectric Intensity:
-
2000VAC
-
Terminal Type:
-
Pin Terminal(2.8mm*0.5mm)

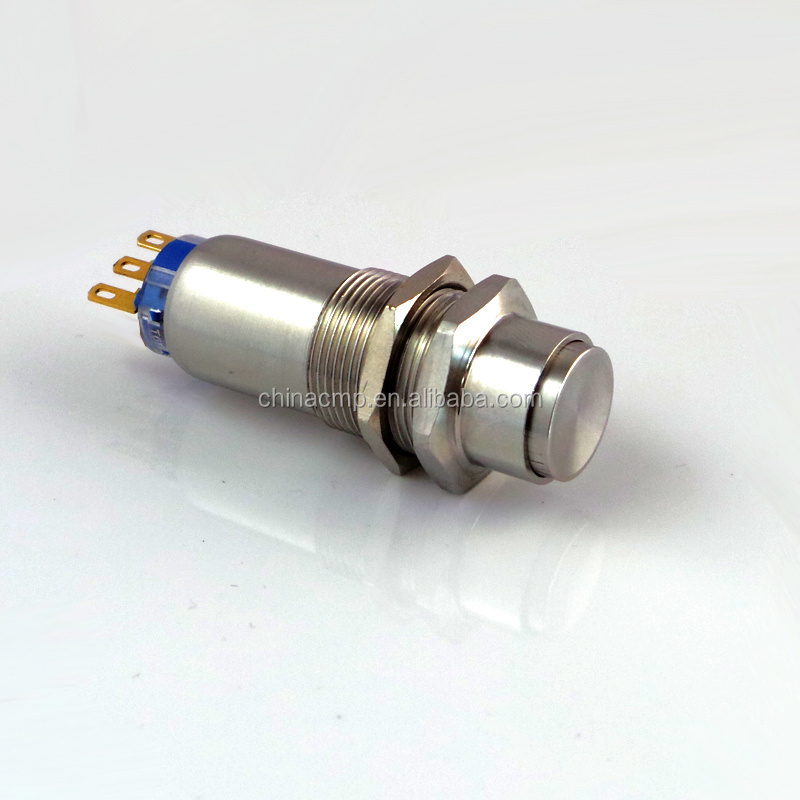

Long Life, Heavy-duty explosion proof stainless steel push button Very Thick and heavy crust Metal anti Vandal switch
Metal Anti Vandal Heavy Weight Thicker Stainless steel Crust
Explosion-proof Push Button Waterproof IP68 Latching ON OFF Switch
Applications: Used in harsh environment
Special & technology Point
1.Heavy-duty Explosion-proof Push Button Switch
2.Whole Metal Crust by CNC Machine turning
3.More Thicker Crust , Not Easy to be damaged !
4.50g (Heavy weight! with small size)
Terminal Type: Solder Terminal 3pins .(2.8*0.5mm)
. Long life expectancy (50 million cycles)
. Vandal resistant and Waterproof ip68
· Fast and easy to install
. Easy to clean metal surface
Push once for on
Push again for off
CE TUV QUALITY
Our products have achieved TUV,CE and passed SGS test.We also offer OEM and ODM
service.
delivery time:3days
shipping: DHL,EMS,TNT,Fedex with discount freight price
packing :
40pcs in one plastic box and 10 pcs plastic box in a carton.If you need package pictures and change package by your request, please feel free to contact me .Email andycmp at 163 dot COM, sk ype is andy2tian
