Quick Details
-
Input Voltage(V):
-
AC100-240V
-
Lamp Luminous Flux(lm):
-
1800
-
CRI (Ra>):
-
85
-
Working Temperature(℃):
-
-40 - 60
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VAKESUN
-
Model Number:
-
VWL-020
-

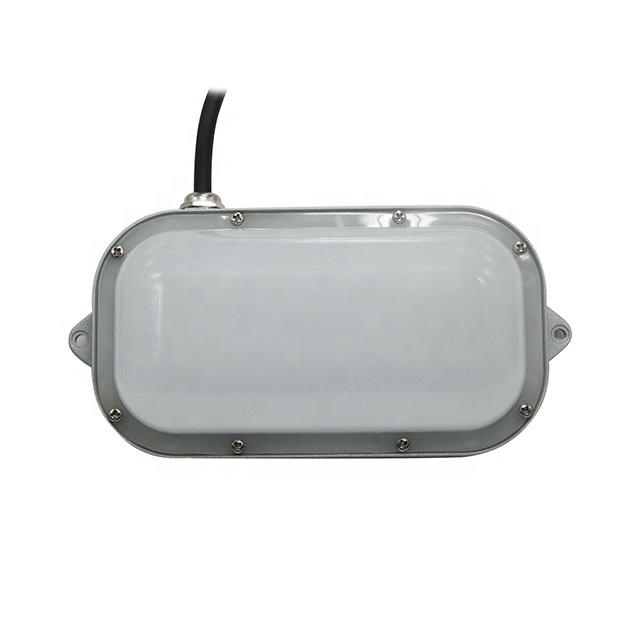

Product name:
-
20w cold storage lights
-
Power:
-
20W
-
Light Color:
-
3000K / 4000K / 6000K
-
Lumen:
-
1960LM
-
LED Source:
-
SMD 3030
-
Beam Angle:
-
120degree
-
Protection Grade:
-
IP67
-
Working Humidity:
-
10%~95%
-
Installation:
-
Ceiling by screws
-
G.W./CTN:
-
17KG
Quick Details
-
Warranty(Year):
-
3-Year
-
Color Temperature(CCT):
-
3000K/4000K/6000K
-
Product Weight（kg）:
-
0.6
-
Input Voltage(V):
-
AC100-240V
-
Lamp Luminous Flux(lm):
-
1800
-
CRI (Ra>):
-
85
-
Working Temperature(℃):
-
-40 - 60
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VAKESUN
-
Model Number:
-
VWL-020
-
Product name:
-
20w cold storage lights
-
Power:
-
20W
-
Light Color:
-
3000K / 4000K / 6000K
-
Lumen:
-
1960LM
-
LED Source:
-
SMD 3030
-
Beam Angle:
-
120degree
-
Protection Grade:
-
IP67
-
Working Humidity:
-
10%~95%
-
Installation:
-
Ceiling by screws
-
G.W./CTN:
-
17KG
20w 25w 30w luminaire refrigerating chilling freezing chamber led light IP67 AC90-265v cold storage lighting fixture
Cold Room Led Fixture, What is it Good?
Easy To Clean
The design of the luminaire should allow for easy removal of impurities by brushing or hosing down through high-pressure cleaners. This means that the lighting fixtures require the correct high IP protection to ensure that they are not damaged by water.
Solid
The use of the right material in design ensures that the light fixture is robust and will last longer. The cold environment will subject the light fixture to a lot of mechanical damage, so it should be designed with this in mind. LED walk-in cooler lights should also withstand electromagnetic interference while working.
Little Heat Production
All LED light fixtures for use in cold rooms should emit very little heat. They must work correctly in the low-temperature environment and should achieve an average of 150 lux.
Low Maintenance
LED lighting for cold rooms should be virtually maintenance-free, eliminating the need for high labor costs and the frequent replacement of burnt out luminaires.
Low Energy Consumption
Some LEDs consume less energy than others. If these are used in cold rooms, they will have significantly lower operational costs compared to conventional light sources. The initial costs for LED lighting could be higher than for traditional light sources, but their low maintenance and energy consumption counterbalance the costs. These two factors ensure that the money invested on LED technology is recouped quickly.
1/8. 20W IP67 led lights for cold storage:
Advantages:
1. 2020 New design, Private model
2. Waterproof: IP67, Anti-freeze, Safety, Long life Span
3. Working Temperature: -40℃~ 66℃
4. Fire-resistance rating: V0
5. Thick PC cover, bearing level: 80KG
6. Anti-pulling: 20KG
7. Warranty: 3 & 5 years optional
8. Application: very popular for Waterproof, Coldproof, Fireproof & Explosion-proof , especially -40℃ working temperature for Cold storage / Refrigeratory
20W Cold Storage Led Lights Spec Chart:
| Part No.: | VWL-020 |
| Power: | 20W |
| Voltage: | AC90-265V |
| Material: | Fire-Proof PC Cover + Aluminum Base + Stainless steel screws |
| Working Temperature: | -40℃~ 66℃ ; -40°F ~ 150.8°F. |
| Led Chip: | SMD 3030*35PCS |
| Lighting Area: | 15m²-20m² |
| Life Span: | >50000hrs |
| Size (Side Power Lead): | 194*92.6*57.5mm |
| Size (Back Power Lead): | 194*92.6*62.8mm |
| Color Temperature: | 3000K/4000K/6000K |
| Warranty: | 3 Years |
| Certificates: | CE & RoHS |
| G.W.: | 0.6KG/PC |
| Inner Box: | 20.5*12*12.5CM |
| QTY/CTN: | 30PCS/CTN |
| G.W/CTN | 17KG |
| Carton Size (Side Power Lead) : | 63*22*43CM |
| Carton Size (Back Power Lead) : | 67*23*39CM |
| Application: | Fishing boats, Hotels, kitchens, passageways, cold storage, yachts, warehouses, corridors, bathrooms, balconies, gardens, garages |
2/8. 20w IP67 led lights for cold storage:
Product overview: (Click me to know more details)
Fire-proof, explosion-proof, water-proof, moisture-proof, fog-proof, heat-proof!!
30W (Square) & 20W (Rectangle)
The detailed instructer:
Two Kinds of position for power line, 1. Side outlet , 2. Back outlet , choose the one you perfer:
High temp test and flammability test for cold storage led lights:
Fire rated material, fire-proof test passed:
Led Driver freezing test (-40℃~ 66℃):
Low temperature test, professional equipment -42°C low temperature enclosed test:
Cold storage lights Install Instruction: (click me to know more install details)
Shipping:
1. Ready to Ship, Regular Par Bulbs In Stock.
2. Samples : 1-2 work days.
3. PAR30 Bulk Order: 6-10 workdays
Really fast delivery, we will be the right choice for urgent order, Which We have sufficient material preparation and controllable for delivery date.
Shipping: (Small Quantity): Express (DHL/UPS/FedEx/TNT 3-5 work days);
Bulk Order (By Sea Shipping or DDP)
Application:
