Quick Details
-
Weight (KG):
-
1800
-
Voltage:
-
220V/50-60Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Mingke
-
Dimension(L*W*H):
-
3560*1940*3200mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Packing speed:
-
30-50bags/min
-
Bag size:
-
(w) 80-200 (L)50-300 mm
-
Max film width:
-
420mm
-
Film thickness:
-
0.04-0.10 mm
-
Sealing type:
-
Back sealing
-
Air consumption:
-
0.4m3/min 0.6MPa
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE/ISO
Quick Details
-
Function:
-
FILLING, Sealing, measuring ,cutting
-
Packaging Type:
-
Bags, Film, Pouch, sachet
-
Packaging Material:
-
Paper, Plastic, Film
-
Weight (KG):
-
1800
-
Voltage:
-
220V/50-60Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Mingke
-
Dimension(L*W*H):
-
3560*1940*3200mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Packing speed:
-
30-50bags/min
-
Bag size:
-
(w) 80-200 (L)50-300 mm
-
Max film width:
-
420mm
-
Film thickness:
-
0.04-0.10 mm
-
Sealing type:
-
Back sealing
-
Air consumption:
-
0.4m3/min 0.6MPa
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE/ISO

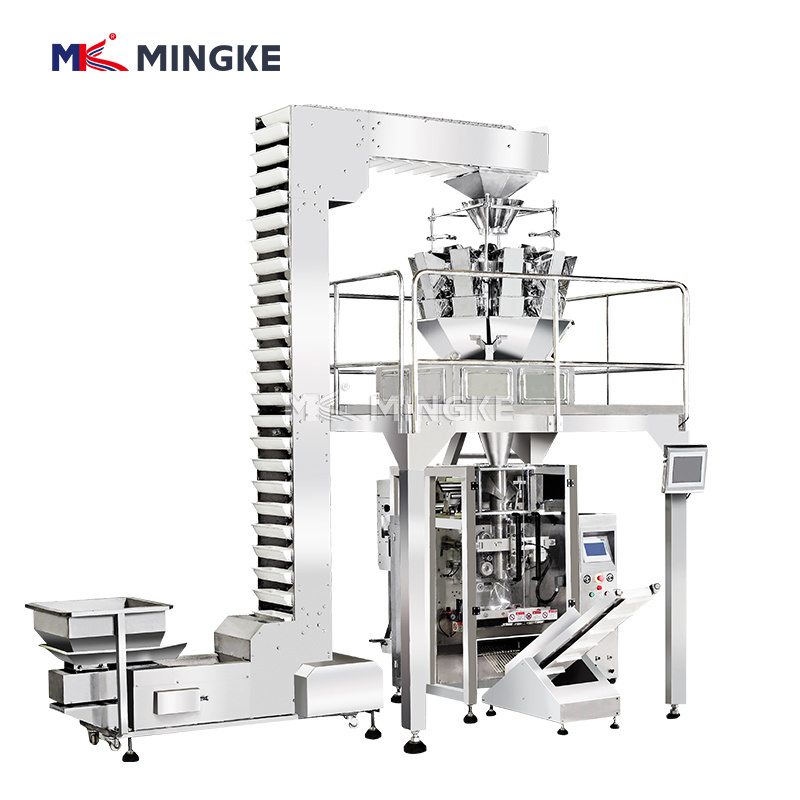

Lentil/banana chips/potato chips packing packaging machine price
|
Items |
Content |
|
Packing speed |
20-70 bag/min |
|
Bag size |
(L)60-300mm (W)80-200mm |
|
Bag making mode |
Pillow-type bag, standing bag, punch |
|
Range of measuring |
150-1000ml |
|
Max packaging film width |
420mm |
|
Thickness of film |
0.04-0.08mm |
|
Air consumption |
0.8 Mpa 0.5m/min |
|
Main power/voltage |
2.2KW/220V 50-60Hz |
|
Dimension |
1320×920×1392mm |
|
The weight of switchboard |
450kg |
Main feature:
1.Imported PLC computer control system with human-machine interface; touch screen is simple and direct-viewing in operation;
2.precise positioning with servo film transporting system; excellent complete machine performance and nice packing;
3.minimize the loss with complete automatic warn protection function;
4. supported with metric device, the machine will automatically complete all packaging processes from measuring, feeding, filling, bag ma
5.the way of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements.
6.It could pack different kind of granule ,puffed food, rice, sugar etc.
|
Type large |
10-hopper scale |
|
Maximum weighing |
10-2000g |
|
Precision of weighing |
0.1-2g |
|
Speed of weighing |
80 bags /minute |
|
Power |
1000W Voltage: 220V |
|
Gross weight |
271kg |
|
Net weight |
220kg |
|
Preset number of product |
10 kinds |
|
Overall size(mm) |
1680(L)*1182(W)*1268H) |
Main feature:
* Range of application: dosing and weighing of small grain, powder material of daily food and condiment such as white sugar, salt, seed, rice, sodium glutamate, fodder, milk powder, coffee and sesame, etc.
* High precision data-type weighing sensor realizes precise weighing.
* Microcomputer control system with double vibration feeding and imported instrument; advanced technology and simple operation.
* Stainless steel sealed machine body; corrosion resistance and dust resistance.
* The measuring hopper can be disassembled rapidly; and it’s convenient in cleaning and maintenance.
* It can make different combination to enlarge weighing range according to customer’s requirements.
* With strong compatibility, it’s easy to be supported with other packing device.
