Quick Details
-
Brand Name:
-
Other
-
Model Number:
-
WS-C2960X-48TS-L
-
Place of Origin:
-
Beijing, China
-
Product Name:
-
Layer 2 Gigabit Ethernet network data access switch
-
Model:
-
WS-C2960X-48TS-L
-
Fixed Ports:
-
48*10/100/1000BASE-T Ethernet ports
-
Uplink Ports:
-
4*1GE SFP uplink ports
-
PoE Ports:
-
Not Supported
-
POE power budget:
-
None
-
Power Supply:
-
built-in AC power
-
Dimensions H x W x D:
-
4.5 x 27.9 x 44.5cm
-
Condition:
-
New original sealed packaging
-
Warranty:
-
1 Year
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
108 Gbps
-
Brand Name:
-
Other
-
Model Number:
-
WS-C2960X-48TS-L
-
Place of Origin:
-
Beijing, China
-
Product Name:
-
Layer 2 Gigabit Ethernet network data access switch
-
Model:
-
WS-C2960X-48TS-L
-
Fixed Ports:
-
48*10/100/1000BASE-T Ethernet ports
-
Uplink Ports:
-
4*1GE SFP uplink ports
-
PoE Ports:
-
Not Supported
-
POE power budget:
-
None
-
Power Supply:
-
built-in AC power
-
Dimensions H x W x D:
-
4.5 x 27.9 x 44.5cm
-
Condition:
-
New original sealed packaging
-
Warranty:
-
1 Year
Product overview
C2960-X and 2960-XR Series Switches Data Sheet
.

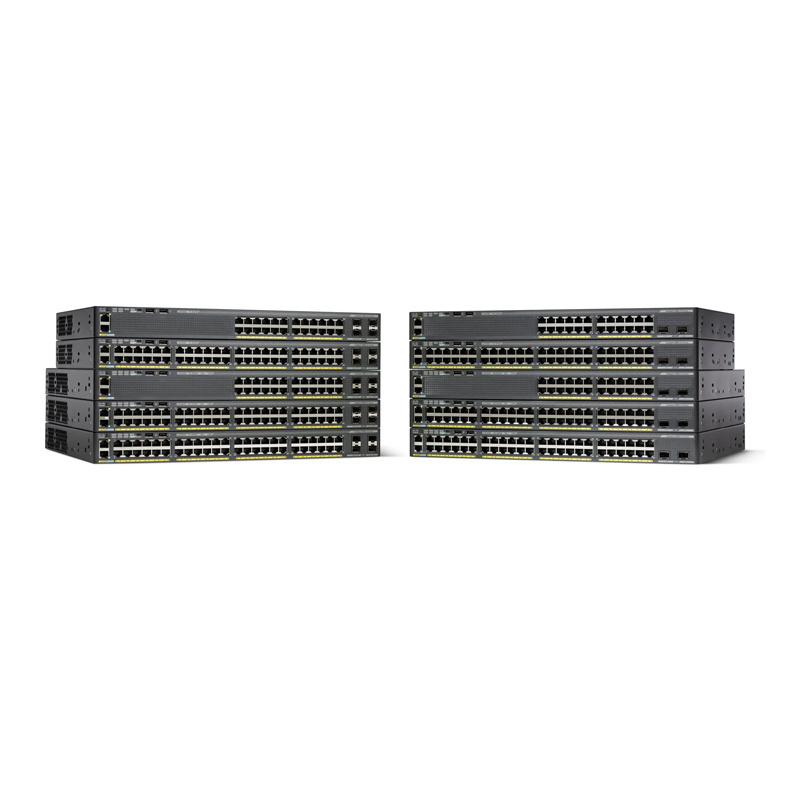

C2960-X and C2960-XR Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). They operate on IOS Software and support simple device management as well as network management. The C2960-X and C2960-XR Series provide easy device onboarding, configuration, monitoring, and troubleshooting.These fully managed switches can provide advanced Layer 2 and Layer 3 features as well as optional Power over Ethernet Plus (PoE+) power. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure, and energy-efficient business operations with intelligent services. The switches deliver enhanced application visibility, network reliability, and network resiliency.
|
Model
|
10/100/1000 Ethernet ports
|
Uplink interfaces
|
IOS Software image
|
Available PoE power
|
FlexStack-Plus and FlexStack-Extended capability
|
|
WS-C2960X-48FPD-L
|
48
|
2 SFP+
|
LAN Base
|
740W
|
Y
|
|
WS-C2960X-48LPD-L
|
48
|
2 SFP+
|
LAN Base
|
370W
|
Y
|
|
WS-C2960X-24PD-L
|
24
|
2 SFP+
|
LAN Base
|
370W
|
Y
|
|
WS-C2960X-48TD-L
|
48
|
2 SFP+
|
LAN Base
|
–
|
Y
|
|
WS-C2960X-24TD-L
|
24
|
2 SFP+
|
LAN Base
|
–
|
Y
|
|
WS-C2960X-48FPS-L
|
48
|
4 SFP
|
LAN Base
|
740W
|
Y
|
|
WS-C2960X-48LPS-L
|
48
|
4 SFP
|
LAN Base
|
370W
|
Y
|
|
WS-C2960X-24PS-L
|
24
|
4 SFP
|
LAN Base
|
370W
|
Y
|
|
WS-C2960X-24PSQ-L
|
24 (8 PoE)
|
2 SFP, 2 10/100/1000BT
|
LAN Base
|
110W
|
–
|
|
WS-C2960X-48TS-L
|
48
|
4 SFP
|
LAN Base
|
–
|
Y
|
|
WS-C2960X-24TS-L
|
24
|
4 SFP
|
LAN Base
|
–
|
Y
|
|
WS-C2960X-48TS-LL
|
48
|
2 SFP
|
LAN Lite
|
–
|
–
|
|
WS-C2960X-24TS-LL
|
24
|
2 SFP
|
LAN Lite
|
–
|
–
|
|
WS-C2960XR-48FPD-I
|
48
|
2 SFP+
|
IP Lite
|
740W
|
Y
|
|
WS-C2960XR-48LPD-I
|
48
|
2 SFP+
|
IP Lite
|
370W
|
Y
|
|
WS-C2960XR-24PD-I
|
24
|
2 SFP+
|
IP Lite
|
370W
|
Y
|
|
WS-C2960XR-48TD-I
|
48
|
2 SFP+
|
IP Lite
|
–
|
Y
|
|
WS-C2960XR-24TD-I
|
24
|
2 SFP+
|
IP Lite
|
–
|
Y
|
|
WS-C2960XR-48FPS-I
|
48
|
4 SFP
|
IP Lite
|
740W
|
Y
|
|
WS-C2960XR-48LPS-I
|
48
|
4 SFP
|
IP Lite
|
370W
|
Y
|
|
WS-C2960XR-24PS-I
|
24
|
4 SFP
|
IP Lite
|
370W
|
Y
|
|
WS-C2960XR-48TS-I
|
48
|
4 SFP
|
IP Lite
|
–
|
Y
|
|
WS-C2960XR-24TS-I
|
24
|
4 SFP
|
IP Lite
|
–
|
Y
|
Related products
Hubei Netstar Yiyue Technology Co., Ltd
Do you have any questions about these products?
Contact us
Chat now
or
weiss@hkbarrette.com
Models configuration and ordering table
|
Stacking Cables
|
StackWise Cable Ordering information-Description
|
|
C2960X-STACK
|
FlexStack-Plus hot-swappable stacking module
|
|
CAB-STK-E-0.5M
|
Stacking cable with a 0.5 m length
|
|
CAB-STK-E-1M
|
Stacking cable with a 1.0 m length
|
|
CAB-STK-E-3M
|
Stacking cable with a 3.0 m length
|
|
Power supply
|
C2960-X Series redundant power supply options
|
|
PWR-RPS2300
|
Redundant Power System 2300 and blower, no power supply
|
|
BLNK-RPS2300=
|
Spare bay insert for Redundant Power System 2300 for C2960-X Series Switches
|
|
CAB-RPS2300-E=
|
Spare RPS 2300 cable for C2960-X Series Switches
|
|
BLWR-RPS2300=
|
Spare 45 CFM blower for RPS 2300
|
|
C3K-PWR-750WAC=
|
RPS 2300 750W AC power supply spare for C2960-X Series
|
|
Power supply
|
C2960-XR Series power supply options
|
|
PWR-C2-250WAC=
|
Spare FRU power supply and fan for all non-PoE 2960-XR switches, provides 250W AC of power
|
|
PWR-C2-640WAC=
|
Spare FRU power supply and fan for all 370W PoE+ 2960-XR switches, provides 640W AC of power
|
|
PWR-C2-1025WAC=
|
Spare FRU power supply and fan for all 740W PoE+ 2960-XR switches, provides 1025W AC of power
|
C
2960-X and 2960-XR Series PoE and PoE+ power capacity
.
An external redundant power supply option is supported on the C2960-X Series Switches. These switches come with one fixed power supply and an option for an external redundant power supply (Redundant Power System [RPS] 2300).
Dual redundant power supplies are supported on the C2960-XR Series Switches. These switches ship with one power supply by default.The second power supply can be purchased at the time of ordering the switch or as a spare. These power supplies have built-in fans to provide cooling.
|
Model
|
Maximum number of PoE+
(IEEE 802.3at) ports
|
Maximum number of PoE (IEEE 802.3af) ports
|
Available PoE power
(single PS source)
|
|
WS-C2960X-48FPD-L
|
24 ports up to 30W
|
48 ports up to 15.4W
|
740W
|
|
WS-C2960X-48LPD-L
|
12 ports up to 30W
|
24 ports up to 15.4W
|
370W
|
|
WS-C2960X-24PD-L
|
12 ports up to 30W
|
24 ports up to 15.4W
|
370W
|
|
WS-C2960X-48FPS-L
|
24 ports up to 30W
|
48 ports up to 15.4W
|
740W
|
|
WS-C2960X-48LPS-L
|
12 ports up to 30W
|
24 ports up to 15.4W
|
370W
|
|
WS-C2960X-24PS-L
|
12 ports up to 30W
|
24 ports up to 15.4W
|
370W
|
|
WS-C2960X-24PSQ-L
|
3 ports up to 30W
|
7 ports up to 15.4W
|
110W
|
|
WS-C2960XR-48FPD-I
|
24 ports up to 30W
|
48 ports up to 15.4W
|
740W
|
|
WS-C2960XR-48LPD-I
|
12 ports up to 30W
|
24 ports up to 15.4W
|
370W
|
|
WS-C2960XR-24PD-I
|
12 ports up to 30W
|
24 ports up to 15.4W
|
370W
|
|
WS-C2960XR-48FPS-I
|
24 ports up to 30W
|
48 ports up to 15.4W
|
740W
|
|
WS-C2960XR-48LPS-I
|
12 ports up to 30W
|
24 ports up to 15.4W
|
370W
|
|
WS-C2960XR-24PS-I
|
12 ports up to 30W
|
24 ports up to 15.4W
|
370W
|
C2960-X and C2960-XR
Switches Models
C2960-X and C2960-XR Series Switches ordering information.
|
WS-C2960X-24TS-LL
|
2960-X 24 GigE, 2 x 1G SFP, LAN Lite
|
|
WS-C2960X-24TS-L
|
2960-X 24 GigE, 4 x 1G SFP, LAN Base
|
|
WS-C2960X-48TS-LL
|
2960-X 48 GigE, 2 x 1G SFP, LAN Lite
|
|
WS-C2960X-48TS-L
|
2960-X 48 GigE, 4 x 1G SFP, LAN Base
|
|
WS-C2960X-24TD-L
|
2960-X 24 GigE, 2 x 10G SFP+, LAN Base
|
|
WS-C2960X-48TD-L
|
2960-X 48 GigE, 2 x 10G SFP+, LAN Base
|
|
WS-C2960X-24PS-L
|
2960-X 24 GigE PoE 370W, 4 x 1G SFP, LAN Base
|
|
WS-C2960X-24PSQ-L
|
2960-X 24 GigE PoE 110W, 2xSFP + 2x1GBT, LAN Base
|
|
WS-C2960X-24PD-L
|
2960-X 24 GigE PoE 370W, 2 x 10G SFP+, LAN Base
|
|
WS-C2960X-48LPS-L
|
2960-X 48 GigE PoE 370W, 4 x 1G SFP, LAN Base
|
|
WS-C2960X-48LPD-L
|
2960-X 48 GigE PoE 370W, 2 x 10G SFP+ LAN Base
|
|
WS-C2960X-48FPS-L
|
2960-X 48 GigE PoE 740W, 4 x 1G SFP, LAN Base
|
|
WS-C2960X-48FPD-L
|
2960-X 48 GigE PoE 740W, 2 x 10G SFP+, LAN Base
|
|
WS-C2960XR-24TS-I
|
2960-XR 24 GigE, 4 x 1G SFP, IP Lite
|
|
WS-C2960XR-24TD-I
|
2960-XR 24 GigE, 2 x 10G SFP+, IP Lite
|
|
WS-C2960XR-48TS-I
|
2960-XR 48 GigE, 4 x 1G SFP, IP Lite
|
|
WS-C2960XR-48TD-I
|
2960-XR 48 GigE, 2 x 10G SFP+, IP Lite
|
|
WS-C2960XR-24PS-I
|
2960-XR 24 GigE PoE 370W, 4 x 1G SFP, IP Lite
|
|
WS-C2960XR-24PD-I
|
2960-XR 24 GigE PoE 370W, 2 x 10G SFP+, IP Lite
|
|
WS-C2960XR-48LPS-I
|
2960-XR 48 GigE PoE 370W, 4 x 1G SFP, IP Lite
|
|
WS-C2960XR-48LPD-I
|
2960-XR 48 GigE PoE 370W, 2 x 10G SFP+, IP Lite
|
|
WS-C2960XR-48FPS-I
|
2960-XR 48 GigE PoE 740W, 4 x 1G SFP, IP Lite
|
|
WS-C2960XR-48FPD-I
|
2960-XR 48 GigE PoE 740W, 2 x 10G SFP+, IP Lite
|
Supported SFP/SFP+ modules. view more >>
C2960-X/XR Series switches support a wide range of optics. Because the list of supported optics is updated on a regular basis,So we only showed a portion of the optical module models.
|
Part number
|
Description
|
|
GLC-SX-MMD
|
1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
|
|
GLC-SX-MMD=
|
1000BASE-SX SFP transceiver module, MMF, 850nm, DOM spare
|
|
GLC-LH-SMD
|
1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM
|
|
GLC-LH-SMD=
|
1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM spare
|
|
GLC-LX-SM-RGD=
|
1000Mbps Single Mode Rugged SFP spare
|
|
GLC-TE
|
1000BASE-T SFP transceiver module for Category 5 copper wire
|
|
GLC-TE=
|
1000BASE-T SFP transceiver module for Category 5 copper wire spare
|
|
GLC-EX-SMD=
|
1000BASE-EX SFP transceiver module, SMF, 1310nm, DOM spare
|
|
GLC-ZX-SMD=
|
1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM spare
|
|
SFP-10G-SR
|
10GBASE-SR SFP Module
|
|
SFP-10G-SR=
|
10GBASE-SR SFP Module spare
|
|
SFP-10G-SR-S
|
10GBASE-SR SFP Module, Enterprise-Class
|
|
SFP-10G-SR-S=
|
10GBASE-SR SFP Module, Enterprise-Class spare
|
|
SFP-10G-LR
|
10GBASE-LR SFP Module
|
|
SFP-10G-LR=
|
10GBASE-LR SFP Module spare
|
|
SFP-10G-LR-S
|
10GBASE-LR SFP Module, Enterprise-Class
|
|
SFP-10G-LR-S=
|
10GBASE-LR SFP Module, Enterprise-Class spare
|
|
SFP-10G-ER
|
10GBASE-ER SFP Module
|
|
SFP-10G-ER=
|
10GBASE-ER SFP Module spare
|
|
SFP-10G-ZR
|
10GBASE-ZR SFP10G Module for SMF
|
|
SFP-10G-ZR=
|
10GBASE-ZR SFP10G Module for SMF spare
|
