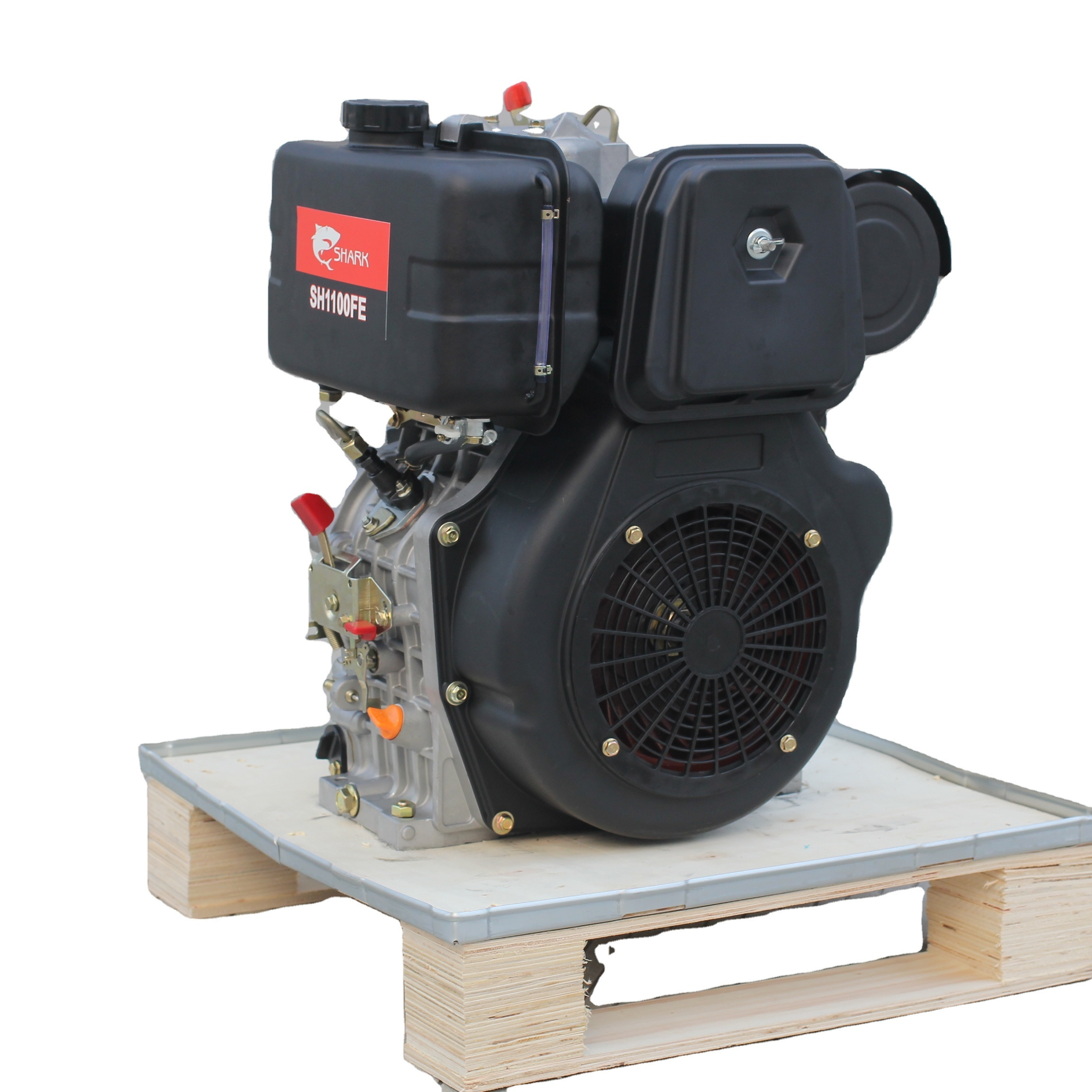

15hp Marine Diesel Engine Outboard Boat-1100FE
15hp Marine Diesel Engine Outboard Boat-1100FE
15hp Marine Diesel Engine Outboard Boat-1100FE
15hp Marine Diesel Engine Outboard Boat-1100FE
15hp Marine Diesel Engine Outboard Boat-1100FE
15hp Marine Diesel Engine Outboard Boat-1100FE
15hp Marine Diesel Engine Outboard Boat-1100FE
15hp Marine Diesel Engine Outboard Boat-1100FE

15hp Marine Diesel Engine Outboard Boat-1100FE

FOB Reference Price: Get Latest Price
≥1 Sets
US $380
≥100 Sets
US $360
≥200 Sets
US $350
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Jiangsu, China
Brand Name:
KAIST
Dimension(L*W*H):
525x490x595
Weight:
62
Rated power/speed:
9.6KW/3600RPM
Product name:
Air Cooled Single Cylinder Diesel Machinery
Engine type:
Air Cooled Single Cylinder
Rated Power:
9.6Kw
Starting system:
Electric Starter
Engine Model:
1100FE
Type:
Air Cooled 1-Cylinder 4-Stroke Diesel Engine
Name:
13hp Diesel Engine
BORE*STROKE:
100*85mm
Certification:
CE

Quick Details

Displacement:
0.668L, 668ML
Emission Standard:
Euro 3
Power:
10 kW
Place of Origin:
Jiangsu, China
Brand Name:
KAIST
Dimension(L*W*H):
525x490x595
Weight:
62
Rated power/speed:
9.6KW/3600RPM
Product name:
Air Cooled Single Cylinder Diesel Machinery
Engine type:
Air Cooled Single Cylinder
Rated Power:
9.6Kw
Starting system:
Electric Starter
Engine Model:
1100FE
Type:
Air Cooled 1-Cylinder 4-Stroke Diesel Engine
Name:
13hp Diesel Engine
BORE*STROKE:
100*85mm
Certification:
CE
Products Description
KAIST Series Diesel engine is one four stroke compression ignition with crankshaft power take off (3000/3600rpm)small diesel engine, include Single Cylinder Air Cooled Diesel engine (From to ), L-Twin Cylinder Air Cooled Diesel Engine(292 Max 23HP),V-Twin Cylinder Water Cooled Diesel Engine(2V80(EV80) Max21HP), V-Twin Cylinder Air Cooled Diesel Engine(2V88 Max22HP 2V92 Max24HP 2V95 Max28HP)

Main Features:
● High Power Output, Strong Over load Capacity.
With advance technology and strictly QC system, all the KAIST diesel engine have been tested, to make sure all the engine are
qualified.

● Simple Structure, Stable Performance.
KAIST Diesel engine with Aluminum cylinder body and head to make the engine light weight and small volume, which can be easy
move, operation and maintenance.

● High efficiency,Eco friendly
KAIST diesel engine have do some improvement in the fuel supplying system, which make the engine high efficiency

● Wide application
KAIST diesel engine from 2HP to 23HP, and with different type power take off crankshaft, can reach many different power equipment
requirement.


Application Area

Agriculture Machinery,Vehicle, Boat, Generator, Garden Machinery, Construction Machinery etc
PRODUCT SPECIFICATIONS
Model No
192F/FE
195F/FE
1100FE
Engine Type
Air Cooled 1-Cylinder 4-Stroke Diesel Engine
Bore*Stroke
(mm)
92*75
95*75
100*85
Displacement
(ml)
498
531
668
Compression Ratio
19:01
19:01
19:01
Rated Power
(Kw/Hp)
7.6/10.3
8.6/11.7
8.3/11.3
9.0/12.2
9.6/13.0
Rated Speed
(rpm)
3000
3600
3000
3600
3000
Fuel Consumption
(g/kwh)
276-286
276-286
276-286
Fuel Tank Capacity
(L)
5.5
5.5
6.5
Starting System
F:Manual Starter E:Electric Starter
Electric Starter
Power -Take-Off
Crankshaft
Overall Dimension
(LxWxH)(mm)
500x460x555
500x460x555
525x490x595
Dry Weight
(Kgs)
F:49 FE:55
F:50 FE:56
E:62
PRODUCT CONFIGURATION
