Quick Details
-
Customized support:
-
Yes
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Taidacent
-
Model Number:
-
8CH RF Relay Receiver and Transmitter
-
Operating Temperature:
-
-20°℃ - +70℃
-
Working voltage:
-
DC12v, DC24V, AC220v
-
Static current:
-
≤7mA
-
Receiving sensitivity:
-
≥-110dBm
-
Operating frequency:
-
315MHz / 433MHz
-
Control voltage:
-
AC and DC optional
-
Output current:
-
≤5A
-
Circuit board size:
-
120mm x 72mm x 19mm
-
Shell size:
-
126mm x 80mm x 30mm
-
Certification:
-
other
Quick Details
-
Max. Current:
-
10A
-
Max. Voltage:
-
AC220V
-
Network:
-
315mhz/433mhz RF
-
Customized support:
-
Yes
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Taidacent
-
Model Number:
-
8CH RF Relay Receiver and Transmitter
-
Operating Temperature:
-
-20°℃ - +70℃
-
Working voltage:
-
DC12v, DC24V, AC220v
-
Static current:
-
≤7mA
-
Receiving sensitivity:
-
≥-110dBm
-
Operating frequency:
-
315MHz / 433MHz
-
Control voltage:
-
AC and DC optional
-
Output current:
-
≤5A
-
Circuit board size:
-
120mm x 72mm x 19mm
-
Shell size:
-
126mm x 80mm x 30mm
-
Certification:
-
other

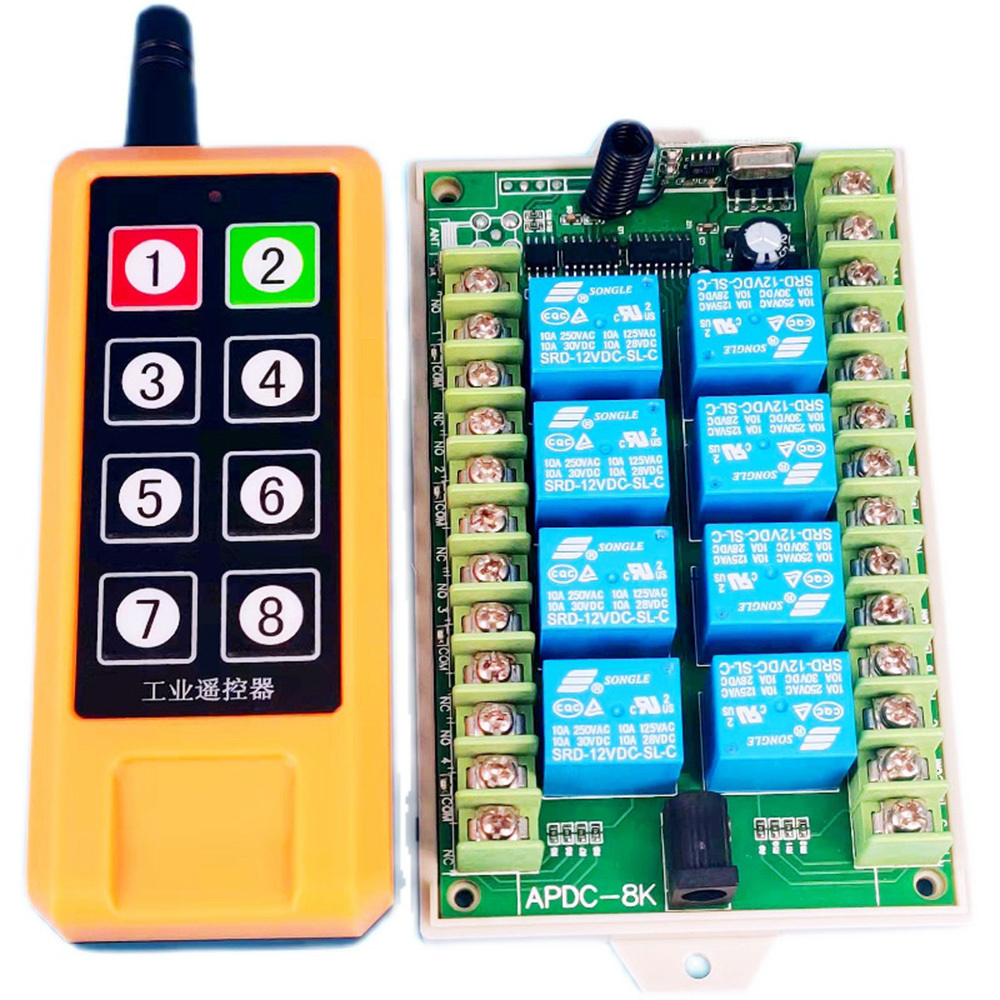

Taidacent 12V 24V Long Range 8CH DIN Rail RF Remote Control Switch 315mhz 433mhz 8 Channel Wireless Remote Control Switch
Specification
|
Network
|
315mhz/433mhz RF
|
|
Model Number
|
8CH RF Relay Receiver and Transmitter
|
|
Operating Temperature
|
-20°℃ - +70℃
|
|
Max. Current
|
10A
|
|
Max. Voltage
|
AC220V
|
|
Working voltage
|
DC12v, DC24V, AC220v
|
|
Static current
|
≤7mA
|
|
Receiving sensitivity
|
≥-110dBm
|
|
Operating frequency
|
315MHz / 433MHz
|
|
Control voltage
|
AC and DC optional
|
|
Output current
|
≤5A
|
|
Circuit board size
|
120mm x 72mm x 19mm
|
|
Shell size
|
126mm x 80mm x 30mm
|
|
Application
|
light lamp motor remote control
|
Working Mode
1. Signal self-locking - press the No. 1 button on the remote control to learn
2. The signal is not locked - press the No. 2 button on the remote control to learn
3. Signal interlocking - press the No. 3 button on the remote control to learn
Output Method
1. Signal self-locking: Press the No. 1 key of the remote control to learn, press the No. 1 key of the remote control, the relay corresponding to the No. 1 key will pick up and hold, and then press the No. 1 key, the No. 1 relay will be disconnected; press the No. 2 key of the remote control , the No. 2 key corresponds to the relay attracting and holding, and then pressing the No. 2 key, the No. 2 relay is disconnected; the 3~8 keys work in this cycle.
2. The signal is unlocked: Press the No. 2 key of the remote control to learn, press and hold the No. 1 key of the remote control, the relay corresponding to the No. 1 key is closed, and the relay is disconnected after releasing the hand, press the No. 2 key, corresponding to the No. 2 key The relay pulls in and disconnects after letting go; 3~8 keys work in this cycle.
3. Signal interlocking: Press the No. 3 key of the remote control to learn, press the No. 1 key of the remote control, the corresponding No. 1 relay will pick up and hold, press the No. 2 key, the No. 1 relay will be disconnected, and the relay corresponding to the No. 2 key will pick up. Merge and hold; 3~8 keys work in this cycle.
4. Signals 1~4 channels self-locking and 5~8 channels non-locking coexist: press the No. 8 key on the remote control to learn the 8 relays corresponding to the remote control, of which 1~4 channels are self-locking functions, and 5~8 channels are Unlocking function.
Other functions are the same as above.
Remarks
If you want to change the learned receiver to other functions, please clear the receiver first and then select the required button to re-learn the code.
The product has a new power adapter socket, which is convenient for parents to use AC220V to DC12V, the transformer and the terminal socket are wrong, and the wiring is troublesome.
study method:
1. When the receiver is powered on, press the learning button on the receiver, and then let go and enter the learning state; according to the function you need, you can choose to press a button on the remote control to learn, and the indicator will flash after the receiver receives the signal. About 1 time indicates successful learning.
Clear method:
When the receiver is powered on, press and hold the learning button on the receiver for about 8 seconds until the indicator light turns off, indicating that the code has been cleared successfully. This receiver can store about 30 remote controls with different codes.
Product Description
Packing & Delivery
Box package
