Quick Details
-
ODM/OEM:
-
Accepted
-
Power voltage:
-
AC220V/110V±10%, 50Hz/60Hz
-
Motor Type:
-
24V DC Brushless motor
-
Operation:
-
Full automatic
-
Pass:
-
Bi-directional pass
-
Warranty:
-
Motor 2 years, others 1 year
-
Passing speed:
-
40 Persons/Min.
Quick Details
-
Product Name:
-
Brushless motor type automatic tripod turnstile gate access control
-
Material:
-
#304 Stainless steel
-
Certification:
-
CE approved
-
ODM/OEM:
-
Accepted
-
Power voltage:
-
AC220V/110V±10%, 50Hz/60Hz
-
Motor Type:
-
24V DC Brushless motor
-
Operation:
-
Full automatic
-
Pass:
-
Bi-directional pass
-
Warranty:
-
Motor 2 years, others 1 year
-
Passing speed:
-
40 Persons/Min.
Brushless motor type automatic tripod turnstile gate access control
1. Description
Tripod turnstile series are intelligent passage management equipment researched, developed and produced by our company.The equipment is integrated with delicate mechanical transmission, microprocessor control, and various read/write techniques. It can be used for intelligent control and management of the passage after equipped with different read/write devices.
The outline of the product is formed after bending the stainless steel plate. The shape is featured as pleasing appearance, good looking, stainless and durable. The system is provided with a standard electric interface and is easily integrated into the equipment with read/write facilities such as magnetic card, bar code card, ID card and IC card. As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down rod control may be realized in emergency for diverting passengers.
2. Features
1 RELIABILITY

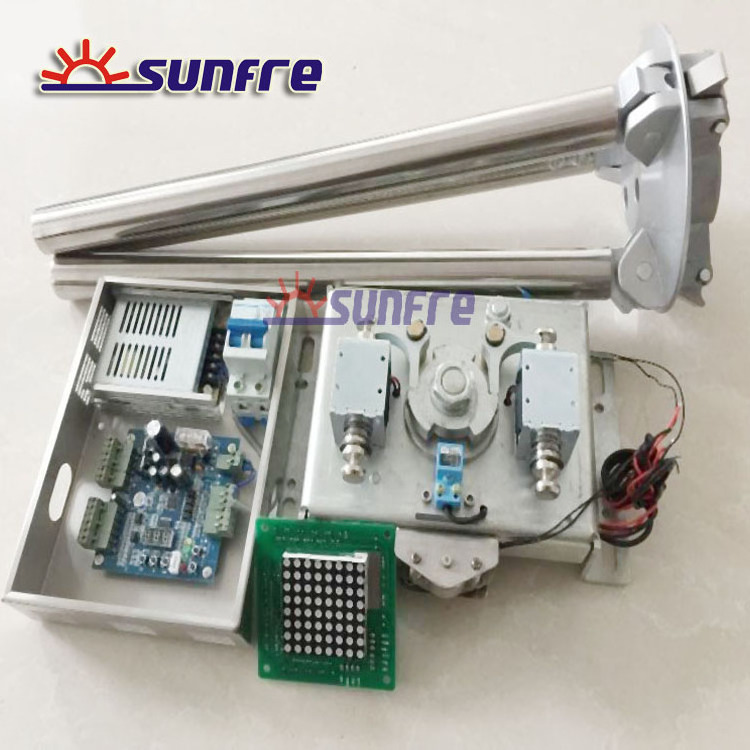

Alloy steel tripod hub prevents mechanical wear. Patented compact mechanism ensures the long life of the lubricating oil inside and high quality electrical components.
2 SEMI-AUTO ROTATION
It is unique mechanical drive design allow the arm to be pushed effortlessly and auto-rotate back without any expensive electric motor. If arm rotated more than half, it will auto-rotate to next idle position. If arm rotated less than half,it will auto-rotate back to the current idle position. Adjustable absorber controls rotation force to minimize loud sound and avoid over rotation.
3 EASY MAINTENANCE
Common parts are modular and can be easily changed by simply removing screws. Top cover can be opened for full access into internal mechanism during servicing. Regular wear and tear parts can be purchased to keep stock for faster replacement.
4 ANTI TAILING
Smart lock mechanism effectively allow only one person to pass through at a time. Arm will automatically re-lock back if nobody pass through after a preset delay time.
5 EASY INTEGRATION
Turnstile is triggered to open via dry contact relay output for bi-directional or uni-directional entry. RFID reader can be easily installed underneath side black acrylic . Top cover and side leg can be opened to install external devices.
6 USER FRIENDLY
LED at top cover indicates approved entry direction after flash card.During power failure, arm will drop automatically allowing free pass through. Arm is manually lifted up back to position after power resumed.
7 EMERGERY
Arm will drop off automatically when power off for free pass through,T his will fast escape in the event of emergency.
.
3. Specification:
|
Structure: |
#304 stainless steel , rust-proof, sturdy and durable, easy to use, and maintenance free |
|
Operation: |
semi automatic |
|
Weight: |
15kg |
|
Arm length: |
510 (mm) |
|
Passage : |
Bi-direction |
|
LaNE width: |
600mm (at the maximum) |
|
Traffic speed: |
20~35 people / min |
|
Power supply: |
AC 110- 220V ±15%, 50HZ/60HZ |
|
Input interface: |
Dry contact signal > 100ms |
|
Ambient temperature: |
-35℃~75℃ |
|
Relative humidity: |
less than 95%, non-condensing |
|
Working environment: |
indoor, outdoor with roof |
1. Provide free technical training, guidance and information of our products and accessories.
2. Our technical staff could instruct our customers on the installation of barrier gates, tripod turnstiles, flap barriers, swing barriers, full height turnstiles, parking barrier lock and etc, and deal with technical and quality issues.
3. We guarantee more than 10 years’ service life of our products with 1 years’ warranty and life maintenance.
4. Once receive the customer requirements and complaints, we will response within 24 hours.
5. Free maintenance and replacement will be provided if defects result from quality failure of our product.
6. Our company will provide technical services by phone, fax, e-mail, skype etc., please refer to the contact details.
7. Our company will implement the contract strictly; deliver the products to location specified by our customers for free in accordance with the mode of transportation.
8. Our company will provide perfect after-sale services and technical support.
Lead Time: less than 15 days if not custom products
Warranty time: 12 month to 24 month accordingly
