- Product Details
- {{item.text}}
Quick Details
-
Products name::
-

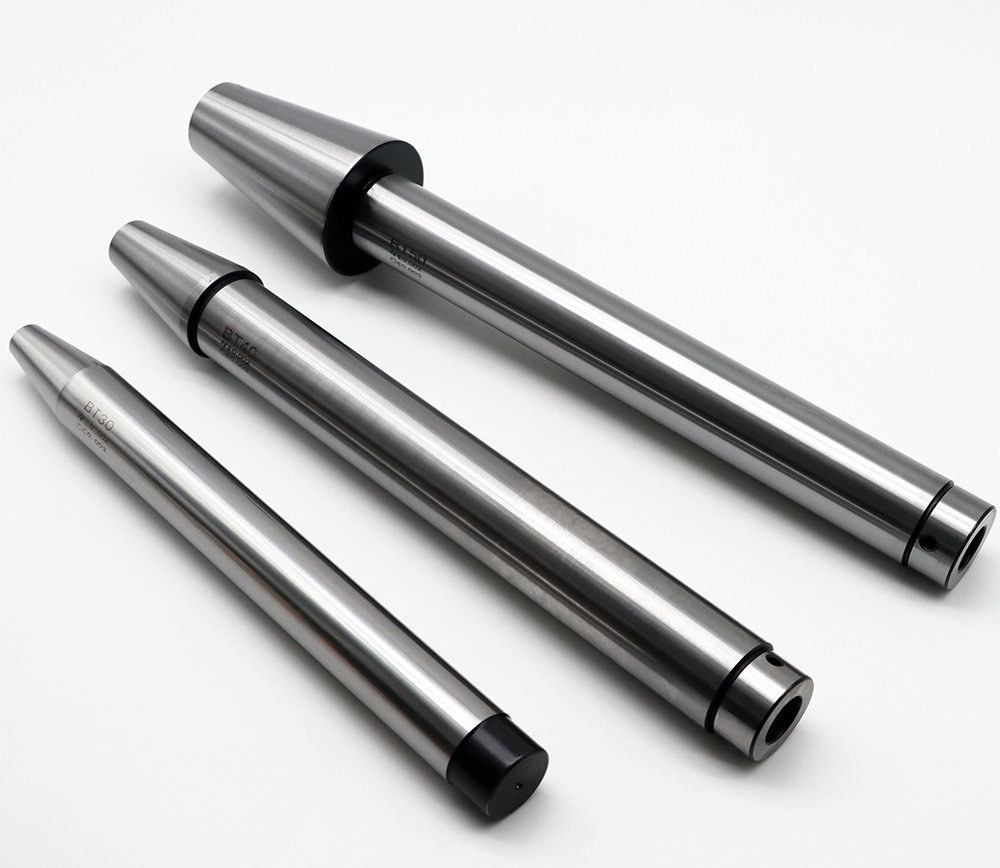

HT-TOOLS spindle test bar BT type control mandrel SK40 BT40 ISO40
-
Material:
-
40Cr
-
Model:
-
bt40
-
Hardness:
-
HRC48-50
-
Package:
-
Aluminum Box
-
Delivery:
-
Within 3--7 Days
-
After Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Online support
Quick Details
-
Place of Origin:
-
Shandong, China
-
Weight (KG):
-
5
-
Brand Name:
-
ht-tools
-
Products name::
-
HT-TOOLS spindle test bar BT type control mandrel SK40 BT40 ISO40
-
Material:
-
40Cr
-
Model:
-
bt40
-
Hardness:
-
HRC48-50
-
Package:
-
Aluminum Box
-
Delivery:
-
Within 3--7 Days
-
After Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Online support
Product Description
1.Spindle runout test bars are easy to use and a fast way to verify your machine spindle is running properly. Check them after a machine has been crashed and take the proper steps before you start making scrap parts.
2.Spindle test bars are used in the machine automatic tool changer spindle to detect and benchmark spindle run out. Calibration arbor bars are a master for checking axis alignment with the machine
3.These are surface hardened and not a soft material like many of the cheaper test bars available on the market.
3.These are surface hardened and not a soft material like many of the cheaper test bars available on the market.
|
Spindle Runout Gauge
|
Diameter
|
Gauge Length
|
|
BT30 test bar
|
32
|
300
|
|
BT40 test bar
|
40
|
300
|
|
BT50 test bar
|
40
|
300
|
|
HSK-A/E 63 test bar
|
40
|
346
|
|
HSK-F 63 / HSK-A 50
|
40
|
346
|
|
HSK-A 100 / C 100
|
50
|
330
|
|
CAT40/ANSI40 test bar
|
40
|
300
|
|
CAT50/ANSI50 test bar
|
50
|
300
|
|
DIN69871 30 test bar
|
30
|
300
|
|
DIN69871 40 test bar
|
40
|
300
|
|
DIN69871 50 test bar
|
50
|
320
|
|
MT3 morse taper test bar
|
25
|
250
|
|
MT4 morse taper test bar
|
32
|
300
|
|
MT5 morse taper test bar
|
40
|
300
|
|
ISO30 test bar
|
30
|
180
|
Related Products
Main product
We maily produce machinery accessories.
1.Collet:ER collet, ER sealed collet, ER external coolant collet, 5C collet, R8 collet, sharpener collet, DIN6343 clmping collet,TG collet, tap collet, SK collet etc.
2.Tool Holder: BT tool holder, HSK63A tool holder, HSK63F tool holder,HSK50E tool holder, NT tool holder, DIN2080 tool holder,R8 stub milling machine arbors, morse taper collet chuck,ISO tool holder etc.
3.Vise:QGG precision tool vise, QKG vise, GT precision modular vise,hydraulic machine vise, QW universal tilting vise, etc.
4.Other machine tool accessories: live center, punch former, VDI tool holder, insert, parallel block,nut, pull stud ,Punch Former etc.
If you want to know more, please send us inquiry!!!
1.Collet:ER collet, ER sealed collet, ER external coolant collet, 5C collet, R8 collet, sharpener collet, DIN6343 clmping collet,TG collet, tap collet, SK collet etc.
2.Tool Holder: BT tool holder, HSK63A tool holder, HSK63F tool holder,HSK50E tool holder, NT tool holder, DIN2080 tool holder,R8 stub milling machine arbors, morse taper collet chuck,ISO tool holder etc.
3.Vise:QGG precision tool vise, QKG vise, GT precision modular vise,hydraulic machine vise, QW universal tilting vise, etc.
4.Other machine tool accessories: live center, punch former, VDI tool holder, insert, parallel block,nut, pull stud ,Punch Former etc.
If you want to know more, please send us inquiry!!!
Company Introduction
Dezhou Haotian Imp&Exp Co.Ltd(Pingyuan Haotian) is located in the largest production base of machine tool accessories in China.we are specialized in researching,producing and developing many kinds of collets, drill chucks,CNC tool holders, retention knobs,ER nuts,ER spanners,machine vises,parallel blocks and so on . With high quality and full varieties.All of our products are deeply trusted by customers both at home and abroad.welcome to inquiry and visit us!
Exhibition
We mainly export to Germany, Britain, France, Spain, Russia and other European countries, as well as the United States,Canada,Australia, Turkey, India, Pakistan and so on. Our products are good in quality and cheap in price.Welcome to inquire us!
Packing&Shipping
FAQ
Q. Are you factory or Trade Company?
A. We are Industry and trade integration.
Q. Could you supply samples?
A. Yes, we can supply.
Q. Where do you export?
A. The whole world.
Q. Could you produce non-standard products?
A. Yes, we can. Please supply samples or drawing.
Q. What’s the accuracy of ER Collet?
A. We have three kinds. 0.005mm 0.01mm and 0.015mm.
Q. What are the shipping ways?
A. By international express, by air, by sea are all ok.
Q. Do you have minimum order quantity?
A. Conventional Products don’t have. The minimum order quantity of non-standard products is 50pcs.
Q. What’s your payment way?
A. T/T, Pay pal, Western Union and so on.
Q. What’s your delivery time?
A. 5-20 days after order confirmed
Q. What’s your package?
A. Neutron-packing with no brand, plastic box, carton and so on. If your quantity is good, we can package with your demand.
A. We are Industry and trade integration.
Q. Could you supply samples?
A. Yes, we can supply.
Q. Where do you export?
A. The whole world.
Q. Could you produce non-standard products?
A. Yes, we can. Please supply samples or drawing.
Q. What’s the accuracy of ER Collet?
A. We have three kinds. 0.005mm 0.01mm and 0.015mm.
Q. What are the shipping ways?
A. By international express, by air, by sea are all ok.
Q. Do you have minimum order quantity?
A. Conventional Products don’t have. The minimum order quantity of non-standard products is 50pcs.
Q. What’s your payment way?
A. T/T, Pay pal, Western Union and so on.
Q. What’s your delivery time?
A. 5-20 days after order confirmed
Q. What’s your package?
A. Neutron-packing with no brand, plastic box, carton and so on. If your quantity is good, we can package with your demand.
