Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WELFNOBL
-
Model Number:
-
PS16B-PNOF/S
-
Products Name:
-
IP68 Piezo Switch
-
Housing Material:
-
Stainless steel
-
Mounting hole diameter:
-
16mm
-
Head type:
-
Flat head
-
Wire Lead:
-
26AWG 300mm long
-
Function:
-
Momentary
-
Switch combination:
-
1NO
-
Illuminated or not:
-
Not
-
Product type:
-
Piezo Switch
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP68, IP68
-
Max. Current:
-
2A
-
Max. Voltage:
-
24VDC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WELFNOBL
-
Model Number:
-
PS16B-PNOF/S
-
Products Name:
-
IP68 Piezo Switch
-
Housing Material:
-
Stainless steel
-
Mounting hole diameter:
-
16mm
-
Head type:
-
Flat head
-
Wire Lead:
-
26AWG 300mm long
-
Function:
-
Momentary
-
Switch combination:
-
1NO
-
Illuminated or not:
-
Not
-
Product type:
-
Piezo Switch
-
Certification:
-
CE

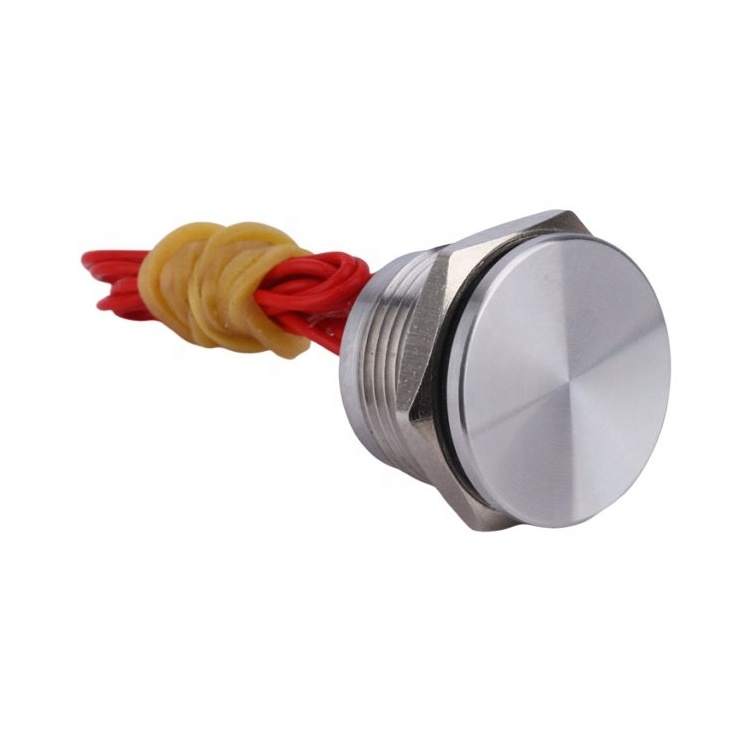

PS16B-PNOF/A New Design IP68 16mm Short 1NO Momentary Aluminum Oxide Waterproof Piezo Switch
Product description
Electrical Function
Contact Arrangement : SPST N.O.
Voltage :3 – 24V AC/DC
Switching Current: 2A
Illuminated Option : Not
Mechanical Properties
Material: Aluminum
IP Protection IP68
Anodize Colors Natural
Operating Temperature -40° C to 75 ° C (Momentary Only )
Note: If you need Customized actuator color, please inform us by mail, thanks!
|
Product Name |
IP68 Waterproof P iezo Switch |
|
Model |
PS16B -P NO F /S |
|
Mounting Hole |
16 mm |
|
Operation Type |
Momentary (Reset) |
|
Switch Combination |
1NO |
|
Actuator Shape |
Flat Round Head |
|
Cable Length |
300mm long |
|
Current |
2A |
|
Enclosure Material |
Stainless steel |
|
Operating Force |
6 to 15N |
|
Life Expectancy |
50 Million cycles |
|
Waterproof Degree |
IP68 |
|
Operating Temperature |
- 4 0°C ~+ 7 5°C |
|
Customized colored housing or Connector |
Acceptable and with fast shipping |
|
Accessories |
Nut, Rubber Waterproof O-ring |
|
What You Get |
1X P iezo Switch : 16 mm, Momentary , Stainless steel |
