Quick Details
-
Model Number:
-
RS1204A0X-VAZ-3/4
-
Max. Current:
-
0.5A
-
Mechanical Life:
-
15,000 cycles
-
Certification:
-
ISO9001/ISO14001/TS16949
-
long rotary life:
-
>15,000 cycles
-
RoHS:
-
100%
-
Reputation:
-
Top brand in China
Quick Details
-
Max. Voltage:
-
DC 16V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Soundwell
-
Model Number:
-
RS1204A0X-VAZ-3/4
-
Max. Current:
-
0.5A
-
Mechanical Life:
-
15,000 cycles
-
Certification:
-
ISO9001/ISO14001/TS16949
-
long rotary life:
-
>15,000 cycles
-
RoHS:
-
100%
-
Reputation:
-
Top brand in China
|
Switch Model
|
RS12/RS22 series
|
|
Number of positions
|
2~6
|
|
Contact resistance
|
50mΩ Max
|
|
Rotational life
|
15,000 cycles Min
|
|
Step angle
|
30°±3°
|
|
Working temperature
|
-20℃ ～60℃
|

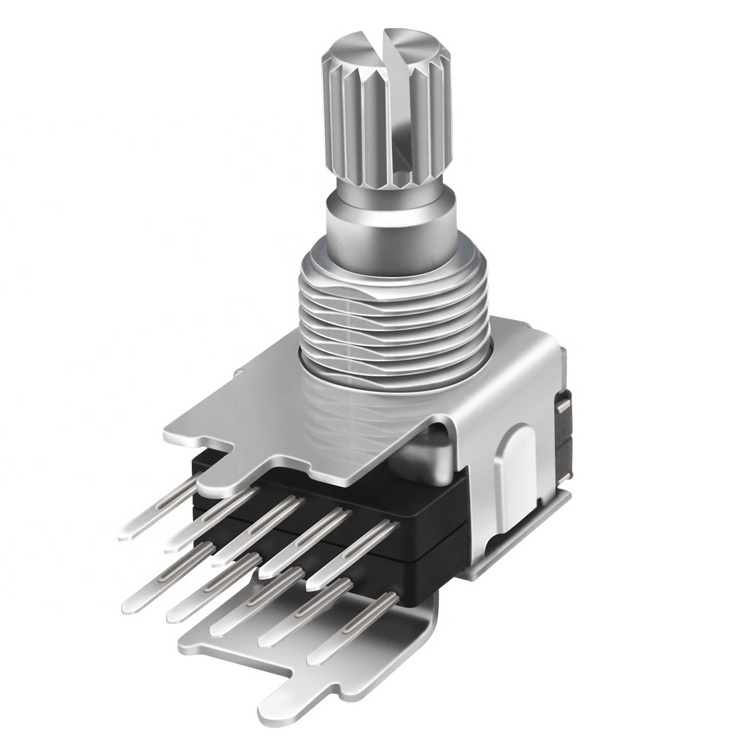

RS12/RS22 Rotary Switch
Main Specifications
|
Dimensions
|
13mm
|
|
|
|
|||
|
Rated power
|
DC 16V 0.5A
|
|
|
|
|||
|
Contact resistance
|
50mΩ Max
|
|
|
|
|||
|
Number of positions
|
2~6
|
|
|
|
|||
|
Working temperature
|
-20℃ ～60℃
|
|
|
|
|||
|
Rotational life
|
15,000 cycles Min
|
|
|
|
|||
|
Applications
|
Audio devices, home appliances or other electronic products;
|
|
|
|
|||
|
Product Features
|
2~6 positions available with clear sense of clicks;
Available in various shaft options; |
|
|
|
|||
|
Functions
|
Mainly used for function switching and volume control.
|
|
|
|
|||
RS12/RS22 Rotary Switch
Specifications
Two、ELECTRICAL CHARACTERISTIC
1. Contact Resistance: 50mΩ Max
2. Power Rating: DC 16V 0.5A
3. Number of Positions: 2~6
4. Insulation Resistance: 100MΩ 1 Minute at DC 500V
5. Dielectric Voltage: 1 Minute at DC 500V
Three、ENDURANCE CHARACTERISTIC
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
