Quick Details
-
Product Name:
-
Pressure Transmitter
-
Keywords:
-
Pressure Transmitter
-
Process Connection:
-
Thread
-
Service:
-
Customized
-
Protection Class:
-
IP67
-
Accuracy:
-
0.2% or 0.1%
-
Power Supply:
-
10~32 VDC
-
Certificates:
-
CE
-
EX-proof:
-
NEPSI
-
Application:
-
Water Oil Air Pressure Measurement
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
AE12
-
Product Name:
-
Pressure Transmitter
-
Keywords:
-
Pressure Transmitter
-
Process Connection:
-
Thread
-
Service:
-
Customized
-
Protection Class:
-
IP67
-
Accuracy:
-
0.2% or 0.1%
-
Power Supply:
-
10~32 VDC
-
Certificates:
-
CE
-
EX-proof:
-
NEPSI
-
Application:
-
Water Oil Air Pressure Measurement

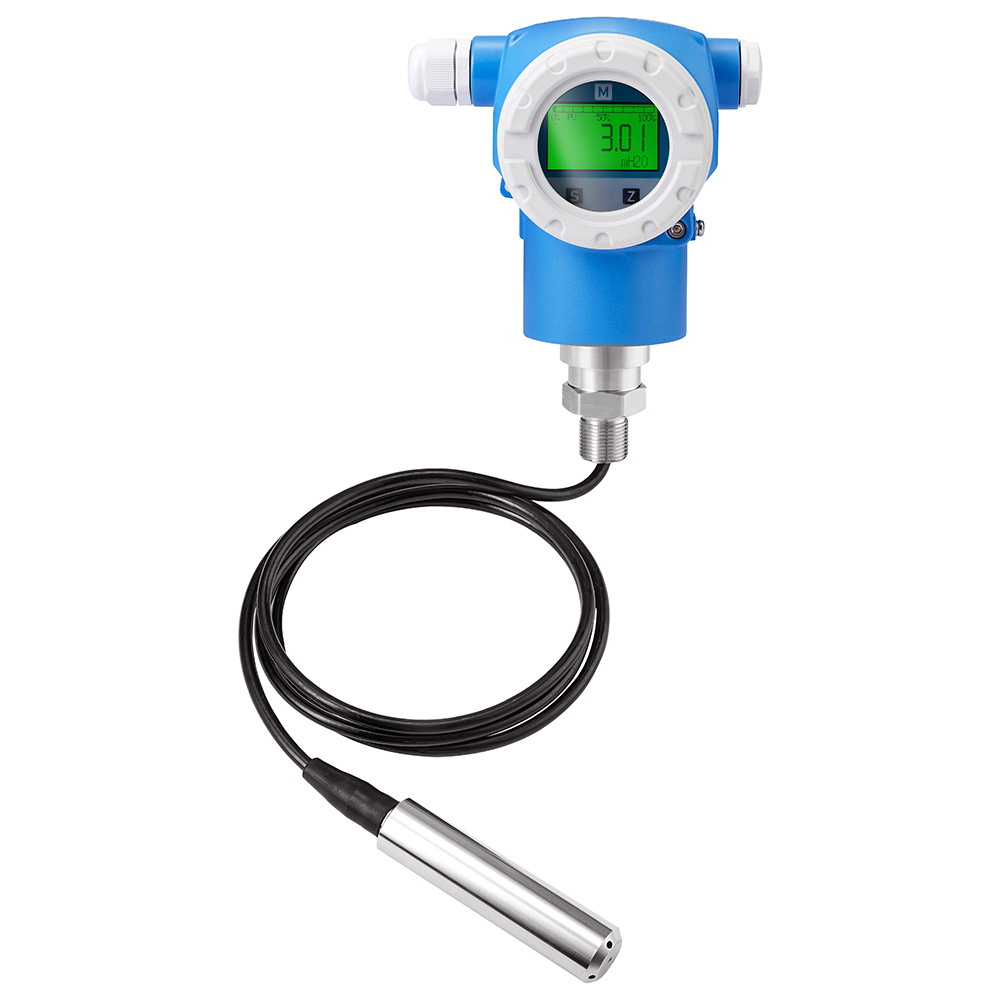

Products Description
|
Model Number
|
AE12
|
|
Application
|
Liquid Level
|
|
Process Connection
|
Thread or Flange
|
|
Measuring Range
|
0~2 Mpa
|
|
Overload Pressure Limit (OPL)
|
max 5 Mpa
|
|
Process Temperature
|
-20℃ ~ 80℃
|
|
Ambient Temperature
|
-10℃ ~ 70℃
|
|
Accuracy
|
± 0.2% URL or ± 0.1% URL or ± 0.075% URL(optional)
|
|
Power Supply
|
10 ~ 32 VDC
|
|
Current Output
|
4~20mA or 4!20mA+HART or MODBUS RS485
|
|
Certificate
|
CE
|
|
Explosion-proof Certification
|
NEPSI
|
|
Protection Grade
|
IP67
|
Application：
What We Have to Know before Quotation?
In order to purchase pressure transmitter accurately, please confirm the following parameters in advance:
●
The temperature &
pressure:
different process
environments
require different standards.
●
The connection method:
such as flange, clamp, threaded.
●
The medium:
such as
sludge,
water, sewage, acid, alkali, ammonia, brine, sea water, sulfuric acid.
