DC 24V Input Swing Gate Driver Actuator 500kg Automatic Electric Swing Gate Operator support solar power

DC 24V Input Swing Gate Driver Actuator 500kg Automatic Electric Swing Gate Operator support solar power

FOB Reference Price: Get Latest Price

≥1 Sets

US $385

≥30 Sets

US $370

≥90 Sets

US $355

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Villa

Place of Origin:: Guangdong, China

Brand Name:: CHISUNG

Model Number:: CSSGO-10-DC24V-500KG-2.5M

Rated Power:: no

Power Supply:: AC220V±10V 50HZ,AC110V±10V, 60Hz

Electric motor:: AC220/110V

Current:: 1.5A

Absorbeb power of motor:: 320W

Max leaf length:: 2.5M

Max gate weight:: 500KG

Motor speed:: 1.6cm/s

Rotational speed:: 1450RPM/min

Thrust:: 3200N

Rod's max travel:: 400mm

Quick Details

Warranty:: 1 Year

After-sale Service:: Online technical support

Project Solution Capability:: NONE

Application:: Villa

Place of Origin:: Guangdong, China

Brand Name:: CHISUNG

Model Number:: CSSGO-10-DC24V-500KG-2.5M

Rated Power:: no

Power Supply:: AC220V±10V 50HZ,AC110V±10V, 60Hz

Electric motor:: AC220/110V

Current:: 1.5A

Absorbeb power of motor:: 320W

Max leaf length:: 2.5M

Max gate weight:: 500KG

Motor speed:: 1.6cm/s

Rotational speed:: 1450RPM/min

Thrust:: 3200N

Rod's max travel:: 400mm

Product Description

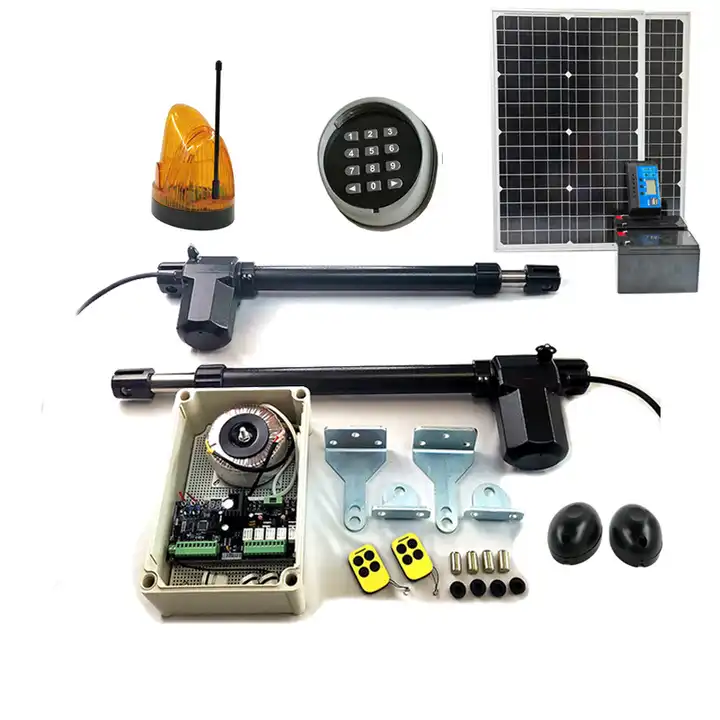

Packing list

1. 2 pcs DC motor

2. 1 set install kits

3. 2 pcs remote controllers

4. 2 pcs keys

5. 1 pair photocell sensor

6. 1 pcs warning lamp

7. 1 pcs keypad

8. 1 pcs charger

9. 2 pcs solar panels

10. 2 pcs batteries

11. 1 pcs control box+control board

AC 220/110V A practical hot style Swing gate opener Automatic Electric swing gate opener

Power Supply	DC24V, 60Hz
Electric motor	DC24V
Current	1.5A
Absorbeb power of motor	320W
Max each leaf length	2.5meters, it is double motors 2.5 meters x 2
Max each gate weight	500kg, that is double motors 500kg meters x 2
Motor speed	1.6cm/s
Rotational speed	1450RPM
Thrust	3200N
Running time protection	Adjustable
Rod's max travel	400mm
Auto closing delay time	programmable (from 0 to 99 seconds)
Gate move speed	12S/90degrees
Operating Temperature	-20°C~+70°C
Relative Humidity	30%
Protection class	IP45
Application	home automation
limit switch	No
condenser	8F(AC220V),25uf(AC110V)
Door opening angle	90°,100°,110°,120°
Packing	22kg, Together 1 cartons: 830300280mm

Technical Parameters

1. Safe and reliable home automation system

Safe and reliable home automation system
Durable, stylish European design and functionality, metal parts are galvanized steel, powder coated outer body part to prevent corrosion and rust .

2. Electronic Protection
Anti-crushing protecting is ensured by an electronic device installed on the equipment, which directly controls drive torque, in case of an emergency, manual operation is assured by a special lever release system with customized key.
3. Easy installation, no need much space
Strict production testing to ensure that each machine only needs to be installed on the door , you can simply adjust the ease of use .
4. Low noise
Precision mechanical structure, electrical motor with high precision bass, ensure that the entire system is running low noise, -20-+70 degree is available.

Product Display and Description

Product function & Selling points.

1.Open and close the gate by remote control and keypad
2.Soft start/close
3.Emergency release key in case of power failure
4.Dual/Single gate running mode
5.Optional master and slave gate running;
6.Adjustable opening/closing interval between master and slave gate.
7.Stop/Reverse in case of obstruction during gate opening/closing.
8.The force of the motor can be programmed
9.Optional photocell protection .
10.Built in adjustable auto-close (programmable from 0-99 sec)
11.Digital display indicates the running situation and setting menu
12.Reliable electromagnetism limit for easy to adjust .
