Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
EDUP
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
300Mbps Wireless WiFi Router
-
Model:
-
EP-N9540
-
Power:
-
500mW
-
Flash & Memory:
-
32M/64M
-
Support:
-
Build-in PPPOE
-
Color:
-
Black
-
Wireless Speed:
-
2.4GHz 300Mbps
-
Certification:
-
CE, FCC, RoHs
Quick Details
-
Max. LAN Data Rate:
-
300Mbps
-
With Modem Function:
-
Yes
-
Wi-Fi Supported Frequency:
-
2.4G
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
EDUP
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
300Mbps Wireless WiFi Router
-
Model:
-
EP-N9540
-
Power:
-
500mW
-
Flash & Memory:
-
32M/64M
-
Support:
-
Build-in PPPOE
-
Color:
-
Black
-
Wireless Speed:
-
2.4GHz 300Mbps
-
Certification:
-
CE, FCC, RoHs

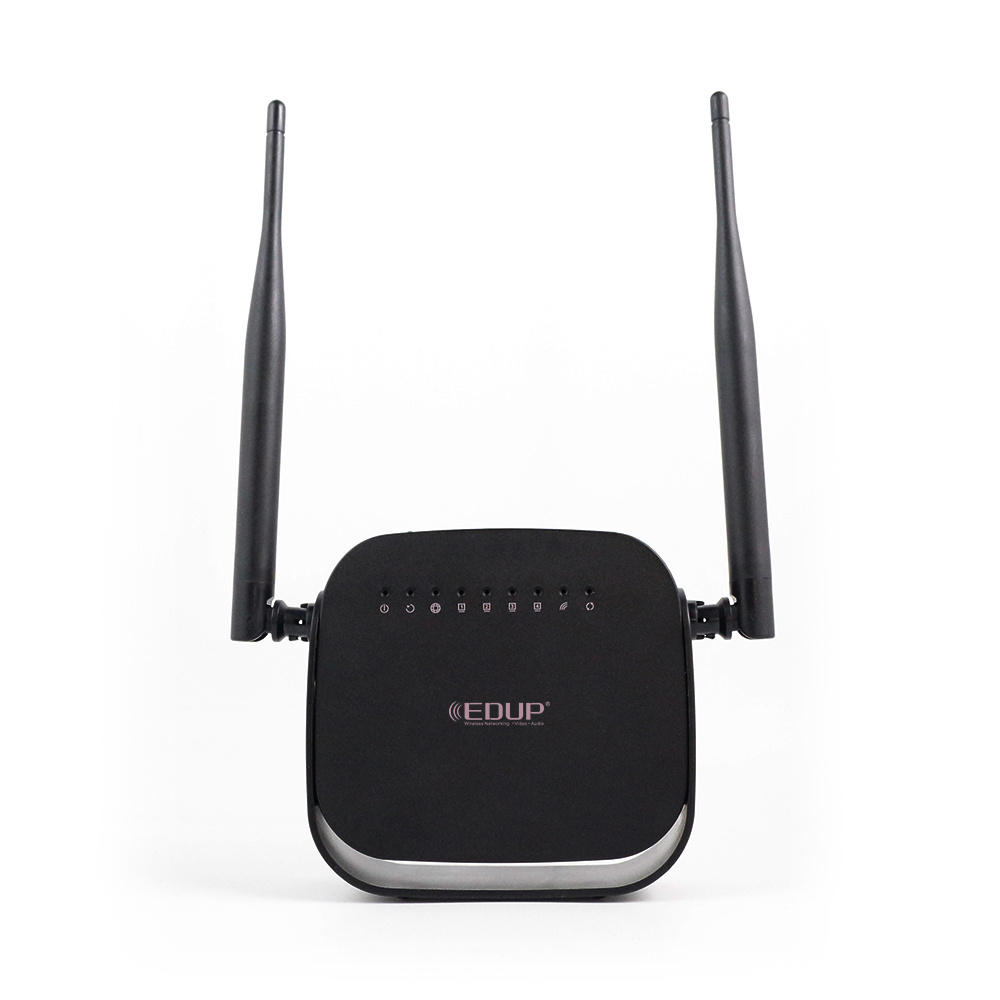

EDUP 300Mbps Modem Router ADSL2 802.11n/g Wireless ADSL Modem Routershomson TG585 V7
Description
This is a well-designed high-speed and high performance adsl2+ router, which provides 4-port switch function and supports kinds of network protocols, steady runs, and is compatible with various DSLAM, which is preferred by the individual users, the SOHO, and the small enterprise to access the internet.
Features
1. Full speed, auto-sense ADSL 2+ routing, bridging
2. 32M/64M Flash & Memory
3. Inbuilt 3 antennas to boost signal
4. Up to 24mbps downstream and up to 1024kbps upstream data rate
5 . Maximum transmission range:6.5 kilometers
6. Friendly GUI for web configuration
7. Compatible with virtually all standard internet applications
8. Support for up to 8 permanent virtual circuits (PVC)
9. NAT, IP filtering and password authentication to modem
10. Support remote management
11. Support build-in PPPOE
Specification
|
ADSL specification |
|||
|
Line Coding |
Discrete Multi-Tone (DMT) |
||
|
Standard Compliant |
Full rate ADSL ANSI T1.413 Issue 2 |
||
|
ITU G.992.1 (G.dmt) Splitter less G.992.2 |
|||
|
ITU G.994.1 G.996.1 ITU 992.5(ADSL 2+) |
|||
|
Data Rate |
Maximum transmission rate: Downstream up to 25 Mbps, and |
||
|
Upstream up to 1024 kbps |
|||
|
ATM specification |
|||
|
ATM Adaptation Layer |
Support AAL5 |
||
|
VCs |
Support 8 Permanent Virtual Circuits (PVCs) |
||
|
Service Class |
UBR, CBR, rt-VBR, nrt-VBR |
||
|
OAM |
ITU-T I.610 OAM Principles & Functions (include F4/F5) |
||
|
Basic Protocol |
|||
|
RFC 2684 |
Multiple protocol encapsulation over AAL5: |
||
|
Support Logical Link Control (LLC) encapsulation |
|||
|
Support VC-based multiplexing |
|||
|
Support Bridged and Routing |
|||
|
RFC 2364 |
PPP over AAL5: |
||
|
Support LLC encapsulation |
|||
|
Support VC-based multiplexing |
|||
|
RFC2516 |
Support PPP over Ethernet Relay |
||
|
Support PPP over Ethernet |
|||
|
RFC 1577 |
Classical IP over ATM |
||
|
Bridged Function |
|||
|
IEEE802.1d |
Transparent, learning bridge with spanning tree support. |
||
|
|
PPPoE relay |
||
|
Routing Function |
|
||
|
|
IPv4, TCP, UDP, ICMP, ARP, RARP, proxy-ARP |
||
|
Routing |
Routing Information Protocol (RIP, RIPv2) |
||
|
|
Static Routing |
||
|
DHCP |
DHCP Server/Client/Relay |
||
|
DNS |
DNS relay |
||
|
IGMP |
IGMP v1, v2 Proxy |
||
|
Security |
|
||
|
IP sharing |
Network Address Translator (NAT) |
||
|
Authentication |
PPP with PAP/CHAP |
||
|
IP Filter |
Raw/IP Filtering |
||
|
|
SPI |
||
|
VPN Pass Through |
VPN: L2TP Client/Server & L2TP/PPTP Pass Through |
||
|
|
VPN: IPSec Pass Through |
||
|
Deny of Service |
DoS (UDP, TCP) |
||
|
|
ID/Password Authentication |
||
|
Management |
|
||
|
Management |
Configuration through menu driven console via RS232 |
||
|
|
Configuration through Web interface |
||
|
|
Configuration through Telnet connection |
||
|
|
SNMPv1 and MIB II( RFC1213 ) |
||
|
|
Implement Log & Trace function |
||
|
Remote Management |
PVC&ECO |
||
|
F/W Upgrade |
TFTP, FTP and HTTP for firmware download |
||
|
Led Indication |
On |
Off |
Flashing |
|
Power |
Power On |
Power down |
N/A |
|
PC (LAN TX/RX) |
LAN enable |
LAN disable |
Data transmission |
|
Status (WAN link) |
ADSL line up |
ADSL line disconnect |
Handshaking |
|
Line (WAN TX/RX) |
N/A |
No data transmission |
Data transmission |
|
SYS |
Defects |
OK |
Self-Diagnoses |
|
Button |
|
||
|
Reset |
One Button for reset and default |
||
|
Power Switch |
One Switch for power on/off |
||
|
Interface Port |
|
||
|
LAN |
4 RJ-45 port for 10/100 Ethernet connection |
||
|
WAN |
1 RJ-11 port ADSL line |
||
|
Serial(Inner) |
1 craft port for console management |
||
|
USB(optional) |
1 USB-B port for USB1.1 connection |
||
|
Power Supply |
|||
|
Input Voltage |
AC 220V/50HZ |
||
|
Power Consumption |
15VAC, 700mA |
||
|
Operating Environment |
|||
|
Operating Temperature |
32F to 104F (0 C to 40 C) |
||
|
Non-Operating Temperature |
-4F to 149F (-20 C to 65 C) |
||
|
Humidity |
5% to 95% (non-condensing) |
||
Gallery of Thomson V7 ADSL Modem
