- Product Details
- {{item.text}}
Quick Details
-
Working pressure:
-
4~6 Mpa
-
Max Aggregate Size:
-
6mm
-
Air compressor:
-
0.4m3/h
-
Delivery height:
-
20m
-
Delivery distance:
-
50m
-
Keyword:
-
plastering machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Product Type:
-
KLW Plastering Machine
-
Capacity:
-
120~180m2/h
-
Working pressure:
-
4~6 Mpa
-
Max Aggregate Size:
-
6mm
-
Air compressor:
-
0.4m3/h
-
Delivery height:
-
20m
-
Delivery distance:
-
50m
-
Keyword:
-
plastering machine
KLW Plastering Machine
China Portable Cement Mortar Plastering Machine for Wall
Plastering Machine Features:
Compared with traditional manual plastering and rendering machine, KLW Series plastering machine has the following advantages:
(1) This machine is an advanced screw-type high-pressure mortar spraying equipment, which is easy to operate and maintain even without special skills.
(2) Evenly spraying performance, no fly ash and dust fall. It can save water and materials more than 20% of the costs.
(3) Free spraying on the wall, roof, internal and external corners. It can improve work efficiency and save costs.
(4) High efficiency. The machine can spray 120-180 square meters per hour, which can effectively shorten the construction period and save costs.
Plastering Machine Application:
KLW Plastering Machine is a new developed high-pressure screw type cement mortar plastering machine. Due to its advanced technology, convenient operation and maintenance, this plastering machine is widely used, as following:
(1) Pressure grouting for reservoir, hydropower, dam, port, dwarf etc;
(2) Basic treatment and reinforcement grouting of soft foundation;
(3) Backfill grouting or bolting grouting for tunnel, subway,mining construction;
(4) Slurry circulation and mortar backfill for ground-source heat pump deep well construction ( new technology);
(5) Building mortar conveying for floor, masonry or plastering;
(6) Conveying and spraying of cement slurry, commercial mortar or equivalent mortar etc.
(7) Spraying fireproof material, thermal insulation material etc.
Plastering Machine Specification:
|
Model |
Spraying distance |
Capacity |
Power |
Aggregate size |
Air compressor |
Hopper volume |
Dimension |
Model |
|
KLW-120 |
10m/15m |
110~120m 2 /h(mortar) 200~300 m 2 /h(putty) 3 m 3 /h(grouting) |
4kw |
4mm |
2MP |
2.2kw (0.26 m 3 /min) |
35L |
1300*650*900mm |
|
KLW-120D |
10m/15m |
120~130 m 2 /h |
12hp |
4mm |
2MP |
(0.26 m 3 /min) |
35L |
1800*850*1300mm |
|
KLW-150 |
15m/25m |
120~150 m 2 /h |
7.5kw |
5mm |
3MP |
2.2kw (0.36 m 3 /min) |
50L |
2150*730*1100mm |
|
KLW-150D (Diesel) |
15m/25m |
120~150 m 2 /h |
15hp |
5mm |
3MP |
(0.4m 3 /min) |
50L |
2050*950*1300mm |
|
KLW-180 |
20m/50m |
150~180 m 2 /h |
7.5kw |
6mm |
3MP |
2.2kw (0.4m 3 /min) |
60L |
2350*750*700mm |
|
KLW-180J (with mixer) |
20m/50m |
150~180 m 2 /h 3 m 3 /h |
7.5kw 3kw |
6mm |
3MP |
2.2kw (0.4 m 3 / min ) |
60L 120L |
2350*750*1300mm |
|
|
|

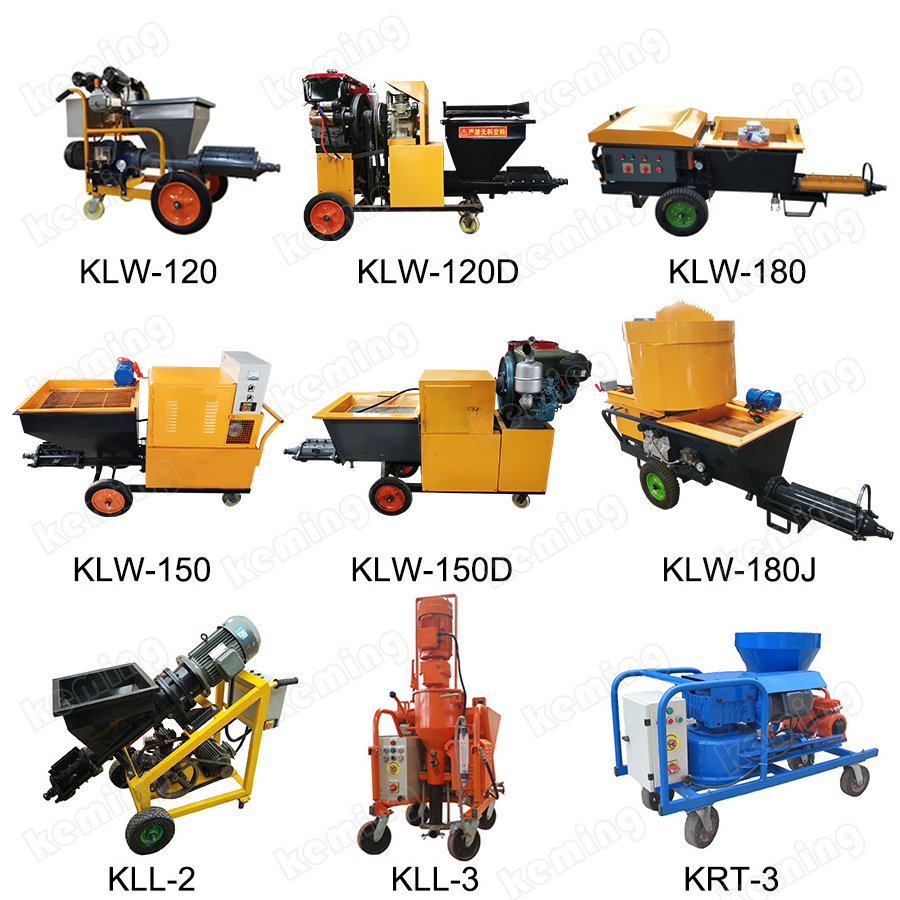

KLW-120 Plastering Machine * Screw Type * Wet Mixture * Electric motor |
KLW-120D Diesel Plastering Machine
* Screw Type * Wet Mixture * Diesel Engine |
|
|
|
KLW-150 Plastering Machine * Screw Type * Wet Mixture * Electric motor |
KLW-150D Diesel Plastering Machine * Screw Type * Wet Mixture * Diesel Engine |
|
|
|
|
KLW-180 Plastering Machine * Screw Type * Wet Mixture * Electric motor |
KLW-180J Plastering Machine with Mixer
* Screw Type * Wet Mixture * With Cement Sand Mixer |
|
|
|
|
KHT-3 Plastering Machine * Hose Squeeze Type * Wet Mixture * Electric motor
|
KLL-3 Plastering Machine * Screw Type * Dry Mixture * Electric motor |
---Plastering Machine, Cement Mortar Spraying Machine
1. Q: Which plastering machine should we choose?
A: To recommend the most suitable model, please tell us:
- Material: putty, cement, mortar, or other materials;
dry / damp mixture, or ready mixed wet mixture
- Capacity: 120m2/h, 150m2/h, 160m2/h, 180m2/h
- Delivery distance (horizontally / vertically):
- Driven type: electric motor, diesel engine
2. Q: What is the vulnerable part? How many spares should we prepare?
A: After long-time running, the stator & rotor, spraying nozzle may get worn. We will offer some spares for free.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale -how many square meters you will spray.
3. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.
4. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
5. Q: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
6. Q: What is the lead time?
A: 1 week for sample model, 2~3 weeks for customized model. It depends for mass production.
7. Q: How about the package?
A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.
8. Q: How to place an order?
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for first order.
9. Q :How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment;
L/C at sight (high bank charge, not suggest, but acceptable);
100% TT in advance (especially for small amount and spare parts etc.)
