Quick Details
-
Voltage:
-
220V 50hz 1phase
-
Power:
-
0.75kw
-
Dimension(L*W*H):
-
1950x1420x1650mm
-
Weight:
-
400
-
Name:
-
mattress tape edge sewing machine mattress border machine
-
Application:
-
mattress
-
Working speed:
-
5.5-10m/min
-
Sewing head type:
-
Lock stitch ,chain stitch
-
advantage:
-
mattress border quilting machine
-
feature:
-
tape edge machine mattress machine
-
function:
-
tape edge mattress sewing machine
-
kw:
-
mattress edging machine
-
keywords:
-
mattress edge tape machine
-
Product name:
-
tape edge mattress machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YZ
-
Applicable Industries:
-
textile machinery
-
Voltage:
-
220V 50hz 1phase
-
Power:
-
0.75kw
-
Dimension(L*W*H):
-
1950x1420x1650mm
-
Weight:
-
400
-
Name:
-
mattress tape edge sewing machine mattress border machine
-
Application:
-
mattress
-
Working speed:
-
5.5-10m/min
-
Sewing head type:
-
Lock stitch ,chain stitch
-
advantage:
-
mattress border quilting machine
-
feature:
-
tape edge machine mattress machine
-
function:
-
tape edge mattress sewing machine
-
kw:
-
mattress edging machine
-
keywords:
-
mattress edge tape machine
-
Product name:
-
tape edge mattress machine
Product Description

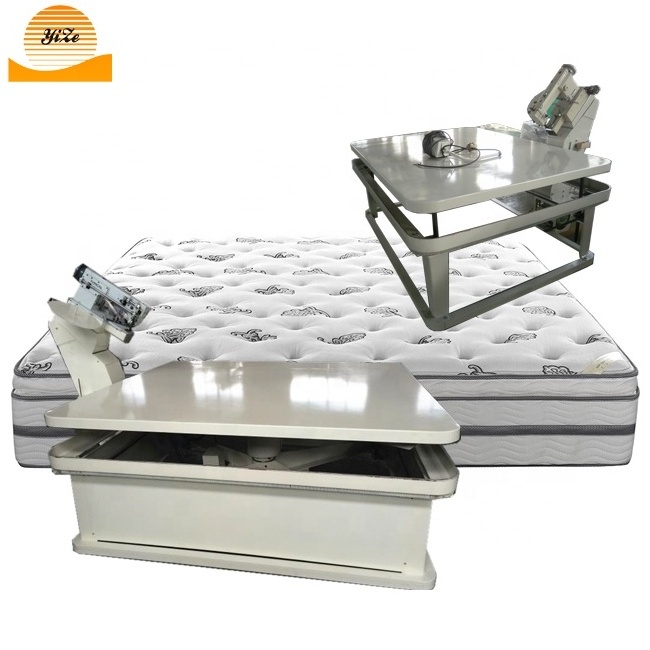

YZFB-E, classical model, Continuous sewing, and point-fixed sewing:
This machine is used to sew up surface and wall cloth of a mattress . it can also be used to sew other similatives such as soft
mattress, soft pads for sofa and sleeping bags .equipped with a hanging rotary power supply system.the machine can perform a
smooth and continuous sewing ,or a point-fixed sewing within its sewing track ,additionally ,sewing speed could by the knee lever.
mattress, soft pads for sofa and sleeping bags .equipped with a hanging rotary power supply system.the machine can perform a
smooth and continuous sewing ,or a point-fixed sewing within its sewing track ,additionally ,sewing speed could by the knee lever.
The technical parameters for the model YZFB-E:
|
Model
|
YZFB-E
|
|
Thickness Of Mattress
|
(30-300)mm
|
|
Table Lifting Range
|
260mm
|
|
Adjust angle
|
30°- 55°
|
|
Max Tilting Angle
|
40
|
|
Power Supply
|
Single-Phase, 220V, 50Hz/Three-Phase, 380V, 50Hz
|
|
Table Size
|
1920*1300mm 1920*1500mm 1920*1800mm
|
|
Total Power
|
400W
|
|
Total Weight
|
400Kg
|
|
Speed of sewing
|
6.5m/min(adjuatable)
|
|
Size
|
1950x1420x1650mm
|
YZFB-3A: Electric lifting working table and sewing head, controllable speed, Corner deceleration:
|
Model
|
YZFB-3A
|
|
Corner speed auto slow down
|
Yes
|
|
Sewing head type
|
Lock stitch / chain stitch
|
|
Working angle of the sewing head
|
30°- 55°
|
|
Sewing thickness range of mattress
|
20-350mm, 20-450mm
|
|
Lifting of working table
|
electric
|
|
Working table size
|
1.4*2m, 1.6*2m, 1.8*2m
|
|
Sewing head speed
|
1100-3000rpm Select according to the type of sewing head
|
|
Carriage speed
|
5.5-10m/m according to different head type
|
|
Productivity
|
10-20pcs/h
|
|
Motor type
|
220v, 50hz / 380v, 50hz
|
|
Total power
|
1.12kw
|
Lock stitch type:
Chain stitch type: speed faster, longer life of sewing head:
YZFB6: flat rail type, better stability, faster speed, max mattress thickness is 50cm:
|
Model
|
YZFB6
|
|
Sewing head type
|
Chain stitch
|
|
Sewing head lifting range
|
0-200mm
|
|
Sewing head tilting range
|
35°- 55°
|
|
Mattress thickness
|
50-500mm
|
|
Mattress thickness
|
1.6*2m, 1.8*2m
|
|
Sewing head motor rotary speed
|
Max 3065rpm
|
|
Carriage speed
|
Max 13.6m/min
|
|
Carriage clutching mode
|
Electromagnet clutch
|
|
Productivity
|
10-20pcs/h
|
|
Motor power
|
1.65(1.1+0.55)kw
|
YZFB5, Auto reverse type, much more automatic, save much labor.
|
Model
|
YZFB5
|
|
Sewing head type
|
Chain stitch
|
|
Sewing head lifting range
|
0-320mm
|
|
Sewing head working angle
|
25°- 65°
|
|
Mattress thickness
|
50-400mm
|
|
Sewing head speed
|
1640-2740rpm
|
|
Working table size
|
3750*1980mm
|
|
Carriage speed
|
10-14m/min
|
|
Productivity
|
15-50pcs/h
|
|
Air pressure
|
0.6-0.8Mpa
|
|
Motor power
|
3.2kw
|
Package
:
