Quick Details
-
Supply Voltage:
-
220V 50Hz
-
Product Name:
-
contact angle measuring instrument
-
Display:
-
LCD
-
Usage:
-
High temperature contact angle measurement
-
Model:
-
JC2000H
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
ZC
-
Supply Voltage:
-
220V 50Hz
-
Product Name:
-
contact angle measuring instrument
-
Display:
-
LCD
-
Usage:
-
High temperature contact angle measurement
-
Model:
-
JC2000H

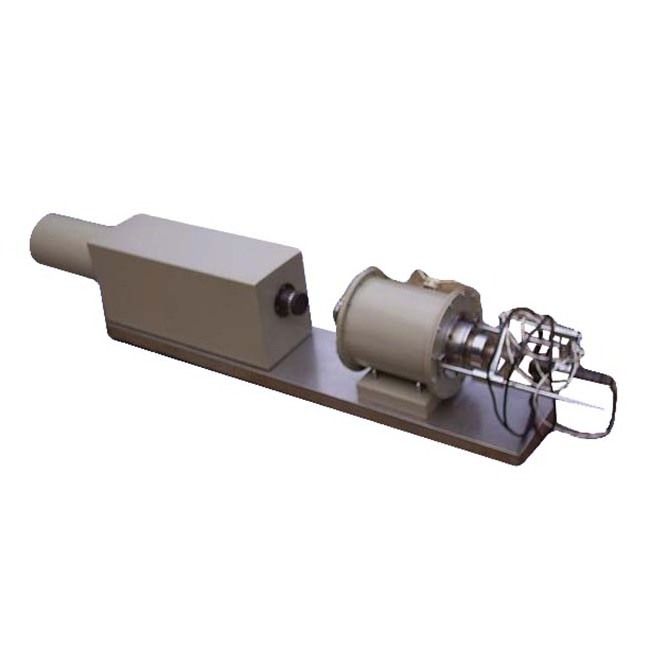

JC2000H high temperature contact angle measuring instrument
Introduction
The C- and D-series contact angle measuring instruments can provide room temperature -100 ° C and room temperature -400 ° C high temperature chambers, but the higher temperature contact angle measurement requires a dedicated high temperature device JC2000H series high temperature contact angle measuring instrument.
JC2000H1
Features:
1. Computer observation image, dedicated contact angle software measurement
2. Industrial USB standard CCD
3. Special special background light source
technical parameter:
Contact angle measurement accuracy: 0.1°
Microscope: 0.7-4.5× continuous zoom
Insulated visual window: φ20mm
Rated power: 3KW
Rated voltage: AC 380V or AC220V
Temperature control: room temperature -1100 ° C
Empty furnace heating time: ≤180min
Heating rate: 3-5 ° C / min
Vacuum limit: 6×10-2pa
Temperature control accuracy: ±1 °C
Furnace size: φ40 × 300mm (constant temperature zone 150mm)
JC2000H2
Features:
1. Computer observation image, dedicated contact angle software measurement
2. Industrial USB standard CCD
3. 0.7-4.5× continuous zoom microscope
4. Special special backlight source
technical parameter:
Contact angle measurement accuracy: 0.1°
Insulated visual window: φ20mm
Rated power: 3KW
Rated voltage: AC 380V or AC220V
Temperature control: room temperature -1700 ° C
Empty furnace heating time: ≤180min
Furnace size: φ40 × 300mm (constant temperature zone 150mm)
Heating rate: 3-5 ° C / min
Vacuum limit: 6×10-2pa
Temperature control accuracy: ±1 °C
|
