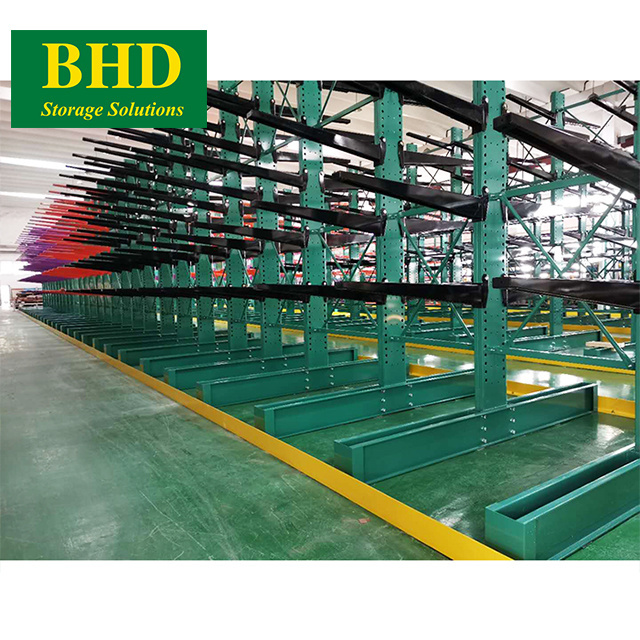

Heavy Duty Roll-Formed Cantilever Rack

Brief Introduction

Cantilever Rack is designed with C/C roll-formed upright column of hot-rolled coil, while arm and column are bolted connected by lifting lug.

The base is a welded single unit to be bolted with column. Adjustable diagonal flats and connecting bar is designed to improve the whole stability.

Both single-side and double-side bases are available to meet different storage requirements.

Advantages

l Exceeding 6m height is available, the highest column is able to reach 10.5m;

l Heavy loading, loading of single-arm can up to 1500kg.

l Keep selling to Australia market more than 10 years.

l Long and irregular material goods stored.

l Our arm has a 2° uptilt which can make sure the arm won’t tilt down while goods placing.

l Except from the regular size, the longest arm can last to 3m.

l The connection of our cantilever column and arm is ingenious, it can mitigate the impact of forklift operation.

Mitigate the Impact of Forklift Operation Extra Long Arm

Column

Column	Specification	Dimension	Height
	305	305*96*3	2500mm-10500mm
	350	350*96*4
	410	410*96*4.5

Loading capacity mainly depends on column height and arm length.

Specific dimension also can be customized as request.

Arm

The range of loading capacity/per arm is 500kg-1500kg.

Specific dimension also can be customized as request.

Arm	Specification	Length
	H120	800-2000MM
	H150
	H180

Loading Table(Kg)

Length Loading Height	800	1000	1200	1400	1600
H120	1500	1380	1020	750	570
H150	1500	1500	1250	1190	910
H180	1500	1500	1250	1250	1250

Method of Goods Placing

The effects of correct and incorrect practice are both shown in the Figure below.

BHD Vietnam Racking Factory Pivot arm technology is very effective and strong. If impact occurs, the pivoting arm swings upwards so protecting the arm and preventing structural damage.

Base

Single Side Base and Double Side Base

Relationships of length between single/double side base and arm are as follows:

Single Side Base(L)=Arm length+390mm;

Double Side Base(L)=Arm length*2+318mm;

H-bracing and X-bracing

The relationship between goods size, arm length and C/C distance.

Item	Dimension	C/C Distance
H-bracing	60*30*2.5	500mm-2000mm
X-bracing	Φ32*1.5

C/C distance 1000, 1200,1400, 1600, 1800, 2000.

Other specific dimension also can be customized as request.

Accessories

Factory

Official website of Vietnam factory

www.palletrack.vn

Geographical position

Da Nang Port

•   Third Largest Port System in Central Vietnam

•   Lies at one end of the East–West Economic Corridor.

•   Authority Shipping Line: Vietnam National Shipping Lines (Vinalines)

As being located near the third largest trading port in Vietnam which has the direct shipping lane, BHD Vietnam Racking Factory believes your orders will be delivered in the short time.

Shipment

Item	Loading Port	Destination Port	Period
1	Da Nang Port	Long Beach Port	20 days
2	Da Nang Port	Houston Port	35 days
3	Da Nang Port	Miami Port	40 days
4	Da Nang Port	New York Port	45 days

Factory capacity

BHD Vietnam Racking Factory delivers 80 containers per month. After receiving the order, production can be completed in 20 days.

Advantage

No Import Duty to U.S.A.,COO can be provided

No Anti-dumping & Anti-subsidy Margin for Rack

Lower Labor Cost

USA Production – Shorter Production Time

Port city – Da Nang: 45min Drive

Direct Shipping Lane: Da Nang Port to Long Beach & Los Angeles Port

Packing

Projects Reference

With Costomers

FAQ:

Q1: What is delivery time of your Vietnam factory?

A1: It depends on your volume. Normally our delivery time is 25 days. But when volume is large, please communicate with our sales rep so as to arrange a quickest delivery time.

Q2: What is your production capacity of Vietnam factory?

A2: 80 containers per month.

Q3: Are there any tariff or duties on your products to the United States or Australia?

A3: We have CO (Certificate of origin) from Vietnam. So there are no tariffs or duties.

Q4: Has your factory just been built or completed?

A4: Our factory has been completed as a whole in May 2019. You can see all the equipment and facilities in FACTORY part of website navigation. We sincerely welcome you to visit our factory.

Q5: What are the international trading terms provided?

A5: EXW / FOB / CIF / DDU. In fact, we can do all the international trading terms.

Q6: Do you have any certificate of products in Australia?

A6: We have AS-4084 certificate of Australia. We have valid certificates required by the local market.

Q7: What are the payment terms?

A7: Generally our payment terms are 30% T/T in advance as deposit, 70% T/T against copy of B/L as balance. If you have any special requirements, please contact our sales rep directly.

Q8: How is the packaging of your products?

A8: Corrugated paper, carton box, crosstie, pallet, angle steel, plastic film, steel tie and air bag are used for proper packaging. All our products are packaged for export, so we have rich experience in export packaging.
