Quick Details
-
Raw material:
-
wood sawdust & shaving
-
Application:
-
wooden packing
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
yingwang
-
Weight (KG):
-
500 KG
-
Raw material:
-
wood sawdust & shaving
-
Application:
-
wooden packing

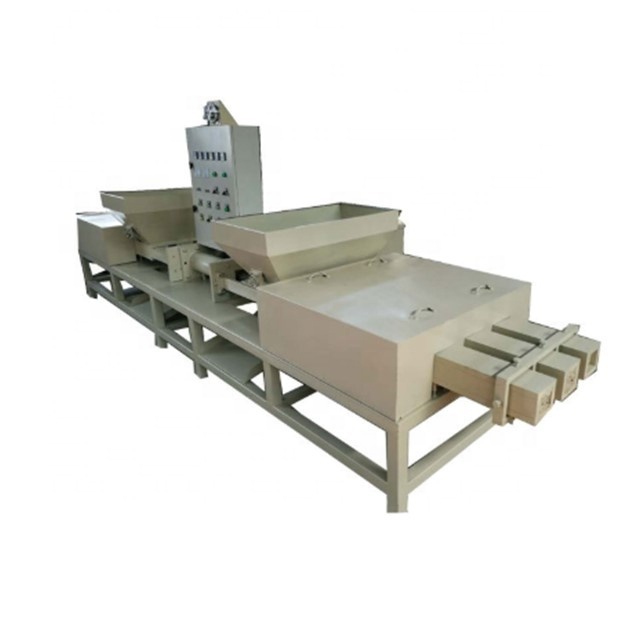

strong bearing capacity wood block making machine/hydraulic wood pallet hot press machine
1.Raw Materials
Wood shavings, sawdust and the other wood waste material.
2.The production line
The production line is made up of the crusher, dryer, the gluing machine, hot pressing machine
and Saw to cut the block piece by piece.
Production notes:
Hot sawdust foot pier for the production of raw materials: wood shavings, wood shavings and sawdust blended, crushed into sawdust-like shavings broken material; can not have a large sheet or block of hard materials.
The humidity of the raw material requirements: moisture content not exceeding 10% of the raw material; than the proportion of raw water, water vapor may cause difficult to discharge when hot, the product of product rip.
The purity requirements for glue: solids content of not less than 52% of the urea-formaldehyde glue; glue in low purity products will cause cracking, density is not high.
The production nonporous product: raw water likened to a hole in the product requirements slightly higher moisture control within 8%; because there was no hole hot product in the production process, not a good vapor emissions ingredients, water were higher than 8% will cause the product split.
These are pre-production preparation work; Furthermore, you need the raw material and glue full Stir to avoid glue lumps, no glue situation; appears a strong period of loose products.
machine parameters
|
Specification model |
Power input (kw) |
Outlook size (mm ) |
Production efficiency (m3/24h) |
Glue water amount used ( kg/m3) |
Supports the density ( kg/m3) |
Warm prosecution type |
Complete machine weight ( kg ) |
Note |
|
YWJ75*75 |
13 |
5000*600*1300 |
2 |
100-120 |
550-600 |
PID adjusts the merit accent to press the control |
1000 |
Double headed |
|
YWJ80*100 |
13 |
5000*600*1300 |
2 |
100-120 |
550-600 |
PID adjusts the merit accent to press the control |
1000 |
|
|
YWJ80*120 |
13 |
5000*600*1300 |
2.2 |
100-120 |
550-600 |
PID adjusts the merit accent to press the control |
1050 |
|
|
YWJ90*90 |
13 |
5000*600*1300 |
2 |
100-120 |
550-600 |
PID adjusts the merit accent to press the control |
1000 |
|
|
YWJ90*140 |
13.5 |
5000*600*1300 |
2.4 |
100-120 |
550-600 |
PID adjusts the merit accent to press the control |
1100 |
|
|
YWJ100*100 |
13 |
5000*600*1300 |
2.2 |
100-120 |
550-600 |
PID adjusts the merit accent to press the control |
1050 |
|
|
YWJ100*115 |
13 |
5000*600*1300 |
2.3 |
100-120 |
550-600 |
PID adjusts the merit accent to press the control |
1080 |
|
|
YWJ100*140 |
13.5 |
5000*600*1300 |
2.5 |
100-120 |
550-600 |
PID adjusts the merit accent to press the control |
1120 |
|
|
YWJ140*140 |
15 |
5000*600*1300 |
3 |
100-120 |
550-600 |
PID adjusts the merit accent to press the control |
1350 |
|
pls feel free to contact me
