Quick Details
-
Brand Name:
-
meokon
-
Model Number:
-
MD-S700
-
Max. Current:
-
5A
-
Max. Working Pressure:
-
40MPa
-
Set pressure:
-
0.2...600Bar
-
Working temperature:
-
20 ℃ ~ 80 ℃
-
The time-lapse diaphragm:
-
About 10% piston type and is about 15%
-
Mechanical life:
-
1000000 times
-
Material:
-
Stainless steel or brass
-
Install interface:
-
G1/4 g1/2 or user customization
-
Electrical interface:
-
DIN43650
-
Electrical characteristics maximum load:
-
250 v3a 125 v5a
-
Protection level:
-
IP65
-
Weighs:
-
100 grams
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
meokon
-
Model Number:
-
MD-S700
-
Max. Current:
-
5A
-
Max. Working Pressure:
-
40MPa
-
Set pressure:
-
0.2...600Bar
-
Working temperature:
-
20 ℃ ~ 80 ℃
-
The time-lapse diaphragm:
-
About 10% piston type and is about 15%
-
Mechanical life:
-
1000000 times
-
Material:
-
Stainless steel or brass
-
Install interface:
-
G1/4 g1/2 or user customization
-
Electrical interface:
-
DIN43650
-
Electrical characteristics maximum load:
-
250 v3a 125 v5a
-
Protection level:
-
IP65
-
Weighs:
-
100 grams

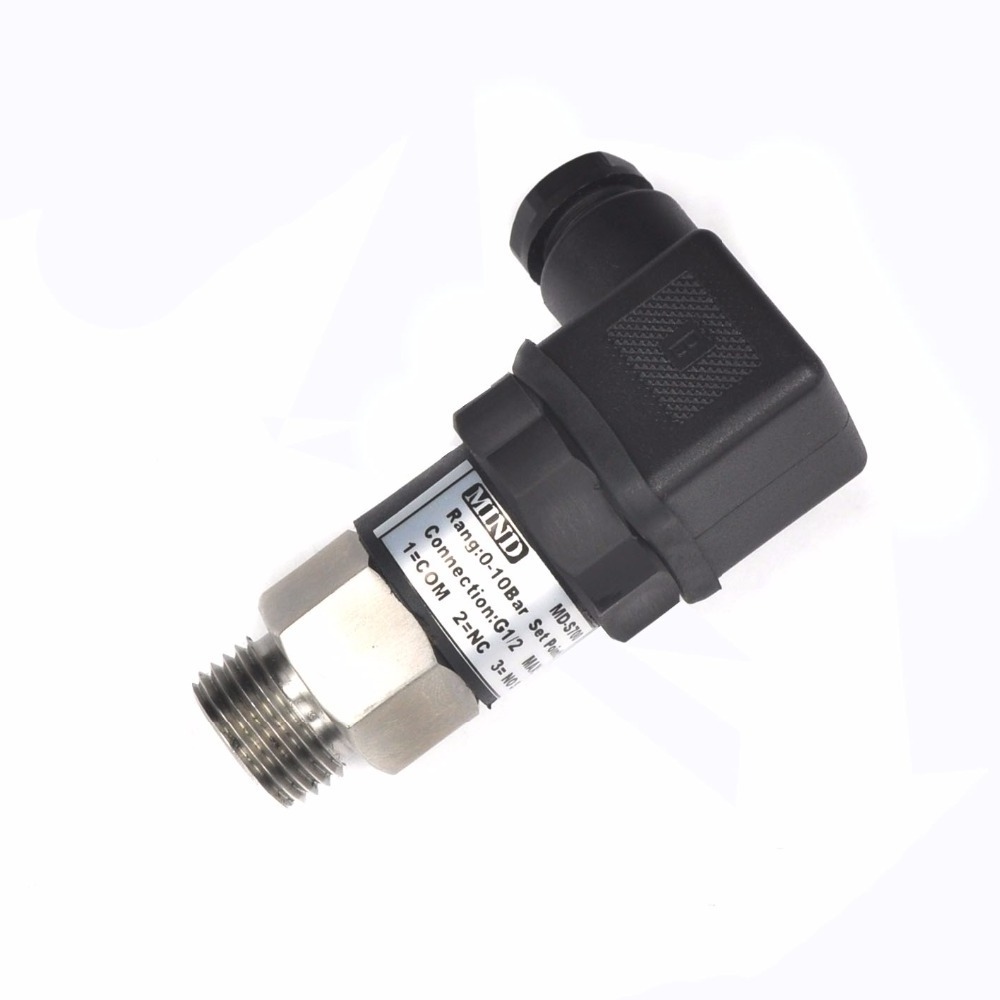

The product description MD - S700 series pressure switch for the pure mechanical deformation resulted in the micro switch action pressure switch, when the force in the sense of pressure components, and make it produce deformation, will move up, by rail the spring, etc. The mechanical structure, eventually start at the top of the micro switch, the electrical signal output. The md-s700 series pressure switch is stainless steel metal case and pressure diaphragm, which is characterized by convenience, stable job and long mechanical life. The user can set up the control points by the attachment tool of the product, or when the factory leaves the factory, the pressure control point is set by the factory. The md-s700 series products are widely used, especially suitable for automatic equipment, mining machinery and other application machinery pressure control and protection.
|
Set pressure |
0 ~ 1.58 MPa;0 ~ 1.6 MPa |
|
Electrical contact |
Silver |
|
Setting method |
Hexagon screw wrench |
|
The time-lapse diaphragm |
About 10% piston type and is about 15% |
|
The maximum |
90 beats per second |
|
Working temperature |
20 ℃ ~ 80 ℃ |
|
Mechanical life |
1000000 times |
|
Protection level |
IP65 |
|
Weighs |
100 grams |
|
Electrical characteristics maximum load |
250 v3a 125 v5a |
|
The variable switch logic |
often open and often closed |
|
Electrical interface |
DIN43650 |
|
Power protection |
DIN 40050 |
|
Install interface |
G1/4 g1/2 or user customization |
|
Material |
S tainless steel or brass |
|
Safety explosion-proof |
Exia Ⅱ CT5 |
