Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1400x1030x1200
-
Weight:
-
320 kg
-
Marketing Type:
-
Hot Product
-
item:
-
dog food pellet making machine
-
Application:
-
Shrimp,fish farm,
-
Function:
-
Hydroponic Animal Fodder Growing
-
application:
-
Fish , Dog , Cat and other pet food
-
Processing Types:
-
Fish Feed Processing Line
-
Product name:
-
fish feed extrusion machine
-
oil seal:
-
Made in Germany
-
Other name:
-
dry Type Feed Fish Extruder
-
Spare parts:
-
mold ,offer 5 pcs for each machine
-
Widely exported to:
-
Nigria ,Ghana,south africa Etc
Quick Details
-
Max. Capacity:
-
500kg/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Mikim
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1400x1030x1200
-
Weight:
-
320 kg
-
Marketing Type:
-
Hot Product
-
item:
-
dog food pellet making machine
-
Application:
-
Shrimp,fish farm,
-
Function:
-
Hydroponic Animal Fodder Growing
-
application:
-
Fish , Dog , Cat and other pet food
-
Processing Types:
-
Fish Feed Processing Line
-
Product name:
-
fish feed extrusion machine
-
oil seal:
-
Made in Germany
-
Other name:
-
dry Type Feed Fish Extruder
-
Spare parts:
-
mold ,offer 5 pcs for each machine
-
Widely exported to:
-
Nigria ,Ghana,south africa Etc
Products Description

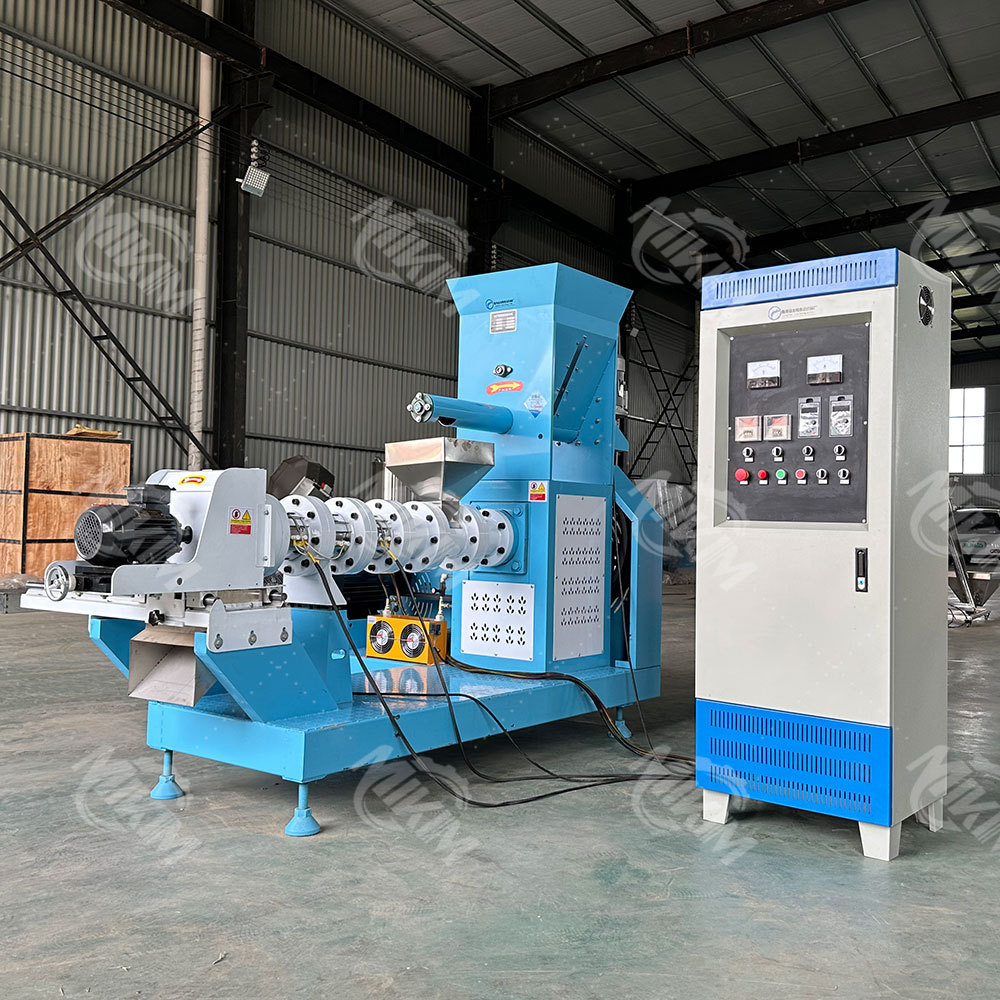

Fish Feed Pellet Machine Fish Feed Making Feed Manufacturing Machinery Floating Fish Feed Extruder Machine Rabbit Feed Granulator Machine
1.This machine is pellet feed extrusion equipment. Fish food, cat food, dog food and other pet feed extruder. Various patterns can be produced, and the molds can be customized according to requirements. 2. The product discharge port is equipped with frequency conversion speed control rotary cutting device, which can be arbitrarily adjusted blade speed, control cutting speed and length
3. This equipment takes corn, soybean (bean cake) and other animal scraps as raw materials, which can be directly added to the machine to produce different pellets with novel shape, unique taste, rich nutrition and fine organization. Suitable for dogs, cats, fish, birds, rabbits, shrimps, etc.
4. If the raw material is in powder form, it can be made into granule directly; if the raw material is in granule form, it should be crushed into powder less than 3mm first.
5. Raw material moisture also has certain requirements, if less than 30%, it is better.
|
Model
|
Power
(KW) |
Feeding power (KW)
|
Cutter power(KW)
|
Productivity
(t/h) |
Dimension
(mm) |
Weight
(kg) |
|
DGP40
|
4.0
|
0.4
|
0.4
|
0.04-0.05
|
1400*1030*1200
|
240
|
|
DGP50
|
11
|
0.4
|
0.4
|
0.06-0.08
|
1400*1030*1200
|
320
|
|
DGP60
|
15
|
0.4
|
0.4
|
0.12-0.15
|
1450*950*1430
|
480
|
|
DGP70
|
18.5
|
0.4
|
0.4
|
0.18-0.25
|
1600*1400*1450
|
600
|
|
DGP80
|
22
|
0.4
|
0.75
|
0.3-0.35
|
1870*1360*850
|
800
|
|
DGP85
|
22
|
0.4
|
0.75
|
0.3-0.35
|
2300*1170*1400
|
890
|
|
DGP90
|
30
|
1.1
|
1.5
|
0.4-0.45
|
2300*1170*1400
|
1200
|
|
DGP100
|
37
|
1.1
|
1.5
|
0.45-50
|
2000*2800*1200
|
1500
|
|
DGP120
|
55
|
1.1
|
2.2
|
0.5-0.7
|
2200*2900*1200
|
1850
|
|
DGP135
|
75
|
1.1
|
2.2
|
0.8-1.0
|
2200*3100*1370
|
2500
|
|
DGP160
|
90
|
1.5
|
2.2
|
1.2-1.5
|
2200*3150*1370
|
2800
|
|
DGP200
|
132
|
3
|
3
|
1.8-2.0
|
2300*3450*1650
|
3000
|
Product Details
Related Products
Combined Production Line
Feed Pellet Making Process
1. Control box control the whole production line operation, the whole machine can be operated by one person
2. Put the raw materials into the mixing machine, add the proportion of water, mixing and stirring evenly.
3. Send the stirred raw materials to the hopper of feed puffer through screw elevator for puffing.
4. The feed puffing machine for puffing granulation, puffed semi-finished products of uniform size, full of grains.
5. Puffed semi-finished products are sent to the multi-layer drying box through pneumatic conveyor for drying.
6. The dried semi-finished products will be conveyed to the roller seasoning machine by pneumatic conveying machine for oil seasoning, and then can be packed and sold.
Application
The feed extruder can produce all kinds of feed pellets: pet feed, aquatic feed, etc., such as: cat food, dog food, fish feed, all kinds of fish bait, nesting material, floating feed, submerged feed, 1-20 mm pellet feed. Suitable for farmers, small and medium-sized feed mills and scientific research institutions. The extruded feed particles produced by this machine are neat and smooth.
