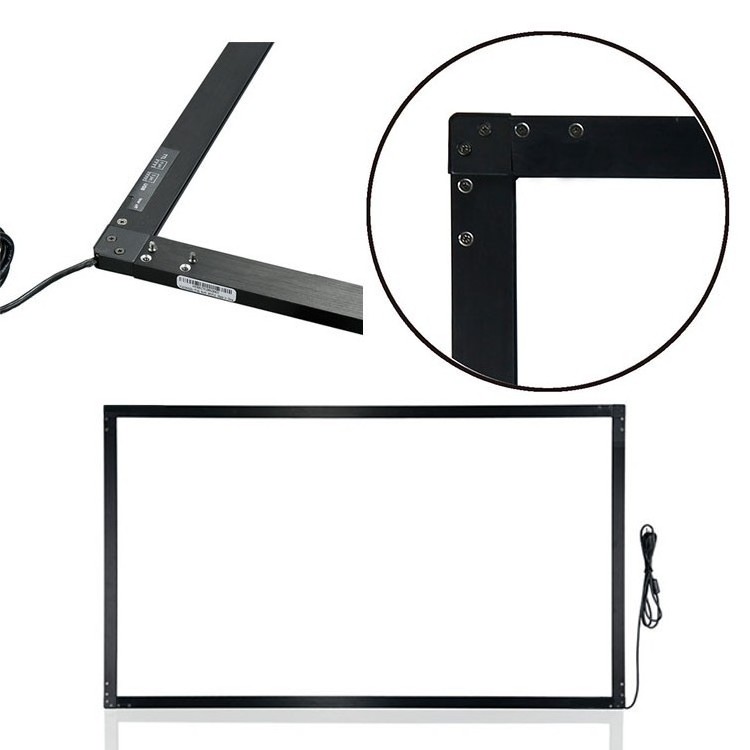

IR TOUCH FRAME FOR LCD MONITOR AND KOISK EQUIPMENT

Infrared touch frame is to use a dense matrix of infra-red x, y directions to detect and locate the user's touch. Infrared touch frame installed in front of the monitor box outside a circuit board, circuit board arranged on four sides of the screen infrared led and an infrared receiver and corresponding anyway cross the infrared matrix.When users touch the screen, fingers will be blocked anyway after the location for both infrared and therefore can judge the position of the touch points on the screen .it can detect essentially any input including a finger, gloved finger, stylus or pen.

> 1-point or Real 2/4/6/10/20/40 multi touch point
> 32767x32767 Resolution, USB or RS232 Interface
> Withstands severe environments
> Stable, no-drift calibration performance
> Material is tempered glass with high light transmittance
> Finger, gloved hand and touch pen activation
> Operable in various light conditions, indoor and outdoor
> Our products have passed CE, FCC, ROHS certification!

Product Specification

Application

• TV

• PC

• Gaming device

• Exhibition

• Education training

• Pubic query machine

• Self-service machine

• Map directory

• Any interactive machine

• And more

1.Q: Are you a factory?
A:Yes, we are a factory, we have our own production line.

2.Q: what's your products' quality control?
A:Our tenet is "Quality first, Prestige first". We are pay more attention to the beginning till the very end of the production. Our products have passed the CE & ROHS & ISO & FCC etc. Certification.

3.Q: What's your after-sale service?
A:We can offer 100% guarantee on our product. If any problems, you will get our reply within 24 hours.

4.Q: What's your  MOQ?
A: Generally, our MOQ is 1 pcs. But the greater the quantities , the bigger the discount .

5.Q: Could you offer the OEM service?
A: Yes, we can provide the OEM service if our customer requested.

6.Q: How about the delivery?
A: The delivery would be with in 3-15 days according to the order quantity and size of the items.

7.Q:How does IR interactive whiteboard SKD work?

SKD is a good way to save transportation costing, custom tax, no development and nor research cost. Interactive whiteboard SKD includes PCB, aluminum frame, infrared filter, and accessories. Customer only needs to buy central panel, and assemble them perfectly.

8.Q:No response when touch the touch screen?

1. Check about the USB connection is fine,USB cable plug straight or extended?Or change a computer.
2. Abnormal operating system,Try to restart the computer
3. See if system identification in the hardware list to the touch, check the device manager of the human body to learn whether there is an exclamation point in the input device, such as there can be unloaded to identify

9.Q:Touch screen mouse disorderly jump

1. Check about the USB connection is fine,USB cable plug straight or extended?Or change a computer.
2. Abnormal operating system,Try to restart the computer
3. If there is a light interference,like strong light,mouse.
4. Structure lead the casing deformation.
