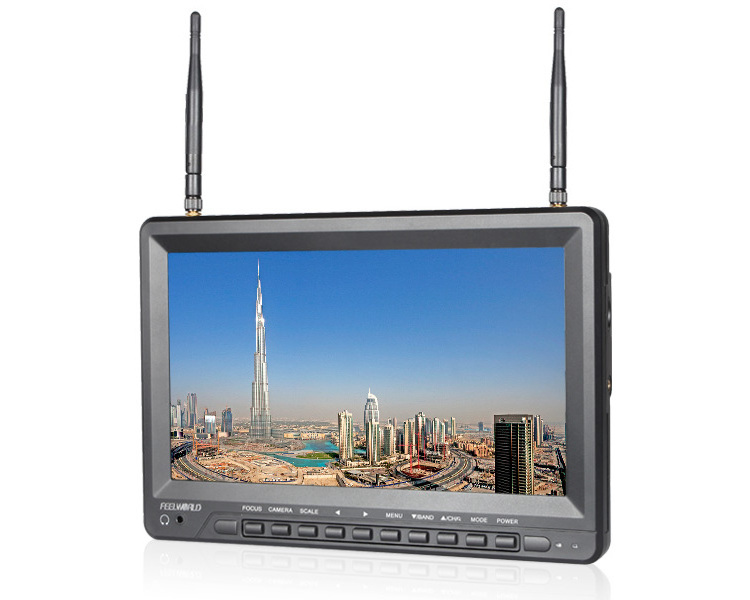

FEELWORLD 10.1 inch FPV monitor built in double receiver

FEELWORLD 10.1 inch FPV monitor built in double receiver

FOB Reference Price: Get Latest Price

≥5 Pieces

US $175

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: FPV monitor

Color:: Black

receiver:: 5.8g/hz

Size:: 10.1 inch

reoslution:: 1024*600

Brightness:: 500nit

Input:: HDMI, Video, Audio, RF

Output:: Video, Stereo Headphone, Speaker(built-in)

channels:: 40ch

Certification:: CE, FCC

Quick Details

Place of Origin:: Fujian, China

Brand Name:: FEELWORLD

Model Number:: FPV1032

Product name:: FPV monitor

Color:: Black

receiver:: 5.8g/hz

Size:: 10.1 inch

reoslution:: 1024*600

Brightness:: 500nit

Input:: HDMI, Video, Audio, RF

Output:: Video, Stereo Headphone, Speaker(built-in)

channels:: 40ch

Certification:: CE, FCC

FEELWORLD 10.1 inch FPV monitor built in double receiver

Specification:

Display Spec.

Model	FPV1032
Screen Size	10.1" IPS
Resolution	1024 × 600 pixels
Pixe Pitch	0.2175 (H) × 0.2088 (V) mm
Aspect Ratio	16:9
Brightness	500cd/m²
Contrast Ratio	800:1
Backlight	LED
Viewing Angle	85°/85°(L/R) 85°/85°(U/D)

Input

1 X HDMI	HDMI
1 X RCA	Video
1 X RCA	Audio
1 X RF	RF

Output

1 X RCA

Video

Audio

Audio Out

Stereo Headphone, Speaker

HDMI Support Format

480i /480p /576i /576p

720p /1080i /1080p (50/60Hz)

Video Support Format

PAL-4.43; NTSC-3.58

General

Built-in battery	7.4V/ 2200mA (2 hours)
Input Voltage	DC9~18V
Power Consumption	≤15W
Working Temperature	-20°C~50°C
Storage Temperature	-30°C~65°C
Install Way	1/4"-20 Thread mounting socket
Unit Size	259.9L×180H×28D (mm)
Unit Weight	790g (with battery)

Product Description

5.8GHz Wireless AV Receiver
· Built-in AV receiver support PAL / NTSC
· Simulation of composite video AV inputs, aerial camera connection
· 5.8Ghz frequency 5 Bands and total 40 channels
· Snow screen, no more "blue" screen

Wireless Receiver 40 Channel (Mhz)

Multiple Inputs and Outputs
HDMI, Audio, Video, RF inputs; Video, 3.5mm Earphone Jack output, DC in and with USB for upgrade

This FPV monitor is a medium sized 10.1" screen with a super bright LCD and 5.8GHz 32CH diversity receiver, built in rechargeable battery. Excellent choice for your FPV monitor, or as a secondary backup screen for your friends to watch. The 500cd/m² is plenty bright for outdoor applications where you need a bright screen, and the included sun shade will help keep unwanted light off the screen, reducing glare. The integarted rechargeagble battery keeps you FPV grounstation compact and easy to use. Perfect for outdoor operation. This monitor will not go to a blue or black screen when video signal is lost or static. Perfect for an FPV application where you don't want your screen to go blank when the video signal is weak.

Channel Auto Scan
It supports 40-channels totally, Long press "Q" button to realize auto channel searching function when aerial photography. It's much more convenient than traditional methods.
