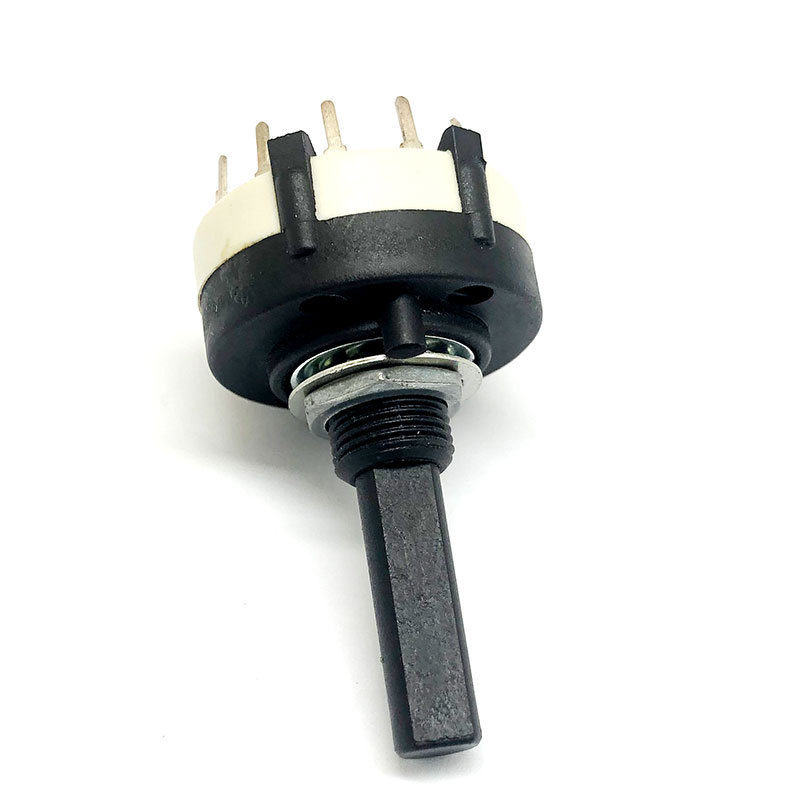

Quick Details
-
Brand Name:
-
Mingjia
-
Model Number:
-
S2601XC1
-
Max. Current:
-
0.3A
-
Mechanical Life:
-
10000 Cycles
-
Postion:
-
Optinal
-
Pole:
-
Optional
-
Diameter size:
-
26mm
-
Shaft metail:
-
plastic
-
Application:
-
Music instrument , home appliance
-
Storage temperature:
-
40°±2°
-
Operating temperature:
-
-10°~60°
-
Rsistance to soldering heat:
-
260℃ within 3s only one time
-
MOQ:
-
100pcs
-
Lead time:
-
20 Dyas
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
125V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Mingjia
-
Model Number:
-
S2601XC1
-
Max. Current:
-
0.3A
-
Mechanical Life:
-
10000 Cycles
-
Postion:
-
Optinal
-
Pole:
-
Optional
-
Diameter size:
-
26mm
-
Shaft metail:
-
plastic
-
Application:
-
Music instrument , home appliance
-
Storage temperature:
-
40°±2°
-
Operating temperature:
-
-10°~60°
-
Rsistance to soldering heat:
-
260℃ within 3s only one time
-
MOQ:
-
100pcs
-
Lead time:
-
20 Dyas
Common Specifications
|
Rotational stopper strength |
8 Kgf.cm MIN |
|
D etent torque |
1±0.5Kgf.cm(1.0MINUTE) |
|
Ratings |
A C 125 V 0.3A |
|
Contact Resistance |
DC 5V 1A Within 1KHz(2mv) , 20M Ω |
|
Insulation resistance |
DC500V 100 M Ω or more |
|
Withstand Vol ta ge |
AC500V(5 0~60HZ) FOR 1 MINUTE |
|
Rotation a l Torque |
3 00~ 15 00gf.cm |
|
Electri ca l Endurance |
10,000cycles |
Other Relative products
FAQ
Q1: Can we get some samples? Free or any charges?
The customized sample needs a fee, but you can also take our existing sample for free.
Q2: How can we get a quote?
We need to confirm the key parameter, quantity, and function you need.
Q3: What key parameter do you want me to provide?
It would be better,r if you could send us the drawing or describe the product size, resistance, taper shaft type, and size.
Q4: Can you provide with 3D drawing?
Sure, we have professional engineers.
Q5: What about the lead time for the sample and big order?
For the samples, it's about 0ne week, for the big order approx 30-60 days.
Q6: Which port can be chosen for delivery?
Mainly Guangzhou or Shenzhen, or other domestic places will be fine too.
Q7: How can you guarantee your quality?
We have over 15 years of experiments in this industry, implementing ISO9001, and IATF16949 certification. We have a well-established production and inspection process.
