Quick Details
-
Brand Name:
-
Zhiwei Electric
-
Model Number:
-
ZW-2680YW
-
Model:
-
ZW2680
-
Test Work Position:
-
8
-
leakage current range:
-
25.0mA
-
leakage current measuring error:
-
<1 %±one word
-
leakage current resolution:
-
0.01 mA
-
Working voltage:
-
AC220V
-
Boundary Dimension:
-
1820*680*1720
-
Weight:
-
130kg
-
ZW-2680YWC Boundary Dimension:
-
1980*680*1860(mm)
-
ZW-2680YWC Weight:
-
160kg
-
Certification:
-
CE
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Zhiwei Electric
-
Model Number:
-
ZW-2680YW
-
Model:
-
ZW2680
-
Test Work Position:
-
8
-
leakage current range:
-
25.0mA
-
leakage current measuring error:
-
<1 %±one word
-
leakage current resolution:
-
0.01 mA
-
Working voltage:
-
AC220V
-
Boundary Dimension:
-
1820*680*1720
-
Weight:
-
130kg
-
ZW-2680YWC Boundary Dimension:
-
1980*680*1860(mm)
-
ZW-2680YWC Weight:
-
160kg
-
Certification:
-
CE
Product Description

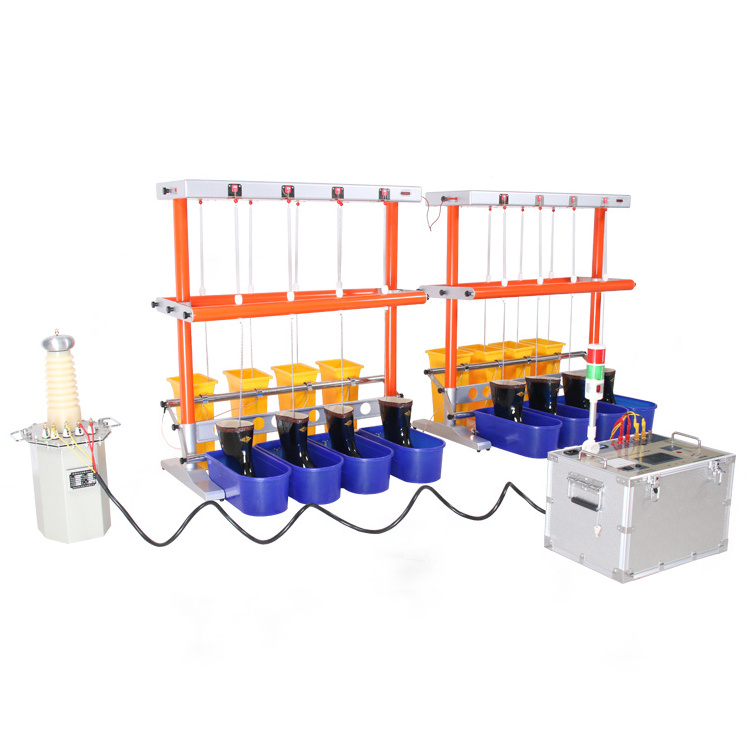

Automatic Electrical Insulating Boots Gloves test board Withstand Voltage Test Machine insulating rubber boots dielectric test
Function and features
1. 8 or 16 insulation boots or gloves shall be tested at the same time to measure the leakage current respectively.
2. Optional insulation rod support for voltage withstand test.
3. The use of large screen LCD full Chinese characters display, display large amount of information, one screen at the same time display 8 high voltage leakage current, test voltage, current, timekeeping and other parameters.
4. Test voltage, test transformer primary current and other parameters can be measured.
5. Using the infrared communication patent technology, to let the operation bench and the high voltage system completely isolated, to ensure the safety of the test personnel.
6. Full automatic voltage withstand test. After the test starts, the instrument will automatically close the switch and automatically boost the voltage at the speed required by the national standard. When the voltage reaches the predetermined value, the test voltage will be timed and maintained. When the time comes, the test voltage will be automatically lowered to zero and the power will be cut off, meanwhile, the leakage current of each sample is displayed and the test results are automatically saved.
7. Using special earthing container for easy operation.
8. Each test product has a high voltage breaking mechanism, when any one way has breakdown, the test product will automatically break away from the high voltage, does not affect the test’s process.
9. It has the protection function for over voltage and over current.
10. It has the high voltage danger warning light display.
11. Could save 60 sets of test data, with high-speed printer, field printing data.
Five patents
1. High voltage breaking mechanism
2. Multi - channel leakage current measurement
3. Paperless office
4. Quick breaking device
5. Infrared data transmission
The three major characteristics
* Safety: high voltage completely isolated from the console.
* Accuracy: multi-channel leakage current separate measurement, infrared transmission.
* High efficiency: the breakdown or over current test sample products could automatically disengagement, other test products continue to test.
1. 8 or 16 insulation boots or gloves shall be tested at the same time to measure the leakage current respectively.
2. Optional insulation rod support for voltage withstand test.
3. The use of large screen LCD full Chinese characters display, display large amount of information, one screen at the same time display 8 high voltage leakage current, test voltage, current, timekeeping and other parameters.
4. Test voltage, test transformer primary current and other parameters can be measured.
5. Using the infrared communication patent technology, to let the operation bench and the high voltage system completely isolated, to ensure the safety of the test personnel.
6. Full automatic voltage withstand test. After the test starts, the instrument will automatically close the switch and automatically boost the voltage at the speed required by the national standard. When the voltage reaches the predetermined value, the test voltage will be timed and maintained. When the time comes, the test voltage will be automatically lowered to zero and the power will be cut off, meanwhile, the leakage current of each sample is displayed and the test results are automatically saved.
7. Using special earthing container for easy operation.
8. Each test product has a high voltage breaking mechanism, when any one way has breakdown, the test product will automatically break away from the high voltage, does not affect the test’s process.
9. It has the protection function for over voltage and over current.
10. It has the high voltage danger warning light display.
11. Could save 60 sets of test data, with high-speed printer, field printing data.
Five patents
1. High voltage breaking mechanism
2. Multi - channel leakage current measurement
3. Paperless office
4. Quick breaking device
5. Infrared data transmission
The three major characteristics
* Safety: high voltage completely isolated from the console.
* Accuracy: multi-channel leakage current separate measurement, infrared transmission.
* High efficiency: the breakdown or over current test sample products could automatically disengagement, other test products continue to test.
Specification
|
insulating boots gloves withstand tester
|
|
|
||
|
Rated output voltage
|
|
50kV
|
||
|
Rated capacity
|
|
5kVA
|
||
|
Output voltage range
|
|
50.0 kV（250V）
|
||
|
Voltage measurement error
|
|
＜1%U+0.5% full scale
|
||
|
Input current range
|
|
25.0A
|
||
|
Current measurement error
|
|
< 0.5%I+0.5% full scale
|
||
|
Measuring Work Position
|
|
8
|
||
|
Leakage current range
|
|
25.0mA
|
||
|
Leakage current measurement error
|
|
＜1 %± one word
|
||
|
Leakage current resolution
|
|
0.01mA
|
||
|
Digital display timer
|
|
10~990S
|
||
|
HB2680 Host
|
Boundary dimension
|
430×310×370（mm）
|
||
|
|
Weight
|
26kg
|
||
|
HB2680Y1 voltage withstand bench
|
Boundary dimension
|
960×420×1500（mm）
|
||
|
|
Weight
|
20kg
|
||
|
HB2680Y2
Voltage booster |
Boundary dimension
|
400×300×700（mm）
|
||
|
|
Weight
|
47kg
|
||
Packing & Delivery
Insulating Boots And Gloves Tester packing is Wooden box with foam inside.
