Quick Details
-
After-sales Service Provided:
-
Video Technical Support
-
Color:
-
White
-
Advantage:
-
High Efficency
-
Machine type:
-
Packing Line Solution
-
Suitable for:
-
Related Industries
-
Application:
-
Medical
Quick Details
-
Place of Origin:
-
China
-
Weight:
-
1000 KG
-
Product name:
-
Bag inserter
-
After-sales Service Provided:
-
Video Technical Support
-
Color:
-
White
-
Advantage:
-
High Efficency
-
Machine type:
-
Packing Line Solution
-
Suitable for:
-
Related Industries
-
Application:
-
Medical
Product Description

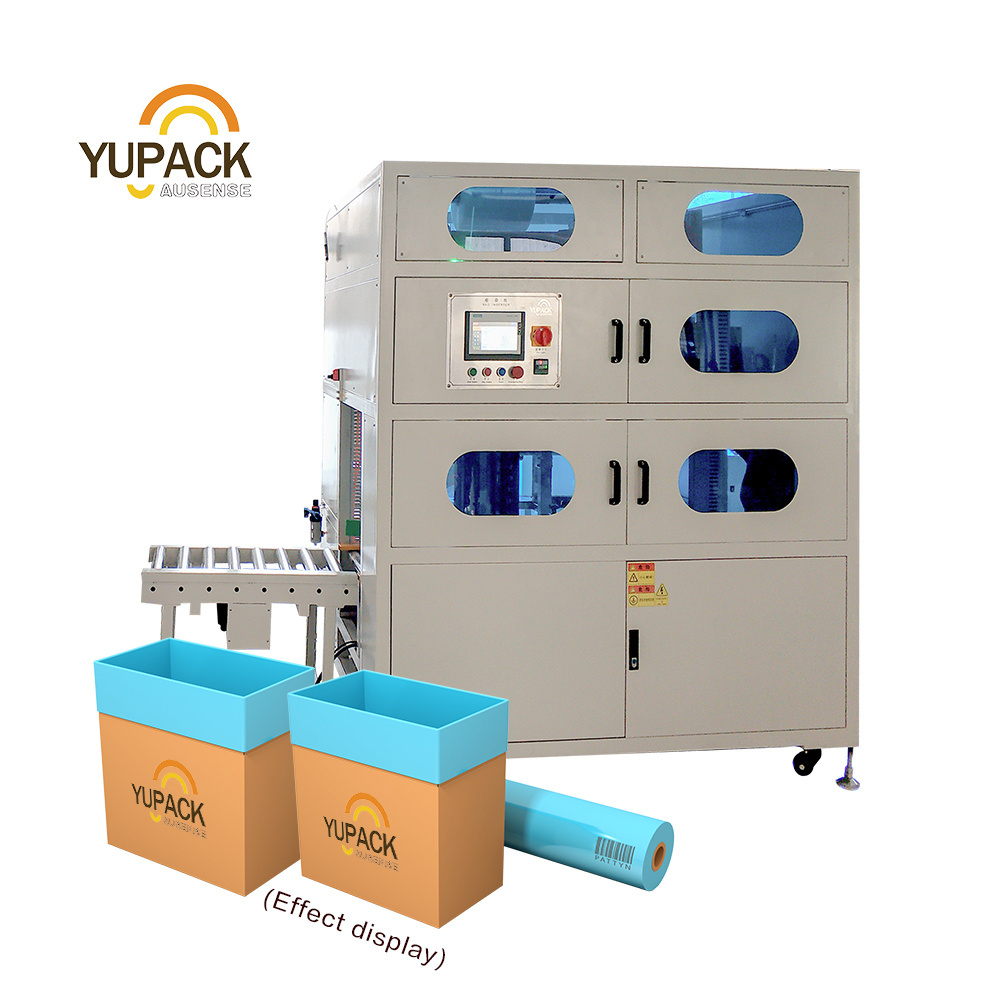

Plastic bag inserting machine makes made-to-measure bags from a roll of polyethylene film and automatically inserts the bags into different types of containers: Cardboard b ox ,Plastic crate ,trays,
Plastic drum/Fiber drum or styrofoam cases.
This Bag inserting machine is a perfect solution to minimize your bag cost and maximize your productivity. Starting from a parentfilm roll, you obtain the best price per bag. Discover more and be convinced.
|
Capaciy
|
5-6cases/min
|
|
Carton range
|
L300-500 W300-400 H300-400mm
|
|
voltage
|
380V 50Hz 6Kw
|
|
Air
|
0.6Mpa 600L/min
|
|
Table height
|
600mm
|
|
Machine size
|
2200*1800*1950
|
|
Machine weight
|
780Kg
|
Film requirements, bag material (PE)
1, bag type: M-type (M-type film for directed insert);.
2, thickness : 0.03-0.10mm.
3, roll film diameter (outside diameter) requirements: φ ≤ 300mm.
4, M-type film size:
1) film perimeter ≈ carton perimeter + 200~250mm.
(2) film width ≈ carton length +10~20mm; film insertion length ≈ carton width*0.65.
Note: ① the above calculation method of membrane size is only suitable for conventional cartons.
②If the carton is square (or close to square), in order to ensure that the film perimeter remains unchanged, and the distance between the center of the two inserts of the film is 10~20mm
the width of the film can be increased appropriately.
③In mass production, the film size can be fine-tuned according to the actual carton size to better suit the carton packaging application.
