Quick Details
-
Input Voltage:
-
12-24V DC,>50mA
-
Control Output:
-
0-10V,max 25mA sinking current
-
Detection angle:
-
360°
-
Certificate:
-
UL
-
Mounting height:
-
40ft(12m) Max.
-
Warranty:
-
5 Years
-
Color:
-
White Black
-
Material:
-
Plastic
-
Operating temperature:
-
-20°C~60°C
-
Wireless Standards:
-
Bluetooth Mesh
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BRILLIANT
-
Model Number:
-
ANT-5-4T-BLE
-
Input Voltage:
-
12-24V DC,>50mA
-
Control Output:
-
0-10V,max 25mA sinking current
-
Detection angle:
-
360°
-
Certificate:
-
UL
-
Mounting height:
-
40ft(12m) Max.
-
Warranty:
-
5 Years
-
Color:
-
White Black
-
Material:
-
Plastic
-
Operating temperature:
-
-20°C~60°C
-
Wireless Standards:
-
Bluetooth Mesh
Specifications
|
Power supply
|
12-24V DC,>50mA
|
|
Dim control output
|
0-10V, max.25mA sinking current
|
|
HF System
|
5.8GHz±75MHz
|
|
Transmission power
|
<0.2mW
|
|
Protocol
|
Bluetooth Mesh
|
|
Wireless frequency
|
2.4GHz
|
|
Detection radius
|
20%/50%/75%/100%(1-8m)
|
|
Mounting height
|
Max 40ft
|
|
Time setting
|
10s-60min(adjustable)
|
|
Light control
|
24H/10LUX/30LUX/50LUX
|
|
Temperature
|
-4°F~+140°F(-20℃~+60℃)
|
|
IP rating
|
IP65
|
Products Description
The BRILLIANT Lighting Controls Bluetooth Fixture Controller & Sensor provides automated individual and group control of light fixtures using onboard sensors and Bluetooth technology.

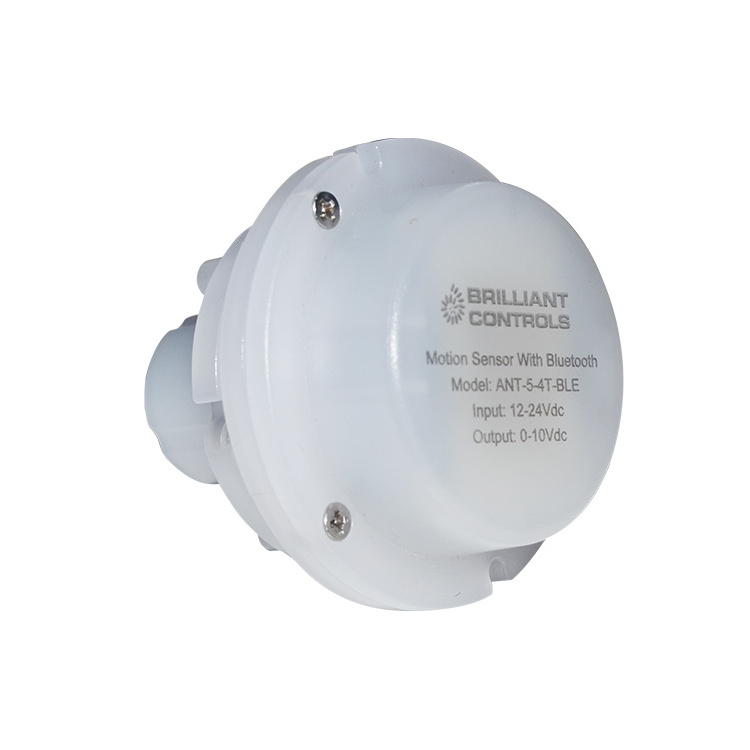

The ANT-5-4T-BLE is a motion sensor that dims lighting from high to low based on movement. This slim, low-profile sensor is designed for installation inside the bottom of a light fixture body.
Configuration of the BRILLIANT Lighting Controls Fixture Controller & Sensor is done conveniently with our free Smartphone App using Bluetooth protocol to communicate with the device.
A Bluetooth mesh network is created between devices for control over a group of BRILLIANT Lighting Controls Bluetooth Fixture Controller & Sensors.
Functions
MEASUREMENT
COVERAGE PATTERNS
DIMENSION
