Quick Details
-
Product name:
-
KFA310 Mini Protection Relay Tester
-
Size:
-
288x185x95 (mm)
-
Weight:
-
3.7 kg
-
Voltage:
-
4x300V
-
Accuracy:
-
<±0.02%rd+0.03%rg
-
Maximum Voltage Power:
-
22.5VA
-
AC current output range:
-
0-50A
-
Maximum Current Power:
-
130VA
-
Frequency:
-
10-1000Hz
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kingsine
-
Model:
-
KFA310
-
Product name:
-
KFA310 Mini Protection Relay Tester
-
Size:
-
288x185x95 (mm)
-
Weight:
-
3.7 kg
-
Voltage:
-
4x300V
-
Accuracy:
-
<±0.02%rd+0.03%rg
-
Maximum Voltage Power:
-
22.5VA
-
AC current output range:
-
0-50A
-
Maximum Current Power:
-
130VA
-
Frequency:
-
10-1000Hz
Product Description

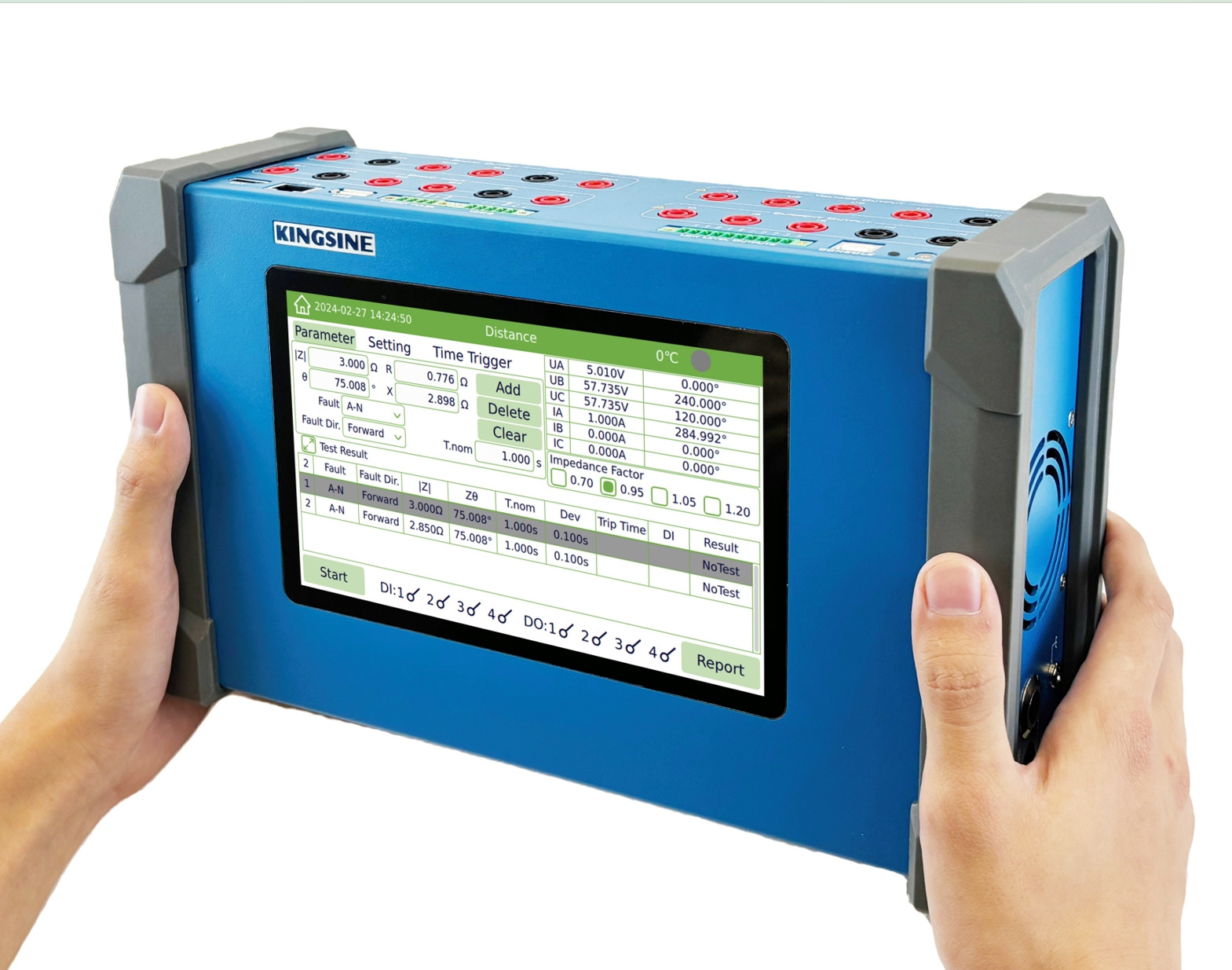

1. The world's smallest relay tester with 7.0-inch LED touch screen,, easy to carry in a iPad size, 3.7kg, high current up to 50A, high precision, can continuously output with 3x10A conditions.
2. Extremely simple design for its internal structure, ensure high quality and reliability.
3. Innovative “Plug and Play” technology enable after-sales service very easy and efficient within 20 working days.
4. Main functions
▪ AC/DC test, Ramping, State Sequence, Harmonic, Distance, Overcurrent
▪ Oscillate Test: used for customizing superimposed oscillation waveform simulation testing.
▪ Frequency test (df/dt, ROCOF)
▪ 3-Phase standard Power source
▪ Energy meter calibration
▪ Double-device synchronous test (up to 6 current channels for differential test)
▪ 8 Channels Low-Level outputs (0 - 8Vrms)
5. High precision output, can be used as a standard source.
2. Extremely simple design for its internal structure, ensure high quality and reliability.
3. Innovative “Plug and Play” technology enable after-sales service very easy and efficient within 20 working days.
4. Main functions
▪ AC/DC test, Ramping, State Sequence, Harmonic, Distance, Overcurrent
▪ Oscillate Test: used for customizing superimposed oscillation waveform simulation testing.
▪ Frequency test (df/dt, ROCOF)
▪ 3-Phase standard Power source
▪ Energy meter calibration
▪ Double-device synchronous test (up to 6 current channels for differential test)
▪ 8 Channels Low-Level outputs (0 - 8Vrms)
5. High precision output, can be used as a standard source.
