Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SR
-
Supplier Type:
-
ODM
-
Tx Power:
-
25dBm(5GHz Per Channel)
-
MOQ:
-
10 pieces
-
Module Size:
-
65*63*11mm
-
WiFi Frequency:
-
4T4R 5GHz
-
Wireless Standard:
-
802.11a/b/g/n/ac 1800Mbps
-
Power Supply:
-
DC 12V/2A
-
Interface:
-
1GE*3, Uart*1, IPEX 1.0*4
-
WLAN Standard:
-
IEEE 802.11a/n/ac, Wi-Fi Compliant
-
Frequency Range:
-
5.15GHz ~ 5.825GHz (5GHz ISM Band)
-
Operating Temperature:
-
-10 deg.C ~ 70 deg.C
Quick Details
-
Chipset:
-
Quantenna QV840
-
Application:
-
Repeater or wireless bridge
-
Model Number:
-

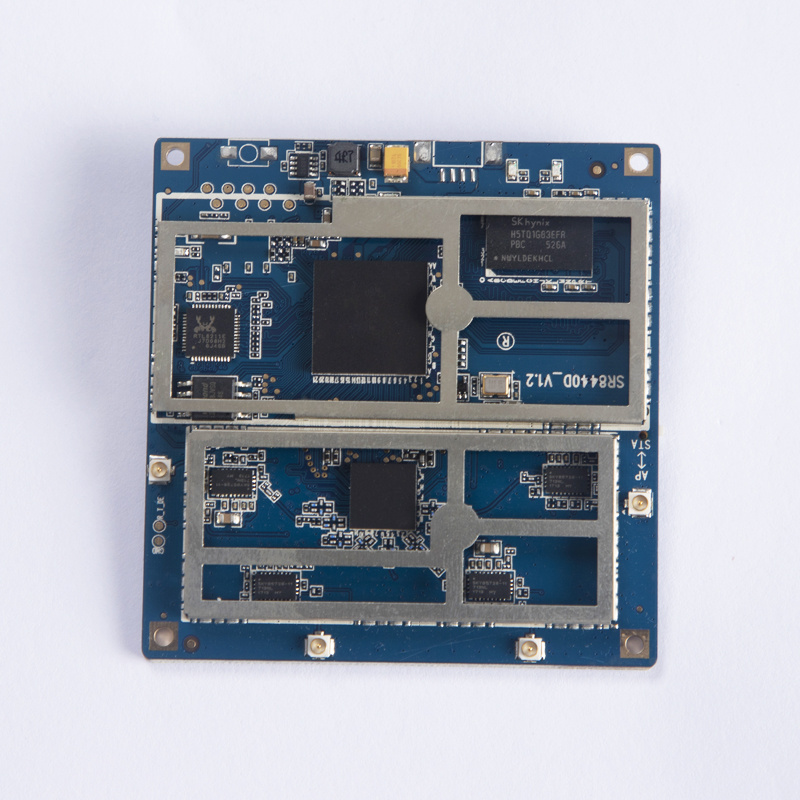

SR8440D
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SR
-
Supplier Type:
-
ODM
-
Tx Power:
-
25dBm(5GHz Per Channel)
-
MOQ:
-
10 pieces
-
Module Size:
-
65*63*11mm
-
WiFi Frequency:
-
4T4R 5GHz
-
Wireless Standard:
-
802.11a/b/g/n/ac 1800Mbps
-
Power Supply:
-
DC 12V/2A
-
Interface:
-
1GE*3, Uart*1, IPEX 1.0*4
-
WLAN Standard:
-
IEEE 802.11a/n/ac, Wi-Fi Compliant
-
Frequency Range:
-
5.15GHz ~ 5.825GHz (5GHz ISM Band)
-
Operating Temperature:
-
-10 deg.C ~ 70 deg.C
Product Description
|
Element
|
Min.
|
Typ.
|
Max.
|
Unit
|
|
Operating Temperature
|
-10
|
25
|
70
|
Deg.c
|
|
VCC
|
7
|
12
|
24
|
V
|
|
Standby
|
-
|
30
|
-
|
mA
|
|
Tx Current (4 Chain)
|
-
|
1500
|
-
|
mA
|
|
Rx Current (4 Chain)
|
-
|
350
|
-
|
mA
|
1. Features
* 4x4 MU-MIMO
* 11 a/n/ac, 1700Mbps
* Tx Power up to 25dBm
* Used as a wireless bridge: 2km@100Mbps，500m@300Mbps，5m@800Mbps
* Built-in AP/STA switch, It can be switched to AP or STA mode
* WPS button, It can be easily paired into a network bridge
* 100/1000M network
* 9~24V DC
2. Application
* Long distance or high bitstream video transmission
* UAV image transmission
* HD HDMI wireless extension cable
* Wireless video surveillance
* Wireless HD live broadcast
* 11 a/n/ac, 1700Mbps
* Tx Power up to 25dBm
* Used as a wireless bridge: 2km@100Mbps，500m@300Mbps，5m@800Mbps
* Built-in AP/STA switch, It can be switched to AP or STA mode
* WPS button, It can be easily paired into a network bridge
* 100/1000M network
* 9~24V DC
2. Application
* Long distance or high bitstream video transmission
* UAV image transmission
* HD HDMI wireless extension cable
* Wireless video surveillance
* Wireless HD live broadcast
*
Wireless bridge
Before power on, One module set switch to AP, Another one set to STA (AP SSID: SR8440-AP-5G/QTN-AP2)
SR8440D-DVB Power ON(9-24v), DC 12V-2A power supply is recommended, Wi-Fi led is Scanning flicker.
Before power on, One module set switch to AP, Another one set to STA (AP SSID: SR8440-AP-5G/QTN-AP2)
SR8440D-DVB Power ON(9-24v), DC 12V-2A power supply is recommended, Wi-Fi led is Scanning flicker.
RF Specification
