Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JSZY
-
Model Number:
-
Z anchor ,up& dwon anchor,pin anchor
-
Diameter:
-
M6-M20
-
Certificate:
-
CE ISO9001 SGS
-
Usage:
-
marble and stone plates installation,
-
OEM:
-
Accepted
-
Load:
-
25-60KG per set
-
Samples:
-
free
-
Processing method:
-
stamping,casting
-
Designed Drawings:
-
can provide
-
Piece Price:
-
0.32-4.2 USD per set
-
Surface Treatment:
-
2B,sand blasting,plain
Quick Details
-
Material:
-
Steel
-
Length:
-
15-200mm
-
Capacity:
-
25-60KG
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JSZY
-
Model Number:
-
Z anchor ,up& dwon anchor,pin anchor
-
Diameter:
-
M6-M20
-
Certificate:
-
CE ISO9001 SGS
-
Usage:
-
marble and stone plates installation,
-
OEM:
-
Accepted
-
Load:
-
25-60KG per set
-
Samples:
-
free
-
Processing method:
-
stamping,casting
-
Designed Drawings:
-
can provide
-
Piece Price:
-
0.32-4.2 USD per set
-
Surface Treatment:
-
2B,sand blasting,plain
1,Specifications :
| Specifications -- JSZY STONE MARBEL FIXING BRACKETS | |||||||
| Product Name | STAINLESS STEEL STONE MARBLE FIXING BRACKETS | ||||||
| Material | SS304 304HC 304L / SS316 316L / SS321 / SS202 SS201 SS200 D667.etc | ||||||
| Size | according to your requirements | ||||||
| Standard Model | DIN,ASTM,JIS,BS,AISI,Nonstandard | ||||||
| Finish | original,polish,sand blast | ||||||
| Certificate | CE,ISO9001,SGS | ||||||
| Min Order | 5000 pcs | ||||||
| Packing List | in cartons and then on pallet | ||||||
| Delivery Term | FOB/C&F/CIF | ||||||
| Delivery Lead Time | Within 20days after the order is confirmed | ||||||
| Payment Term | 30% by T/T as Downpayment,the balance against the copy of B/L;L/C at sight | ||||||
2, Stone Fixing Brackets Uses and Applications :

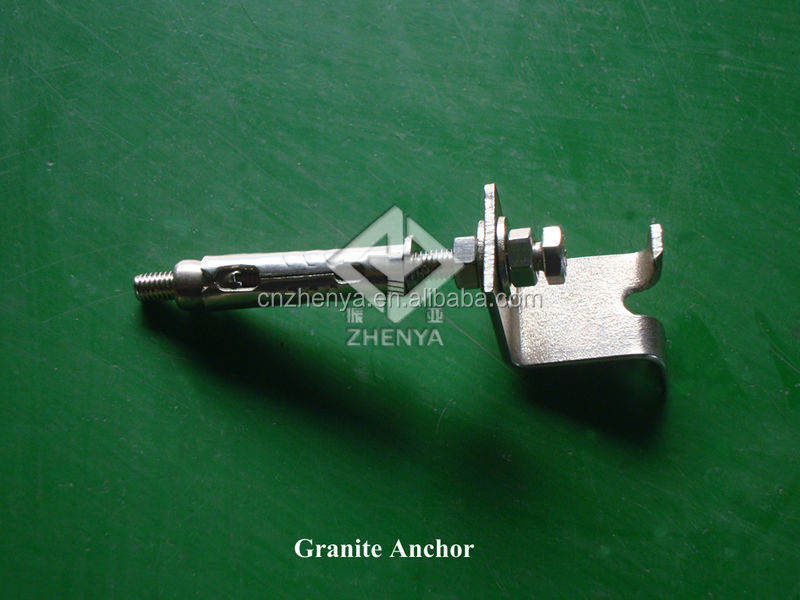

This Cladding Fixing System contains Adjustable Arm,Flange Pin,Hex Nut,Serrated Washer,Wedge Anchor and Z Bracket.The mate Marble Bracket/Marble Angle/Marble Clamp/Beam Clamp/Channel Bracket/Z Bracket/L Bracket/Strut Fitting/Marble Fixing/Stone Fixing Fittings/Cladding Fixing System/Anchoring System/Anchorage System/Restraint Fixing System/Restraining Angle/Restraint Anchor/Granite Anchor/Interior Anchor/Slotted Strut Channel
This Cladding Fixing System contains Adjustable Arm,Flange Pin,Hex Nut,Serrated Washer,Wedge Anchor and Z Bracket.The material is SUS304 SUS316
We are professional in Stone Fixing Systems for many years. We have produced many types of Fixing Systems for our clients all over the world.
If you need our products or still confuse about what kind of fixing system to choose for the stone and marble,please email me......
Direct fixing in to concrete walls with expansion bolt. Indirect fixing on to sub channel system with hex bolts
Suitable for concrete walls. Anchors are fixed directly on to concrete walls with expansion bolts.
1. Recommended projection size between 45 mm to 135 mm and loads up to 800N.
2. In horizontal joint installation slabs are pinned on the bottom and upper sides. Anchors act as load bearing carrying half the weight of the slabs above. Anchors also act as restraint holding the slabs below and restraining against wind suction and pressure.
3. In vertical joints installation slabs are pinned at the left and right sides. Anchors on the bottom are load-bearing anchors carrying the whole weight of the slab. Half the weight of the slab on the left and half the weight of the slab on the right. Anchors on the top are restraint anchors holding the slabs and restraining against wind suction and pressure.
4. Three - dimensional adjustability allows quick and easy installation......
