Customized type new energy vehicle ZR-EUO02-1 Charging gun IP67 protection saving energy low consumption portable

Customized type new energy vehicle ZR-EUO02-1 Charging gun IP67 protection saving energy low consumption portable

FOB Reference Price: Get Latest Price

≥3 Meters

US $121

≥50 Meters

US $101.3

≥200 Meters

US $99.7

≥500 Meters

US $98.1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Charging Port:: No

Connection:: European standard plug

Combination:: Follow vehicle lock, LED indicator light

Voltage:: AC230V

Place of Origin:: Hebei, China

Brand Name:: EV, can be customized

Model Number:: ZR-EUO02-1

Design Style:: modern

Product name:: Customized type new energy vehicle ZR-EUO02-1 Charging gun IP67

Application:: AC Home Charging

Color:: Balck

Current:: 8A-10A-13A-16A-32A

Power:: 3.5-7KW

Standby Power:: 3W

Cable length:: 5 Meters, can be customized

Installation:: Floor-standing, wall-mounted

Package:: Portable bag, box, carton

Quick Details

Function:: Colorful lights, screen display, Voltage Monitoring, LED indicator light, Intelligent temperature control

Car Fitment:: Pgo, Maybach, Lantu, SAIC MOTOR, Kia, GEELY GALAXY, OMC Tilt & Trim, FAW (JILIN), Dark Blue Car, IRISB, ZHUJIANG, Renault, weiwang, VW Van, tonggong, ENOVATE AUTO, YEMA, JAWA MOTORCYCLES, BAOJUN, Capacity, Abarth, MG ROVER, heibao

Type:: Wall Charger, Portable charger, Wired charging

Charging Port:: No

Connection:: European standard plug

Combination:: Follow vehicle lock, LED indicator light

Voltage:: AC230V

Place of Origin:: Hebei, China

Brand Name:: EV, can be customized

Model Number:: ZR-EUO02-1

Design Style:: modern

Product name:: Customized type new energy vehicle ZR-EUO02-1 Charging gun IP67

Application:: AC Home Charging

Color:: Balck

Current:: 8A-10A-13A-16A-32A

Power:: 3.5-7KW

Standby Power:: 3W

Cable length:: 5 Meters, can be customized

Installation:: Floor-standing, wall-mounted

Package:: Portable bag, box, carton

Customized type new energy vehicle ZR-EUO02-1 Charging gun IP67 protection saving energy low consumption portable

Product Display

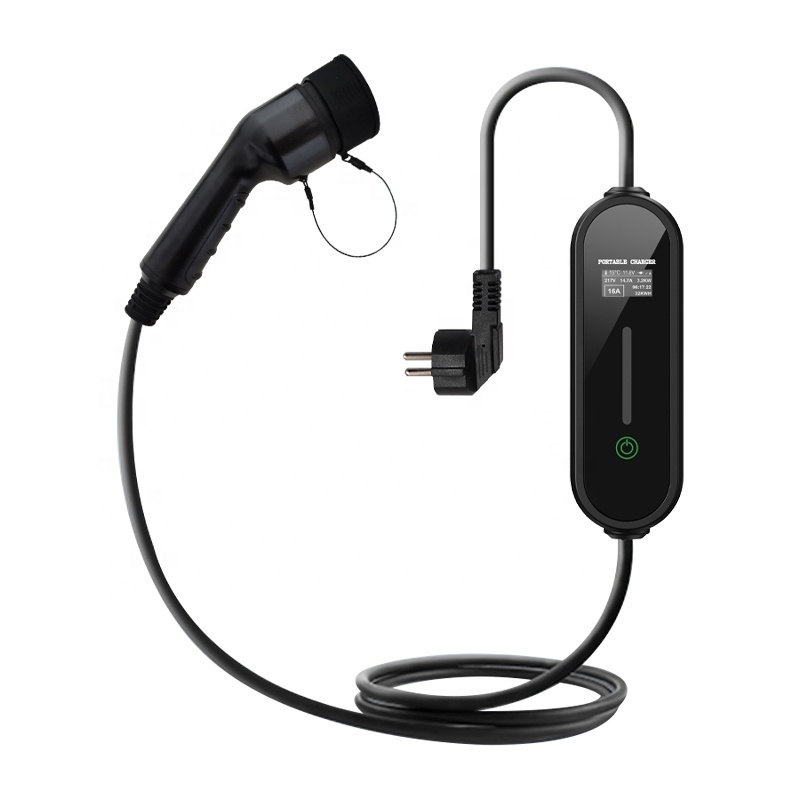

European standard ZR-EUO02-1

1. Portable AC car charger,
After charging, you can take it with you in the car.

2. 1.3-inch LCD display, more comprehensive human-machine communication interface.

Numerical screen display shows basic data related to real-time charging of the charging gun.

3. Current gear adjustment function, 8A-10A-13A-16A-32A, scheduled 0H-8H charging function
4. Free wall-mounted back buckle, which can be used to fix the charging gun on the wall

5. Plug and charge/scheduled charging/current gear adjustment

6. Installation components: wall-mounted back buckle, screw accessories

Product Description

Product Name	Customized type new energy vehicle ZR-EUO02-1 Charging gun IP67 protection saving energy low consumption portable
Product features	Portable home car charger, can be taken with the car after charging, Plug and charge/scheduled charging/current gear adjustment
Standard Code	ZR-EUO02-1	ZR-EUO01-2	ZR-EUO02-2	ZR-EUO01-4
Plug model	32A industrial plug	32A Industrial plug	16A European standard plug	3 phase industrial plug
Wire specification	3*6MM²+0.75MM²	3*6MM²+0.75MM²	3*2.5MM²+0.75MM²	5*6MM²+0.75MM²
Input Voltage	AC230V	AC230V	AC230V	AC380V
Maximum Power	7KW	7KW	3.5KW	11-22KW
Output Current	8A-10A-13A-16A-32A	8A-10A-13A-16A-32A	8A-10A-13A-16A	16-32A
Screen	1.3 inch display/LED indicator light	2.4 inch display	1.3 inch display/LED indicator light	2.4 inch display
Product Weight	around 4.2KGS	around 3.4KGS	around 2.8KGS	around 4.1KGS
Input Frequency	50HZ/60HZ
Working Tempreture	-30℃-+50℃
Cable length	5m, can be customized (please contact us for more details)
Product Size	Charger head: 2409870mm, Box: 2208070MM (HWD)
Shell material	Charging gun head - Control box PC9330
Protection level	Charging gun head IP67/Control box IP67
Safety standard	IEC62196-2
Flame retardant grade	UL94V0
Certificate	TUV, CE, RoHS, CB
Safe Design	Undervoltage protection, Overvoltage protection, Overload protection, Overcurrent protection, Overtemperature protection, Leakage protection, Grounding protection, Lightning protection, Electrostatic protection, Flame retardant protection, *Follow vehicle lock
