Quick Details
-
Product name:
-
Automatic Down jacket Filling Machine
-
Filling material:
-
Duck down,Goose down ,Balls fiber,Chemical fiber,cotton, and mixtures
-
Weighing cycles:
-
2*4Weighing Scales
-
Filling mouth (station):
-
2 nozzle
-
Cotton box capacity:
-
12-25KG
-
Precision grade:
-
≤0.01g
-
Fill range:
-
1-35g(Large gram of weight can be automatically apportion)
-
Working pressure Mpa:
-
0.6-0.8
-
Total power:
-
3.5KW
-
MOQ:
-
1 set
Quick Details
-
Weight (KG):
-
760
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KIVAS
-
Product name:
-
Automatic Down jacket Filling Machine
-
Filling material:
-
Duck down,Goose down ,Balls fiber,Chemical fiber,cotton, and mixtures
-
Weighing cycles:
-
2*4Weighing Scales
-
Filling mouth (station):
-
2 nozzle
-
Cotton box capacity:
-
12-25KG
-
Precision grade:
-
≤0.01g
-
Fill range:
-
1-35g(Large gram of weight can be automatically apportion)
-
Working pressure Mpa:
-
0.6-0.8
-
Total power:
-
3.5KW
-
MOQ:
-
1 set

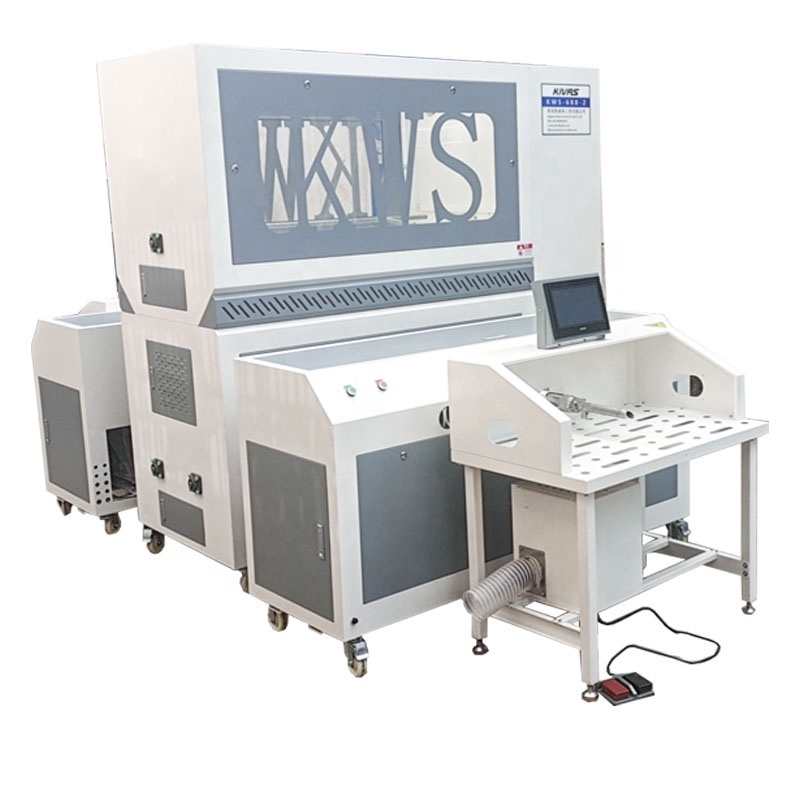

Automatic weighing filling machine
KWS6911-2
1Nozzles 4weighing scales KWS6911-2
1、Engaged in the garment filling industry for more than
16
years.
2、100% professional high-quality products, 1-year warranty, lifetime after-sales.
3、Based on Siemens PLC control system.TCP/IP communication protocol.Supports remote management and system upgrades.
Parameter
|
Parameter :
|
|
|
|
Display interface
|
10”HD Touch Screen
|
|
|
Storage box size/1 set
Professional work table size/2sets |
1700*900*2230mm
1045*600*950mm |
|
|
Weighing box size/2set
|
1200*600*1000mm
|
|
|
Weighing cycles
|
2*4 Weighing Scales
|
|
|
Weight
|
760 KG
|
|
|
Voltage
|
220V 50HZ
|
|
|
Power
|
3.5KW
|
|
|
Cotton box capacity
|
12-25KG
|
|
|
Pressure
|
0.6-0.8Mpa Gas supply source need ready compress by yourself ≥11kw
|
|
|
Productivity
|
60-100pcs/min(fabric piece≤ 3g)
|
|
|
Filling port
|
Two Nozzle(8 Weighing Scales)
|
|
|
Filling range
|
1-35g(Large gram of weight can be automatically apportion)
|
|
|
Accuracy class
|
≤0.01g
|
|
|
Packaging size/3pcs
Packaging weight:930kg
|
1700*950*2230mm
1220*1300*1000mm
1220*1350*1030mm
|
|
